Package A:Including outdoor camera indoor monitor 10pcs RFID keyfobs one 5 meter cable.
Package B: Including indoor monitor Only. Not including the outdoor camera.
Package C: Including outdoor camera Only. Not including indoor monitor.
Package D: Including DC12V power supply ONLY. If you want to install the electric lock, then connect the outdoor camera and lock to this power supply.
One outdoor Camera can work with max6pcsindoor monitors, if you want more indoor monitors, you can buy Package A Package B (if you have any questions, welcome to contact us)

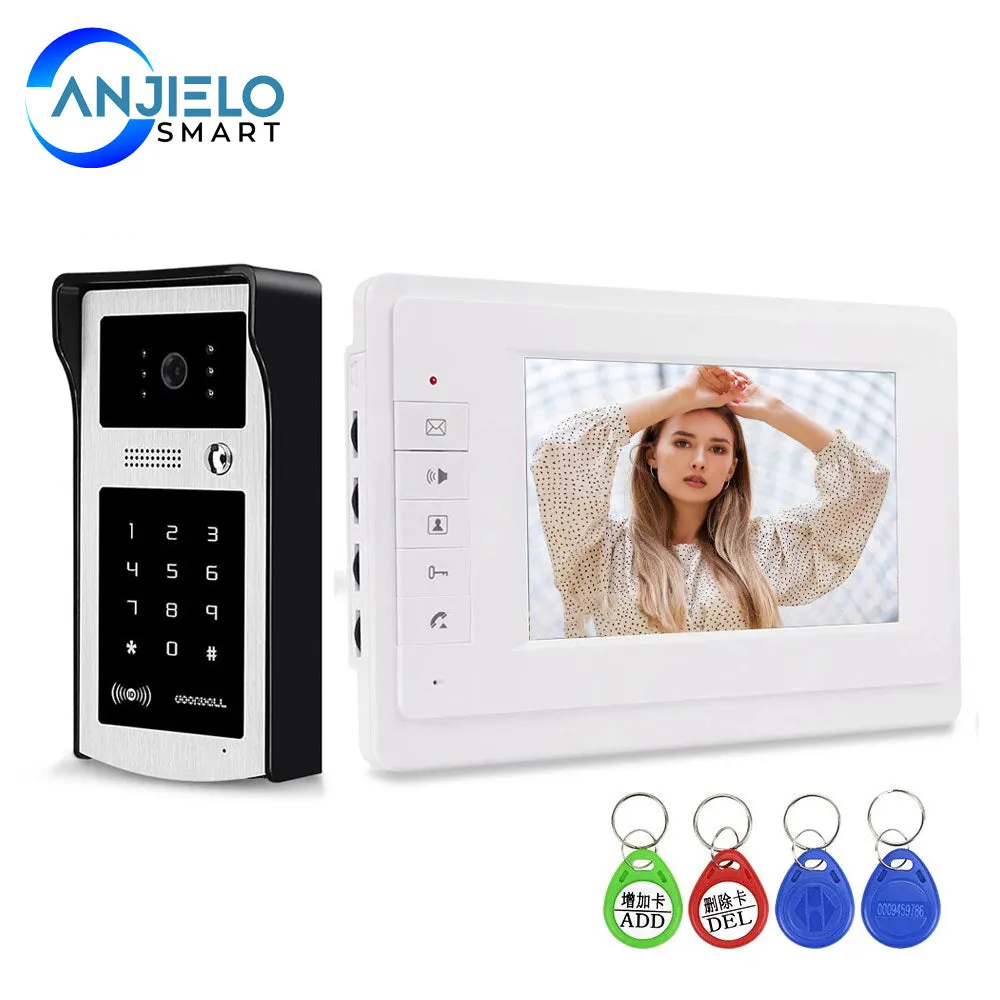

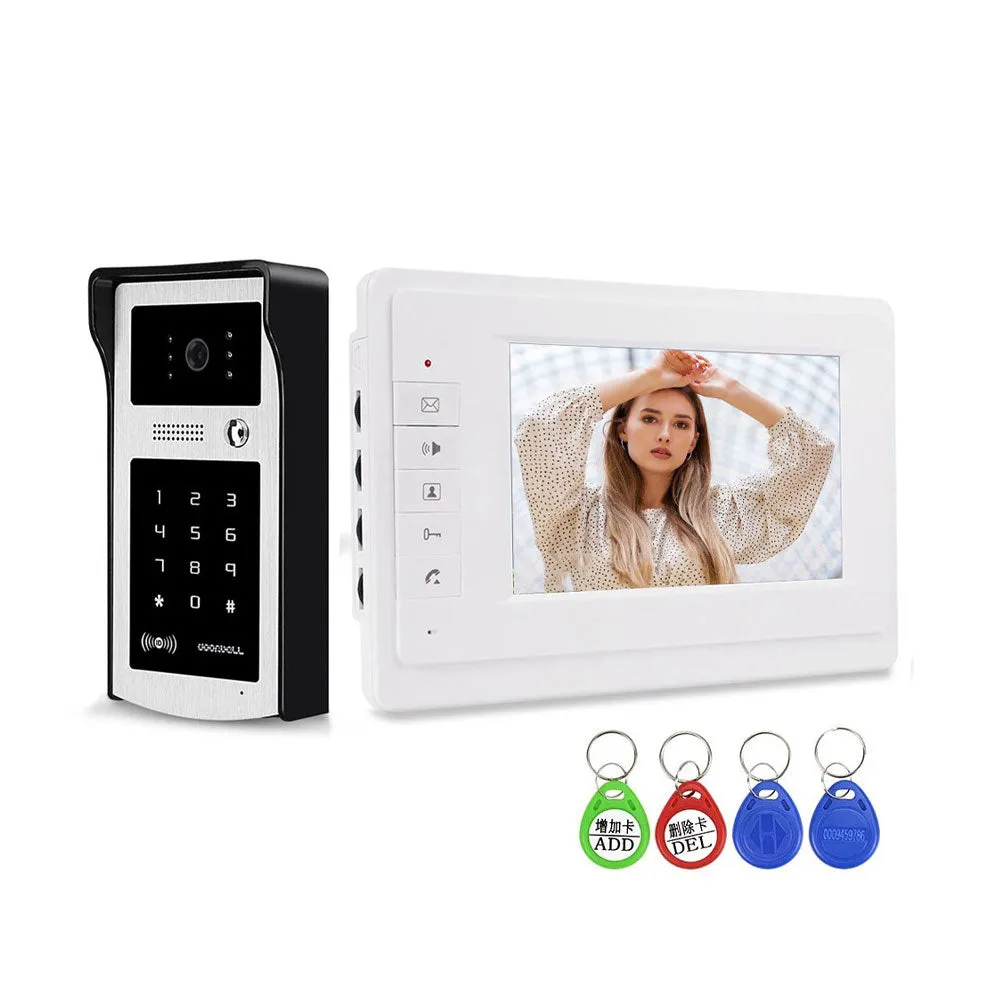

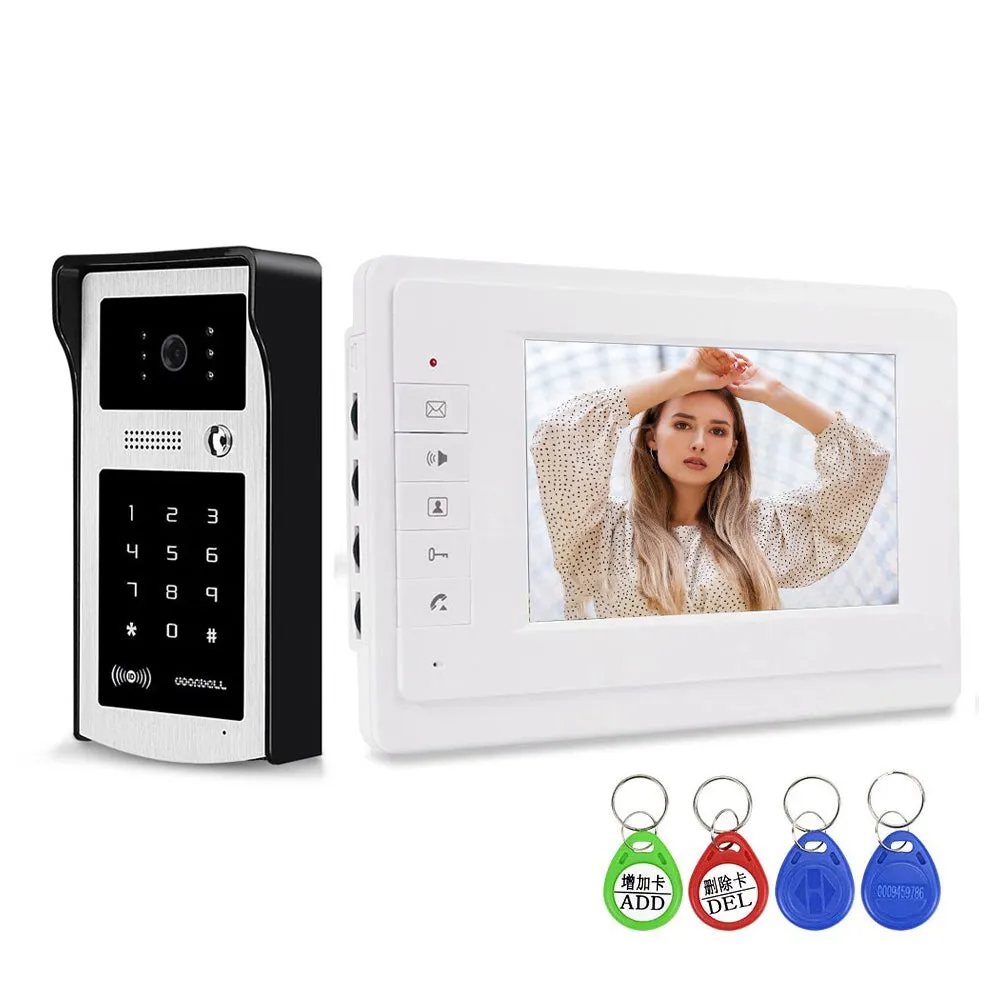

7 inch RFID Password Video Door Phone Intercom System

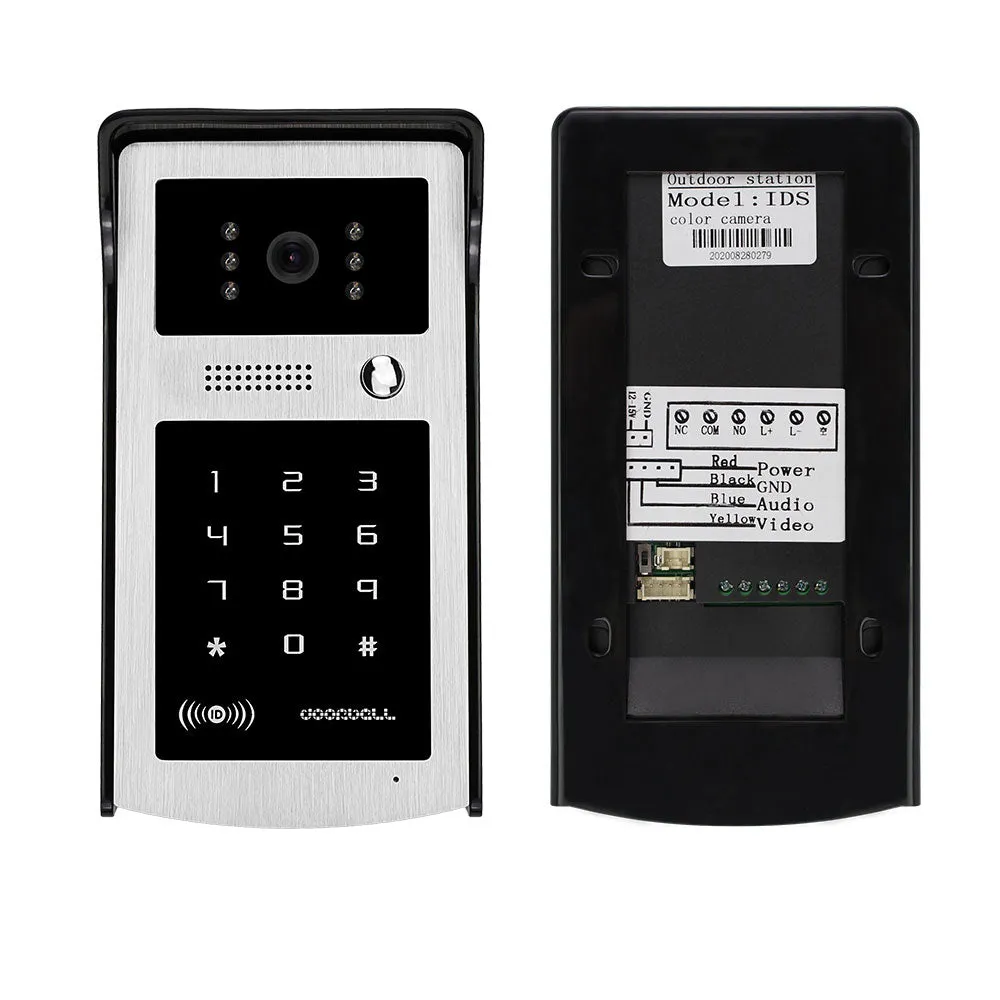

RFID Password Outdoor Camera / Color indoor Monitor
Product Details：

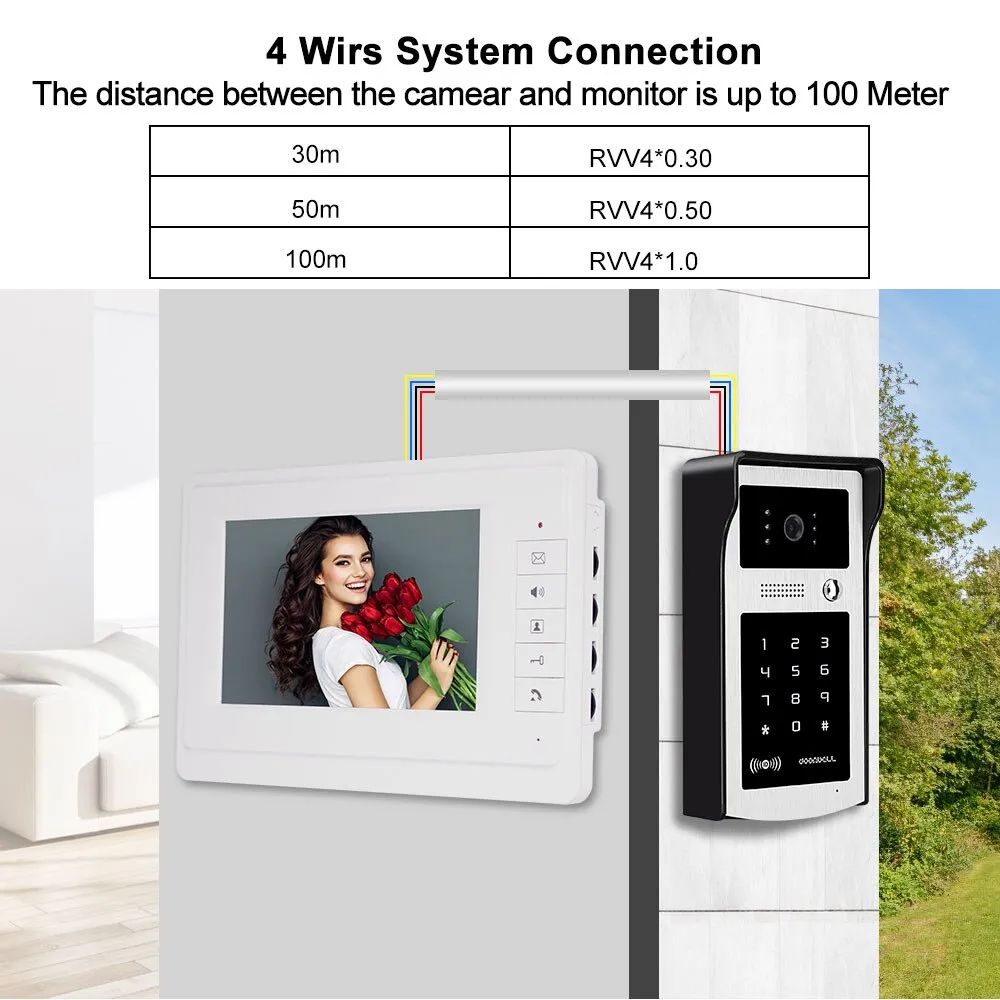

Support max to 100 meters.The max distance between camera and monitor is up to 100 meters. Different distances, use different diameter cables, please check the following form to choose the correct cable.
Using a 4-cores cable to connect the camera and monitor
25 Chord ringtones - free switch
The 25 chord ringtones can be switched freely, elegantly, and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear a voice or hearing it too loud anymore.
Support Handsfree Dual-way Intercom and Indoor Monitoring
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk outside, press the answer button again to turn it off. If you do not press the button after the conversation is finished or if no one answers the call, the monitor will turn off automatically after the 60s.
Support 700TVL IR Night Vision
The outdoor camera build-in 6pcsinfrared LED light. With this function,
you can see outside no matter day or night.
Keep your home safer.

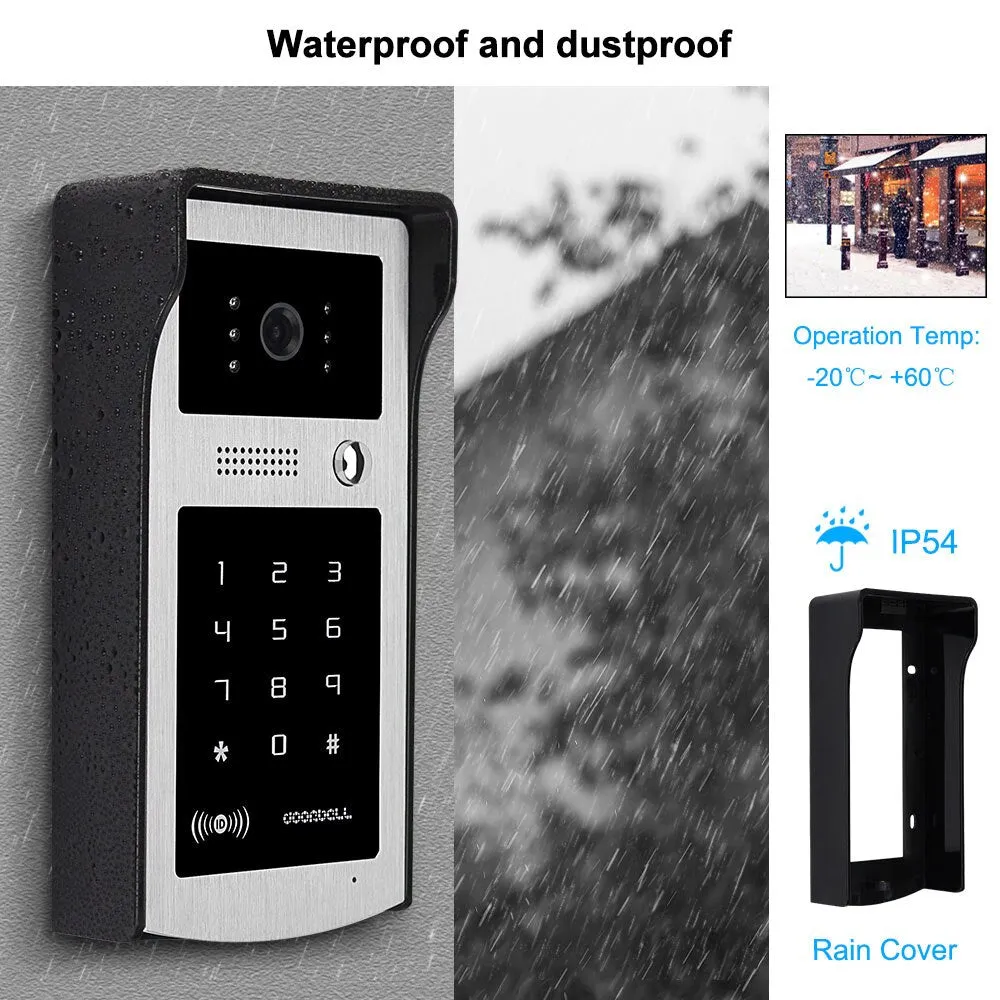

Waterproof and dustproof
The outdoor camera equipped with a weatherproof cover can be used outside even in very bad weather.

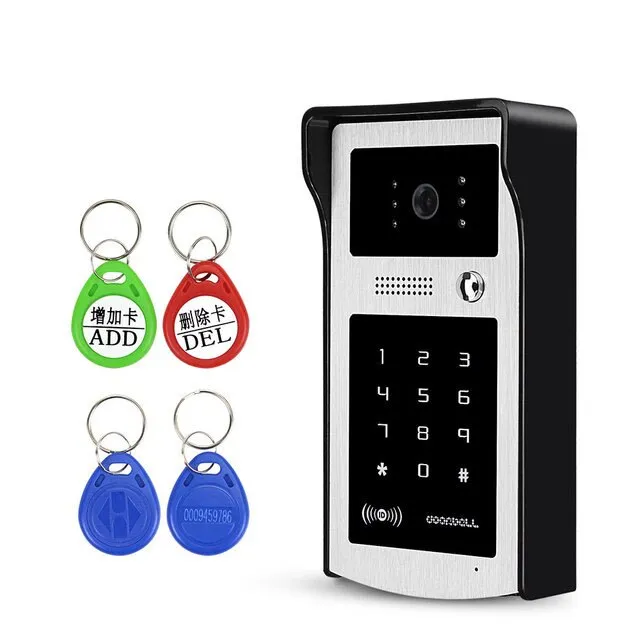

Support RFID Card / Password Unlocking
The camera support500 users. Build-in an RFID reader.You can open the door with the 125KHz RFID EM key card or Password to open the door from outside.

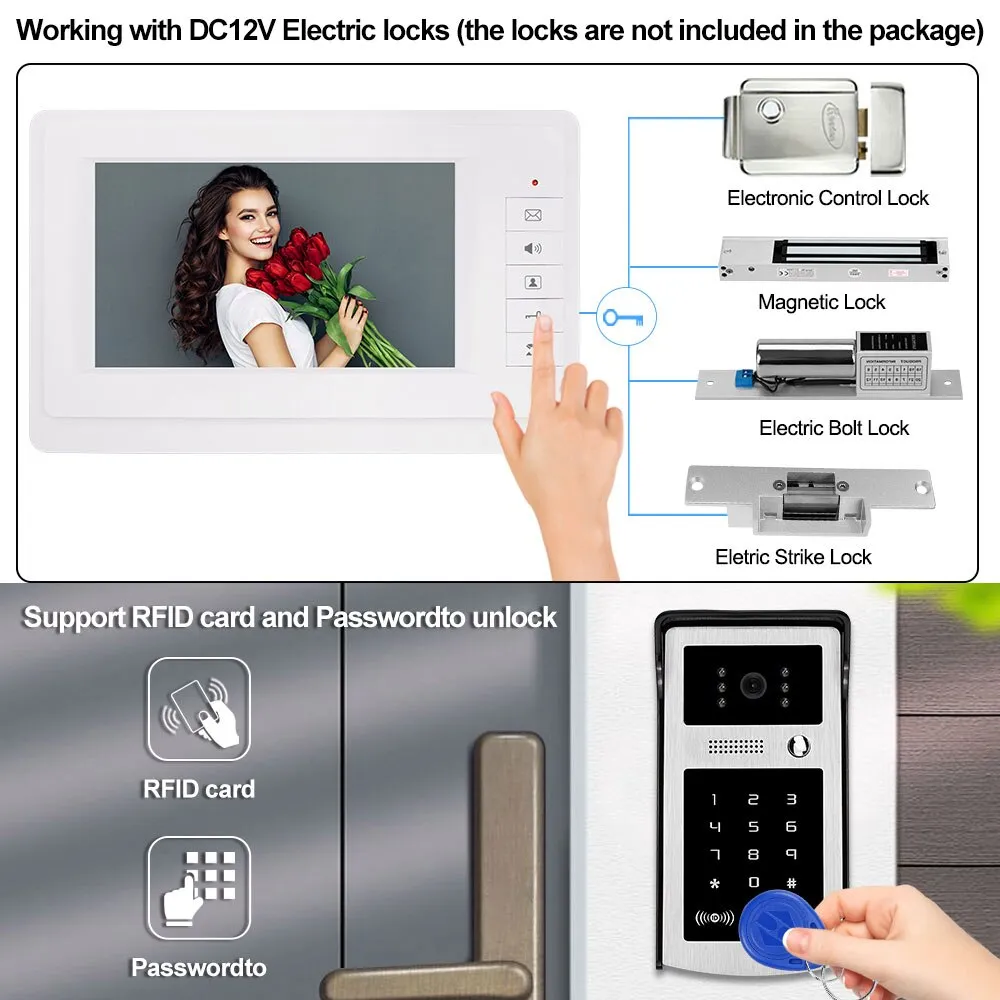

Unlock with Indoor Monitor (Screen)
This video intercom system can work with the electric lock. You can open the door with the indoor monitor. Don't need go to open the door for your visitor. Very convenient!
(Note: The electric locks are not included in the package, need to buy extra)
Product Analysis：
Product Specifications
|
Outdoor Camera |
|
|
Camera Resolution
|
700TVL |
|
Night Vision |
Up to 2 meters |
|
Working Temperature |
-35 °C ~ 55 °C |
|
View angle |
85 to 92° |
|
Waterproof |
Come with a waterproof cover |
|
Dimension |
98mm(L) x 185mm(W) x 35mm(H) |
|
User Capacity |
500 user cards |
|
Material |
Metal, Aluminum wire drawing |
|
Wire System |
4 Wire system |
|
Model |
XSL-IDS |
|

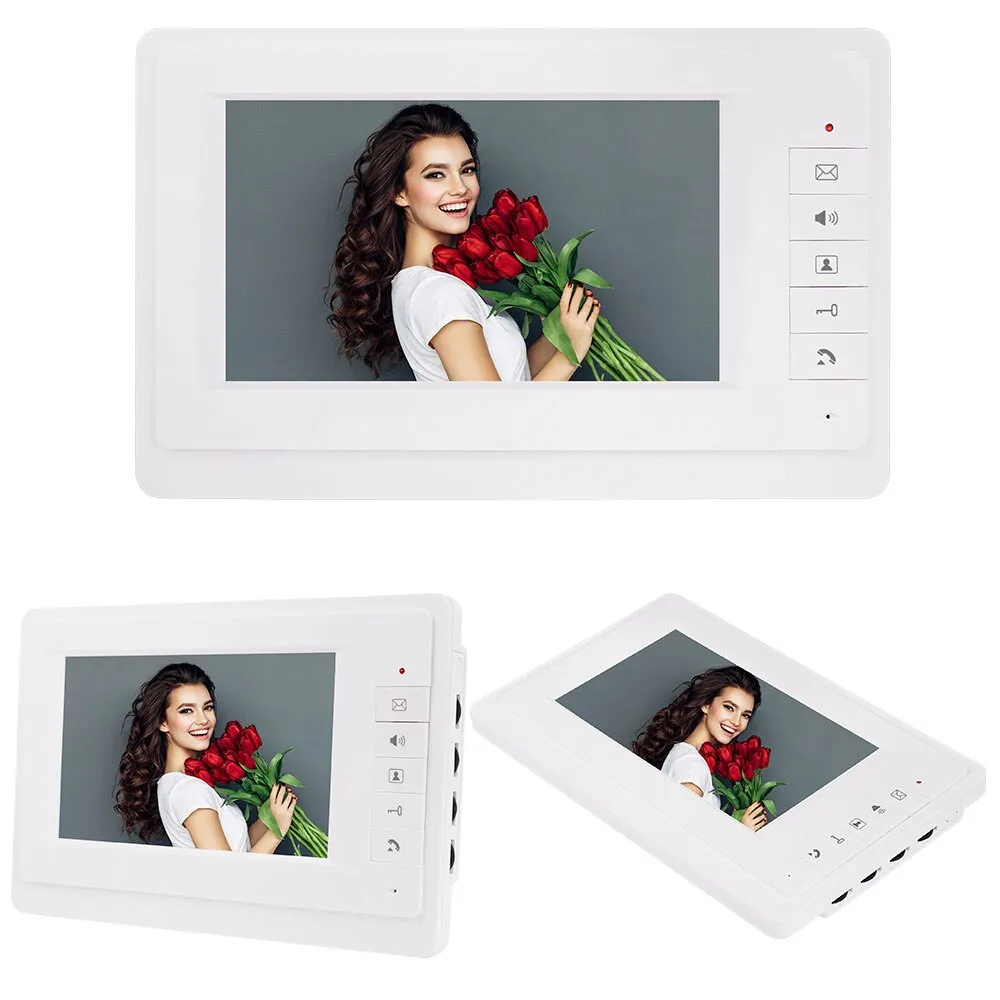

Indoor Monitor |
|
|
Screen |
7" color TFT-LCD |
|
Effective Pixels |
800 x 480 |
|
Wiring |
4-wire pin end |
|
Room to Room Intercom |
Yes |
|
Adapter Input |
AC100 - 240V 50-60HZ |
|
Adapter Output |
DC 15V 1500mA |
|
Case |
ABS Plastic |
|
Working Temperature |
-35 °C ~ 55 °C |
|
Installation |
Wall-mounted |
|
Dimension |
235mm(L) x 150mm(W) x 23mm(H) |
|
Function |
Intercom, monitor, unlock the door |
|
Model |
XSL-V70F |
Wiring diagram
Wiring Diagram1:
Using the 4-core cable to connect the outdoor unit to the indoor unit.
Using the 5-core cable to connect the indoor unit to the next indoor unit.
Wiring Diagram2:
(The NO type lock can be connected to the camera directly. But the magnetic lock, Strike lock, and bolt lock need to be connected to an extra DC12V power supply.
Both of the locks, power supply, exit button are not included in this package. If you need it, please contact us.)
Very Important: Please leave us a message about which type of power plug you want, if you do not leave us any message, we will send EU type by default.
