Notice:
Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System ,Please Contact Us For Technical Support Before Buying.
We ship Russian intercom to Russian Federation, Ukraine, Belarus, Kazakhstan,Uzbekistan, Lithuania, Kyrgyzstan, if you are in one of these countries but want to get English intercom, please let us know before shipment.
Others countries we did not mentioned, will ship English intercom by default, if you want Russian intercom, please let us know before shipment.

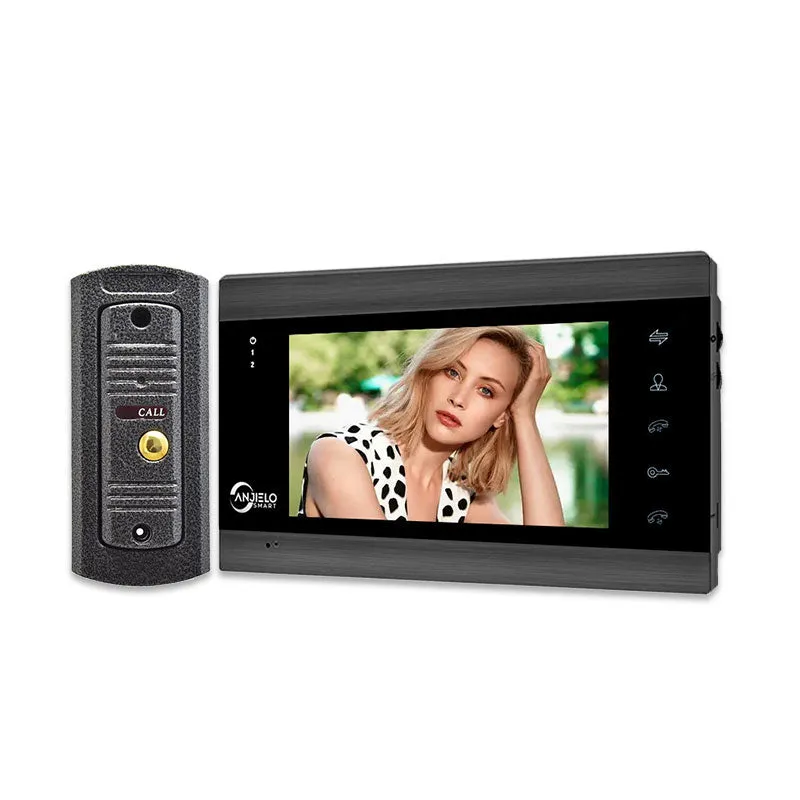

Wired Video Intercom M706 Series , Support Motion Detect Record
Provide English version / Russian Version
If you need built-in power monitor ,welcome to contact me
1.Motion sensor detect record videos
2.Dual-way Intercom, call transfer among monitors
3. Monitoring outside without pressing doorbell call button
4. 6 Languages: English / русский / Español / Le français / عربى / Japanese
5. Color, Brightness,Ringtone and Volume Adjustable
6.Support analog camera connected, electronic lock connected
7.Support images / videos playback, support external maximum 32GB memory card
8. Doorbell camera / CCTV Camera preview
9. IR night vision
10. The intercoms will automatically turn off the screen after stopping the operation for 1 minute to save electricity!

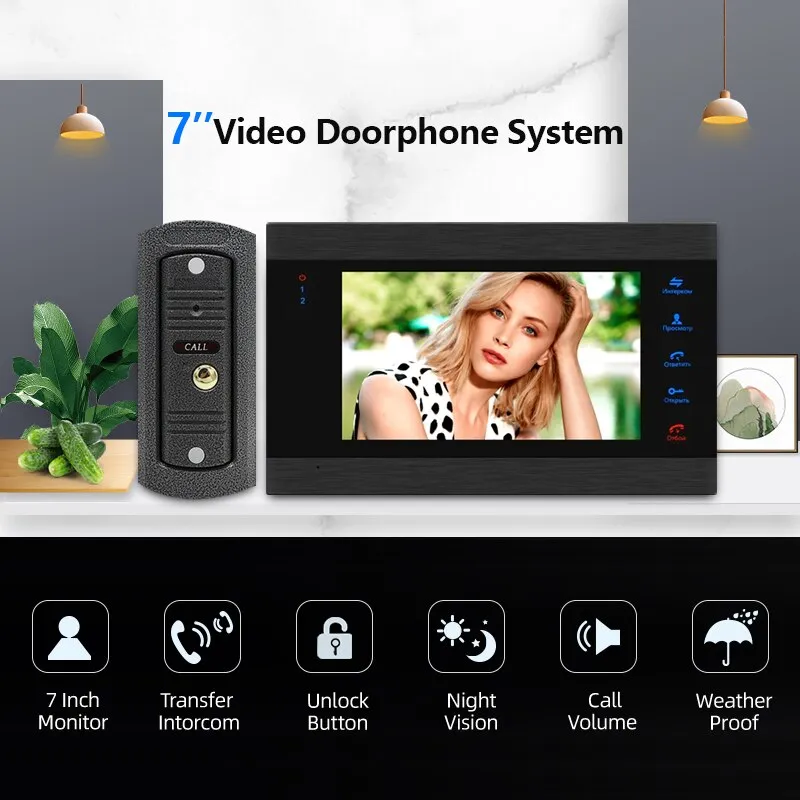

7” Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

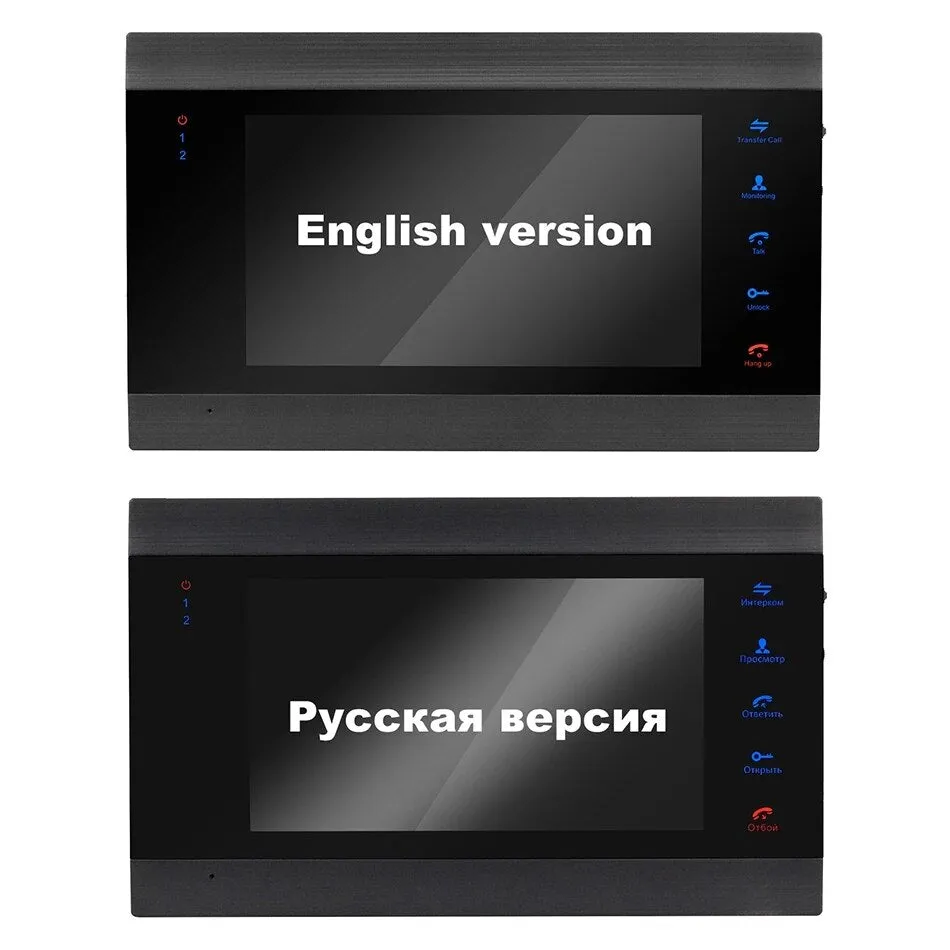

Two language panels are available
English and Russian panel for option, please leave messages tell us about your choince.Russian Version and English Version have same function.
M706 Series - Product Specs :
Monitor 7" wide color HD TFT LCD ,16:9 Display
Resolution 800X480
Memory Built-in memory can save 80 pictures, support external max. 32GB SD card
Intercom mode Hands-free dual-way communication
Delay calling time 120s
Keypad touch sensor button
Power input External power DC12V
Power Consumption Standby:1W; Working:5W
Material Acrylic Wire Drawing Panel
Recording picture:jpeg format;video:avi format
Operation Temp. -10degc 60degc
Installation Surface mount

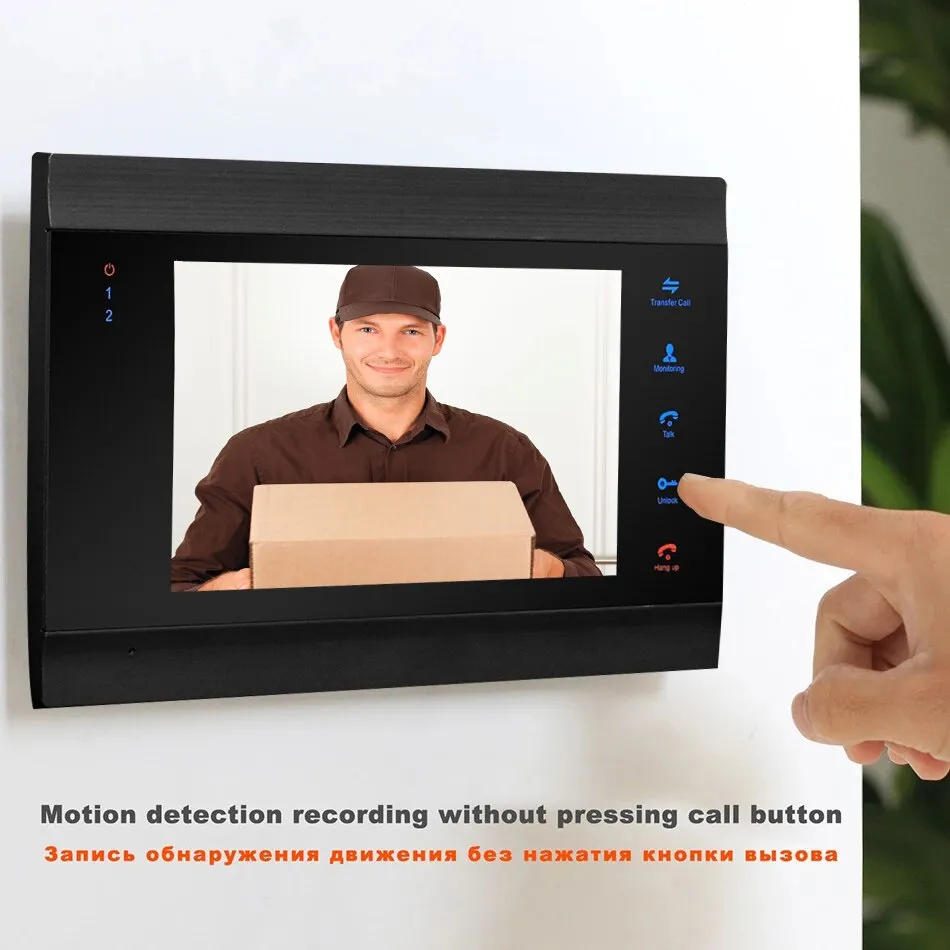

Motion Detection Recording Videos to Memory Card
support monitoring outside without pressing call button
Support 32GB External Memory Card

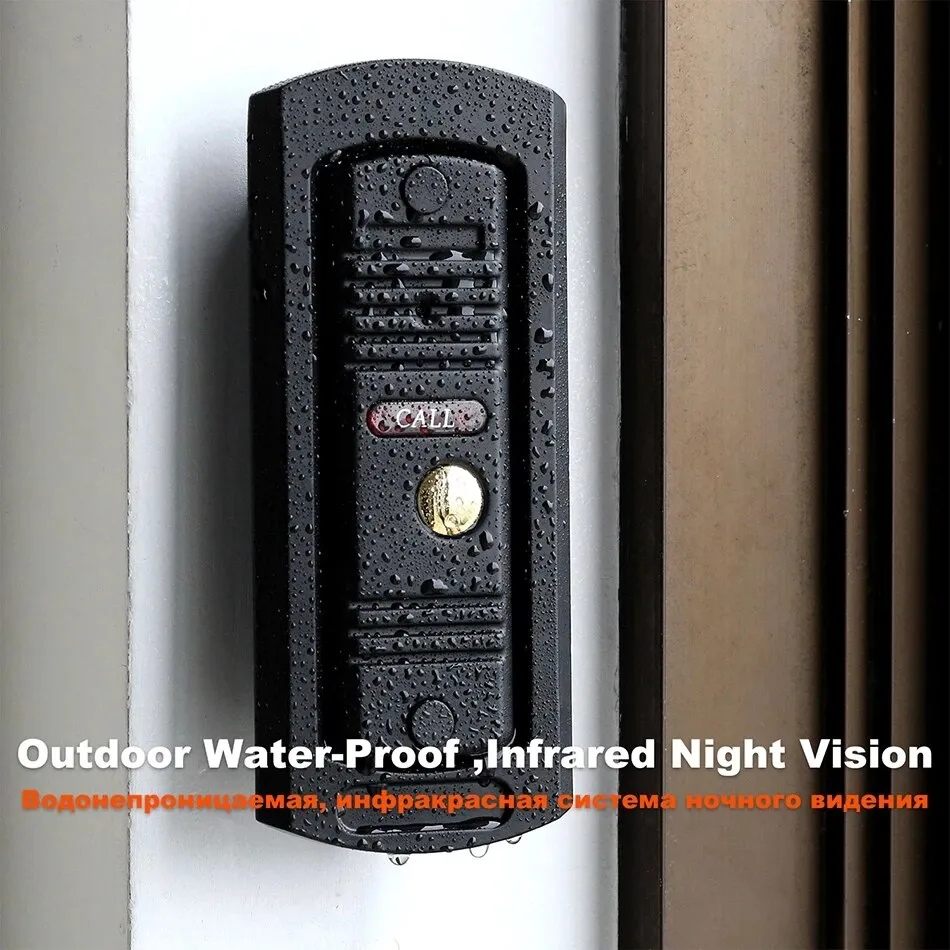

1200TVL Outdoor Waterproof Doorbell
Camera sensor 1/4" CMOS , 1200TV-Line
Lens Angle 78 degree
Night Vision IR light
Electronic lock support
Power Consumption 200mA Max.
Material aluminium alloy panel
Waterproof IP65
Operation Temp. -40degc 60degc
Installation Wall mounted
2 ways to install
1 monitor could be connect 2 doorbells and 2 cameras
Dual-way Intercom, Call Transfer Among Monitors
This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

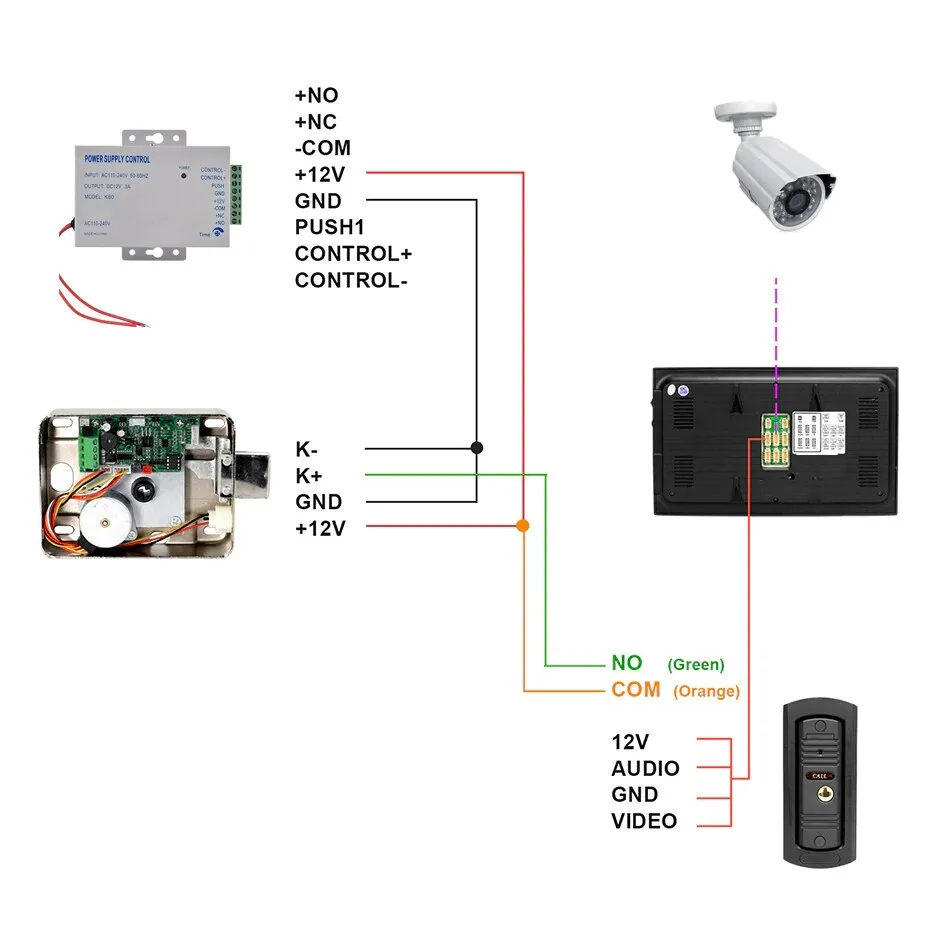

Wiring diagram
Two different power supply for the monitor
Built-in power and external power adapter, please leave messages tell us about your choince.
Installation Method and Diagram
Connection Diagram
PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).

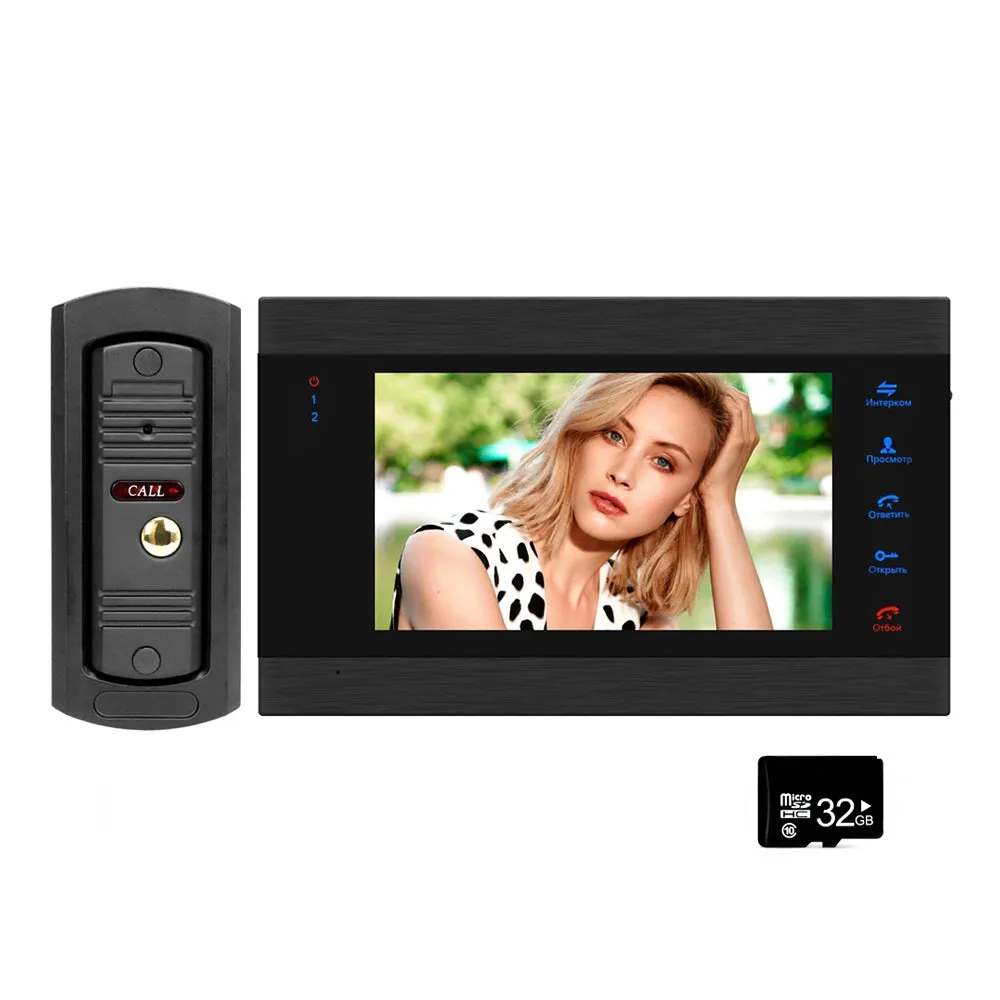

Accessories in Package：
Please Notes：The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)
