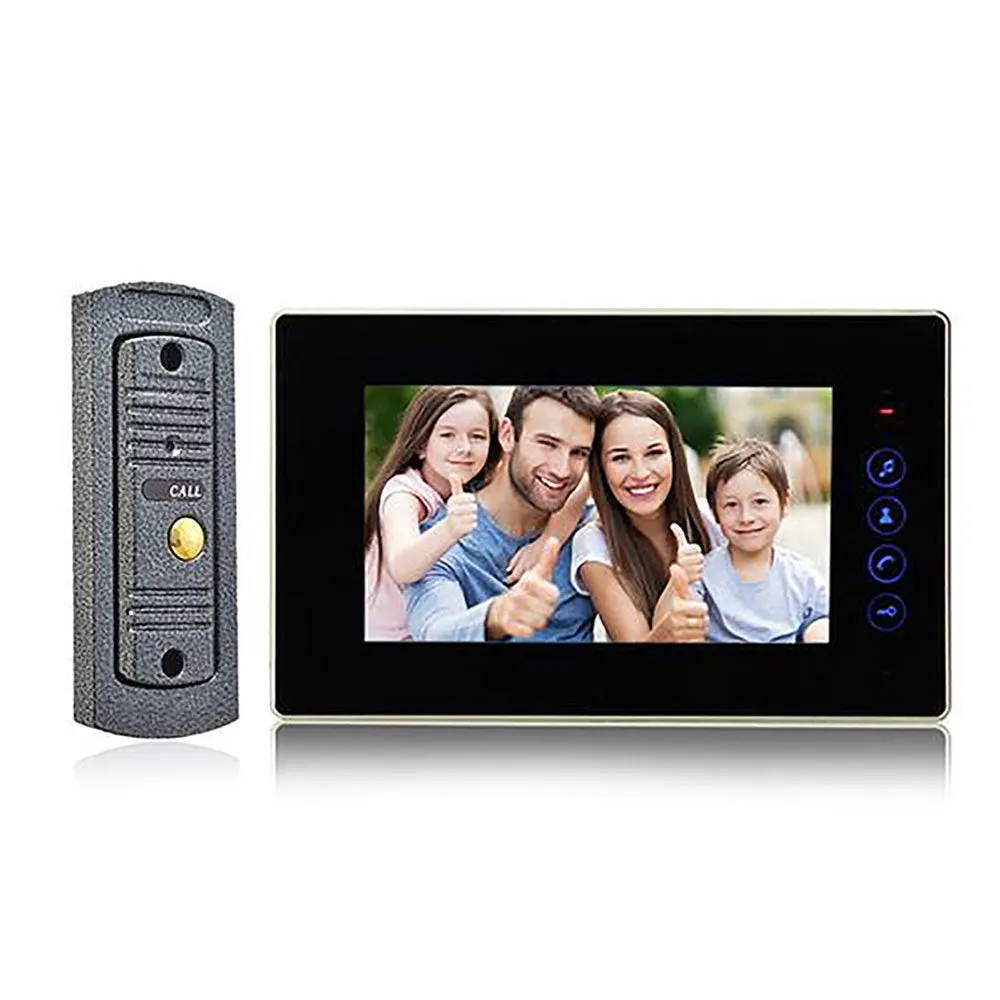

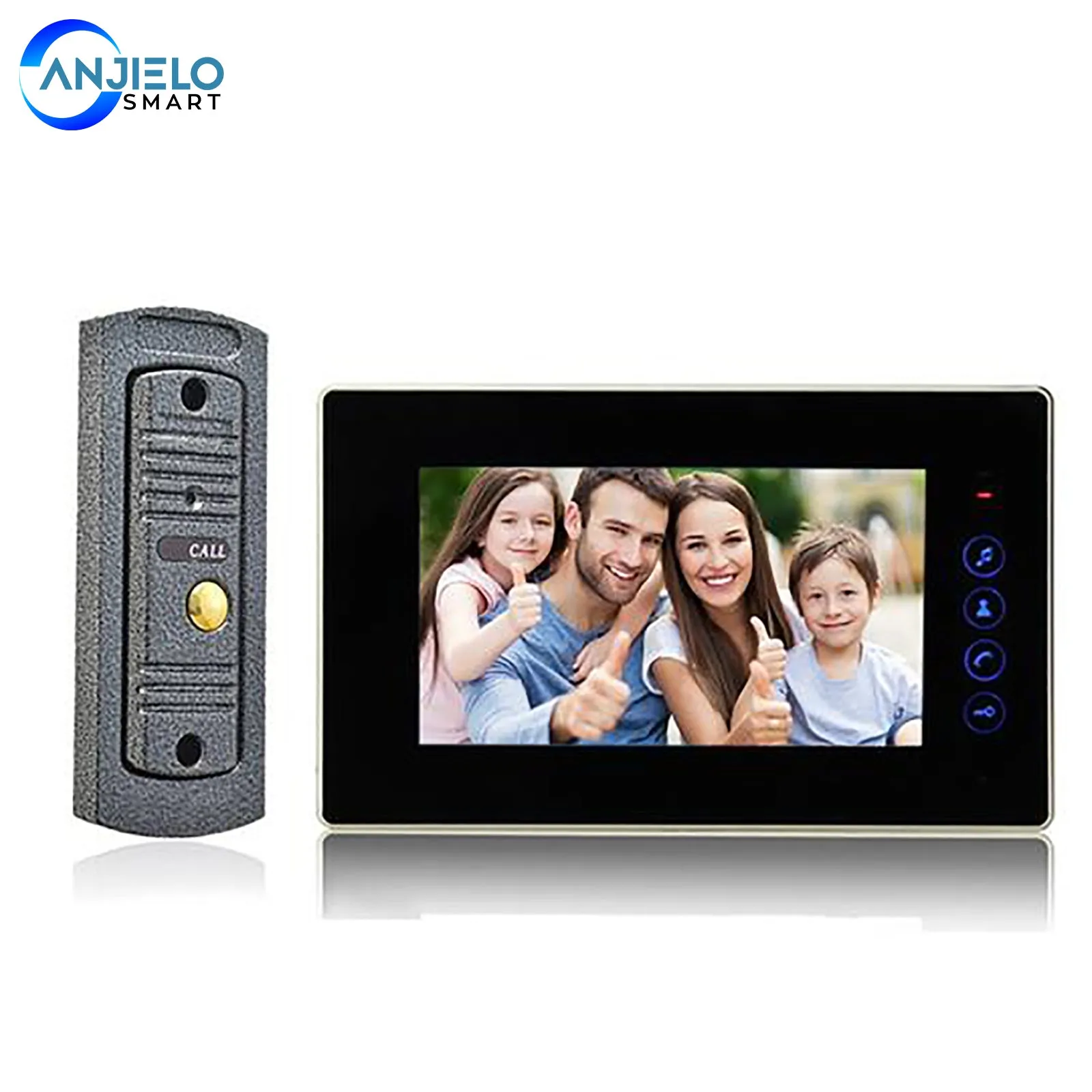

7 inch LCD Color Screen video door phone intercom system
700 TVL HD Mini Camera, Clearer Video!
7 Inch Color Screen!

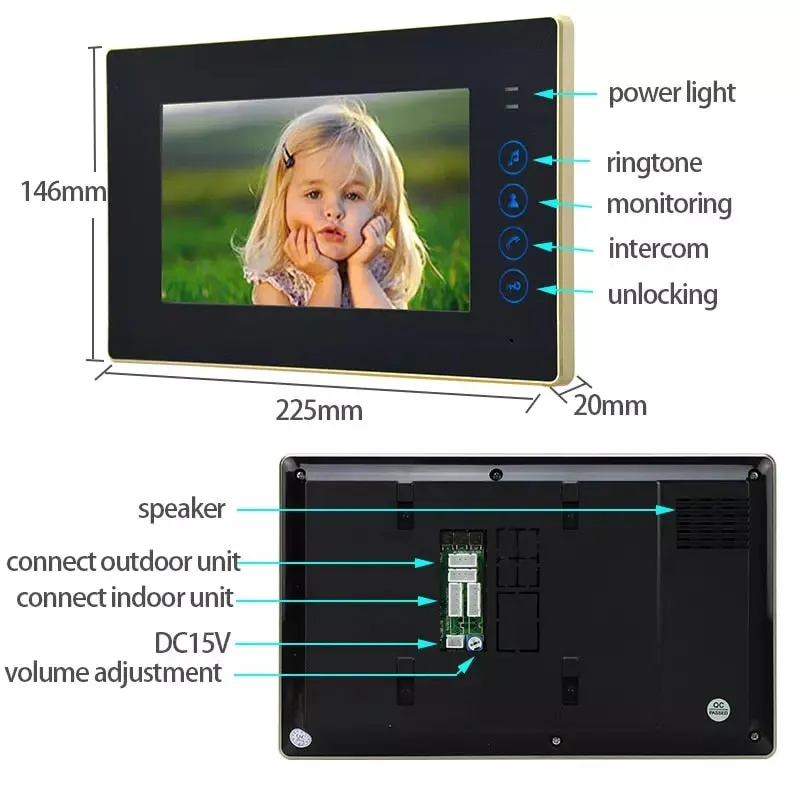

Indoor Unit
Dimensions：225mm(W)*146mm(H)*20mm(D)
Screen size:7inch TFT LCD
Display scale:16：9
Resolution:800*480Pixel
Ringtone:24 chord tones
Power consumption:standby<1W,work<6W
Input voltage:AC100V-240V～50HZ/60HZ
Power supply: DC15V
Conversation delayed:120S±10%
Monitor delayed:40S±10%
Operating temperature:-20℃～ 60℃
Relative humidity:10%～90%（RH)
Installation:wall-mounted
Material :ABS
Connection Type:wired
Button:Touch button
Function:monitoring、intercom、unlocking
The monitor is equipped with7" a high-resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people outside can also talk to you. This2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefits from this video door phone system. Besides, both the outdoor unit and indoor unit have a good appearance and modern design. There is an important function compared to the old version.

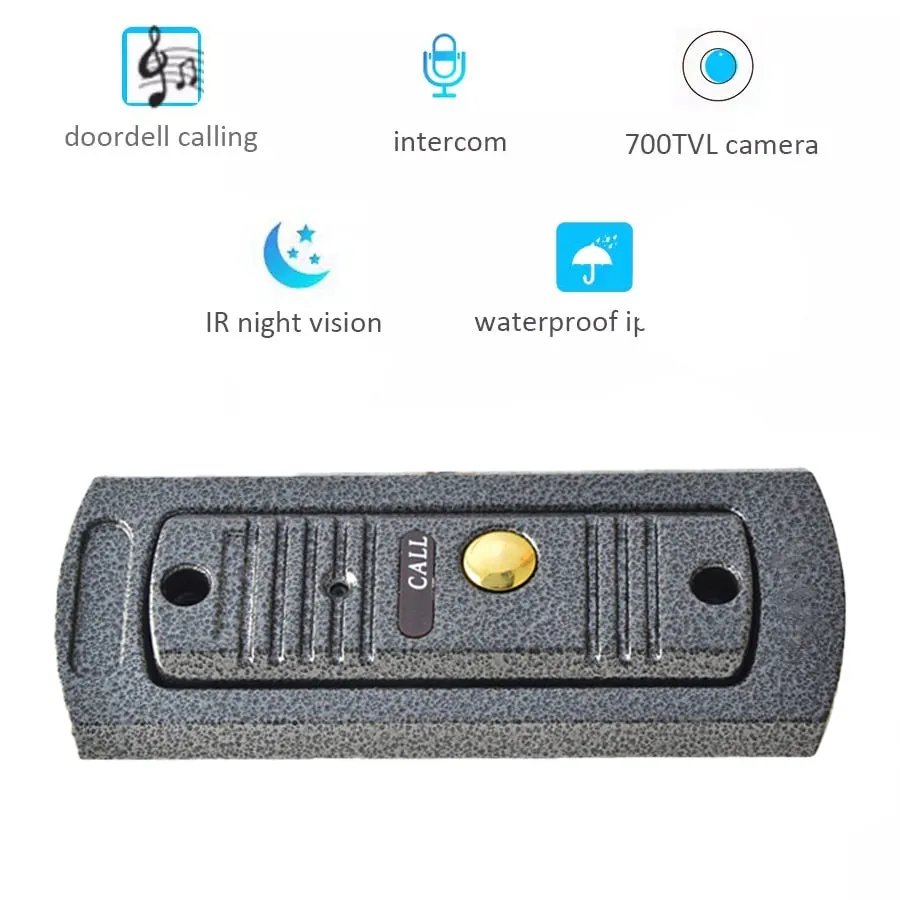

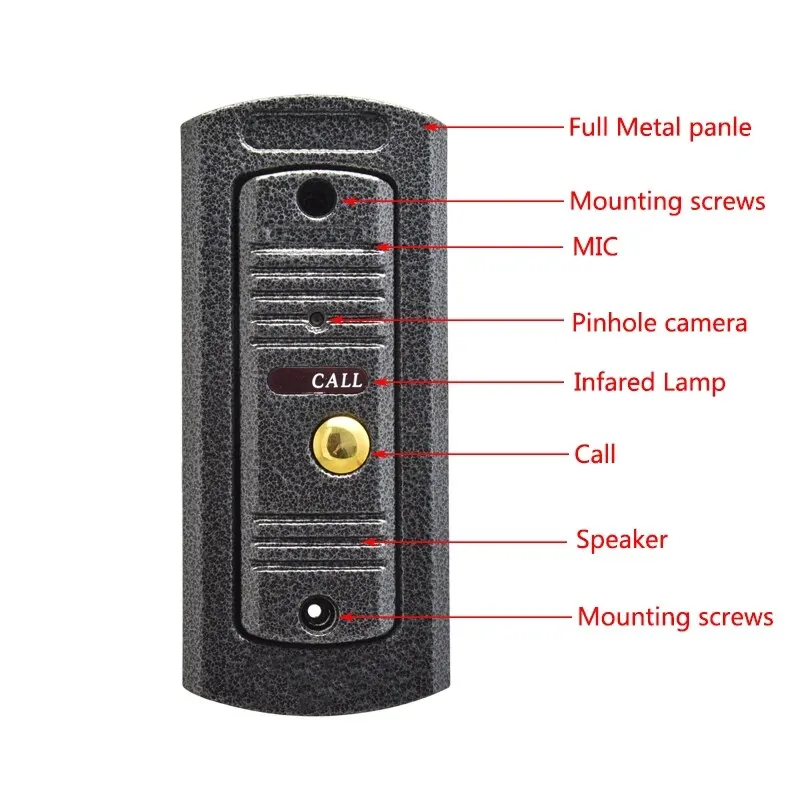

Outdoor unit
Dimensions：72mm(W)*160mm(H)*24mm(D)
Image transmission distance: approximate 200 meters
Night vision: IR night
Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Resolution:1000 TVL
Visual angle: 92 degree
KW: <2W
Power: DC 12V-15V (provided by the indoor unit directly)
Camera : High definition and colorful CMOS/CCD(default CMOS)
Outdoor infrared night vision function: 10 LUX infrared
Operating Temperature:-25℃～ 60℃
Outdoor unit installation method: surface mounting
Electric lock: support
Material: aluminum alloy
waterproof: IP65
This system is hands-free and available for dual-way communication. Simply press the "intercom" button on the monitor for communication between the indoor monitor and the outdoor camera, can also press the "unlocking" button to open the door.
If you need more indoor monitors in your house, you can connect the monitor to monitor by 5-core wires in a series. In this way, multi families can share the same outdoor call panel and each family can have a maximum of 3 indoor monitors. and you can communicate between monitor and monitor.
Press the" monitoring "button on the indoor monitor to know what is going on outside. you can also press the "intercom" button to activate the intercom with somebody next to the outdoor camera. the screen will be off automatically in 40 seconds or it can be powered off by pressing the"intercom" button once.
High definition and colorful 1/3" CMOS camera,
3.6MM HD lens and IR LEDs,
IR sensor, turn On/off IR LEDs Automatically
So you can see any visitor clearly even in the dark night.
Many other functions
- Adjustable Bright /contrast/color/ringtone volume
- Mute function
- Waterproof, Anti-thunderstorm Design
- Easy To Install And DIY Installation
Note: Your door is an electrically controlled lock that can be directly connected to the outdoor unit to unlock the door, if you are installing a mute lock or electromagnetic locks, please access the power connection of the outdoor unit. Thank you.
The cables are very easy to be found in your local market as they are international standards.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough, Not pure copper, it will cause many problems, please check the wiring requirement.
What's inbox
indoor unit
outdoor unit
mounting bracket
user manual
2P lock wire
4P test wire
screw kit
15V power adapter
