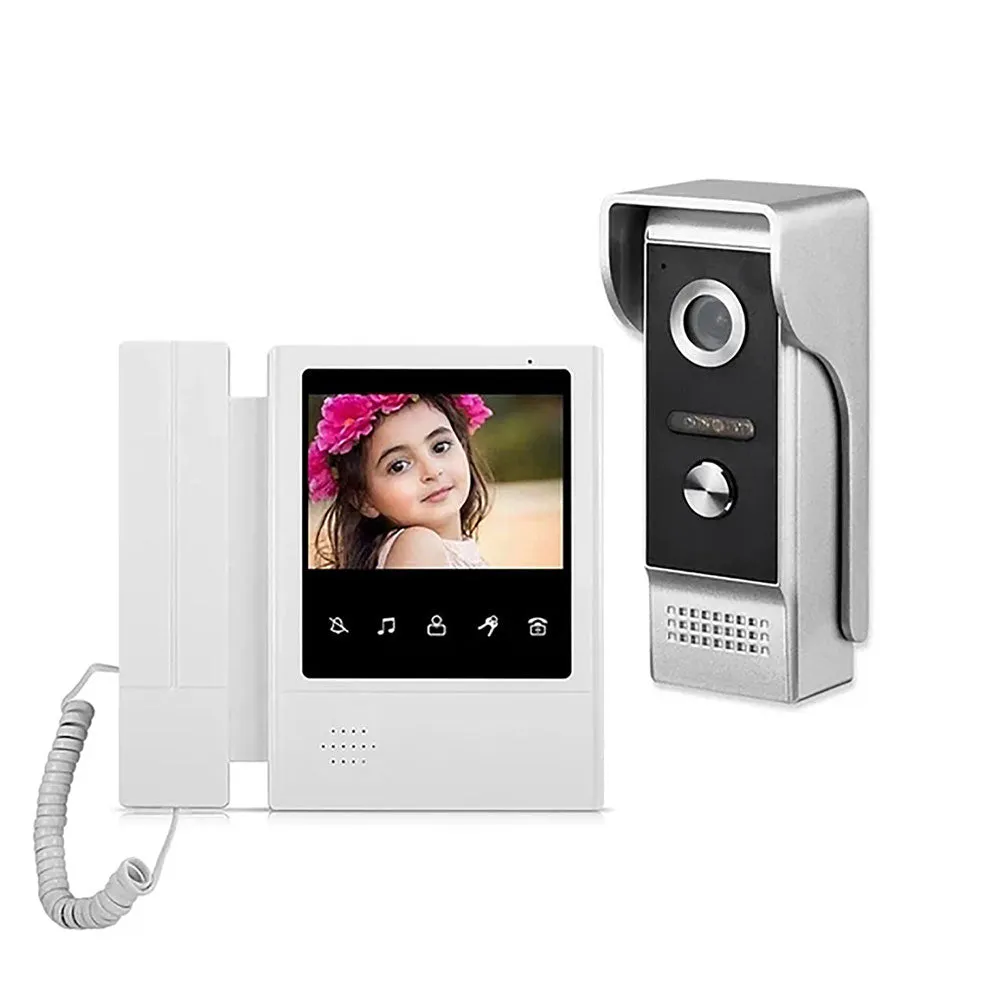

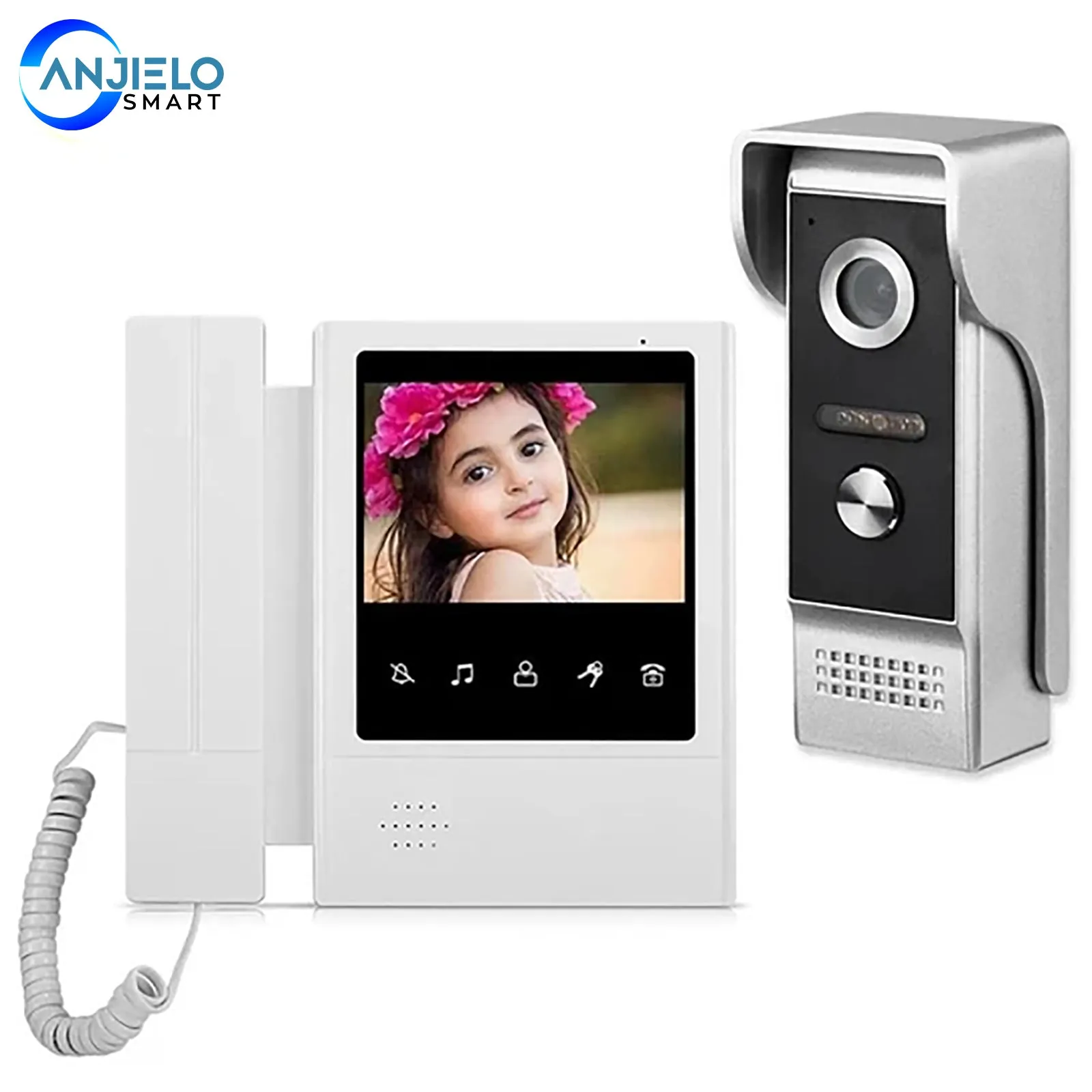

4.3 Inch Color LCD Video Door Phone with 1 IR Camera 1 Touch Monitor
Description
Colorful Video Intercom has an outstanding value in the intercom and doorbell market. It comes complete with a comprehensive set of video door communication tools, including a security monitor, camera, intercom, and other accessories. With the 4.3'' high-resolution color TFT LCD and IR camera, the picture is very clear even at night.
What is more, the outdoor camera is made of aluminum alloy which is antioxidative and whose appearance is very beautiful. Besides, it's very easy to install with the user manual. The color video door phone kit will surely satisfy your requirements with proven technique, stable and outstanding performance. The details will be shown as follow.
Features:
- 700TVL CMOS sensor, clearer pictures displaying.
- 4.3-inch touch screen, high definition and sensitive, easily see the real-time images.
- With functions of two-way intercom, unlock real-time surveillance, rainproof and night vision.
- 25 kinds of music ring optional.
- Real-time outdoor surveillance for home security.
- For the indoor monitor, quality PMMA and ABS material, for the outdoor monitor, zinc alloy and PMMA material, durable in performance.
Specifications:
- Display: 4.3inch TFT LCD screen
- Resolution: 800*480
- Image Sensor: 700TVL CMOS
- IR LED: 4pcs,Camera Lens: 3.6mm
- Camera Angle: 90°
- Infrared Distance: 0.2—1.0m(optimum)
- Ring: 25 songs(optional)
- Installation: Surface mounting
- Indoor monitor Power supply: Input AC100-249V Output: DC 15V 1500mA
- Indoor Monitor Material: PMMA ABS
- Outdoor Camera Material: Zinc alloy PMMA
- Outdoor Camera Working Temperature: -20 60°
- Indoor Monitor Size: Approx.19.4*18.4*3cm
- Indoor Monitor Weight: Approach.465g
- Outdoor Camera Size: Approx.12.7*5*4.4cm
- Outdoor Camera Weight: Approach.234g
Package List:
- 1 x Indoor Monitor
- 1 x Mounting Board for Indoor Monitor
- 1 x Outdoor Camera
- 1 x Connection Cable
- 1 x Bag of Mounting Screws
- 1 x Power Adapter
- 1 x User Manual
Details
The display image is very clear with a 4.3'' high-resolution colorful TFT LCD and IR camera. The clear picture will surely satisfy your requirements， The 25 chord ringtones can be switched freely, elegantly, and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear a voice or hearing it too loud anymore.
-

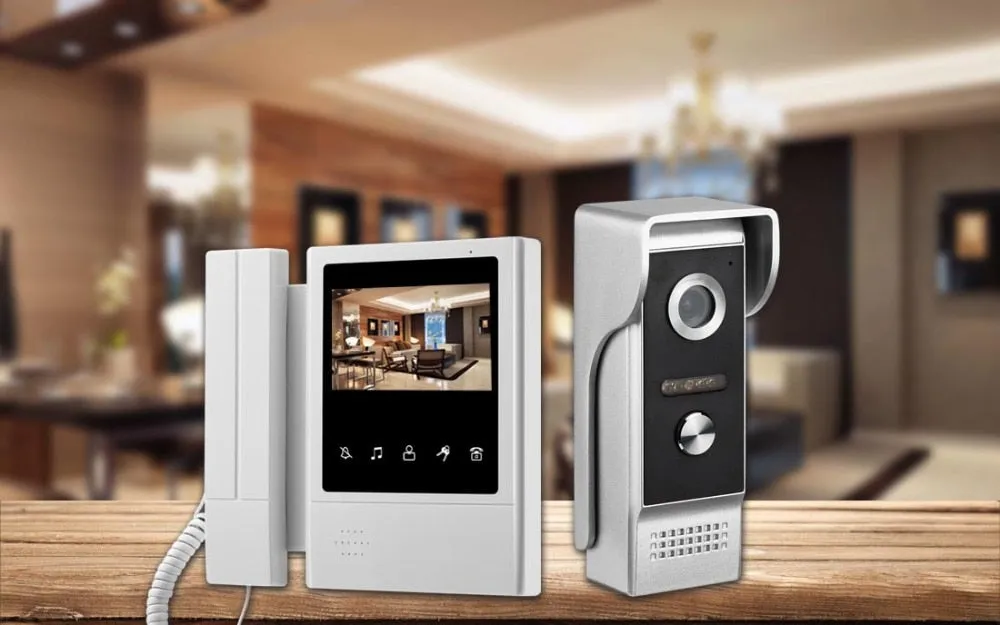

Collocation telephone set panel build-in 4.3-inch screen indoor monitor, fashionable and luxurious

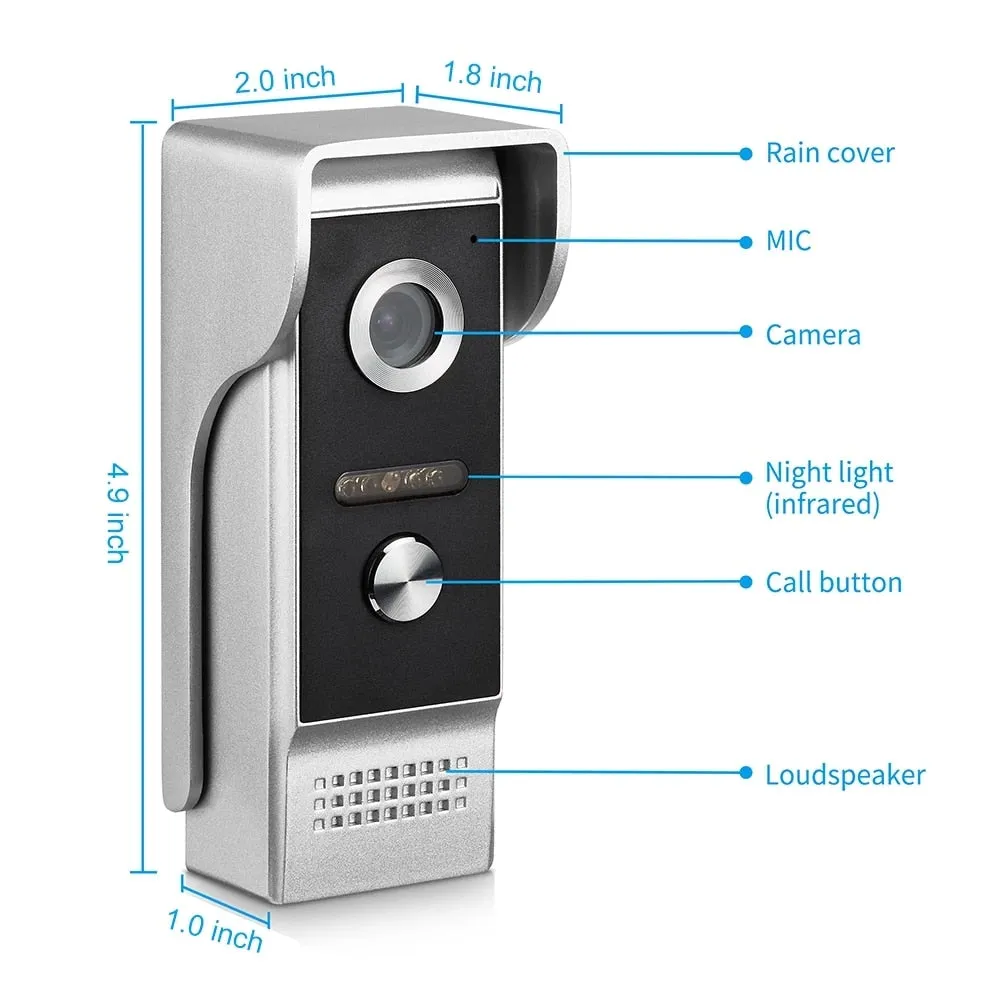

The outdoor camera can be built in a rainproof cover to prevent rain. You needn't worry about the outdoor camera would be wet on a rainy day. An outdoor camera with clear night vision can monitor and capture images in a low-illumination environment.
Furthermore, the aluminum alloy panel not only looks fashionable and luxurious but also helps to be antioxidative.

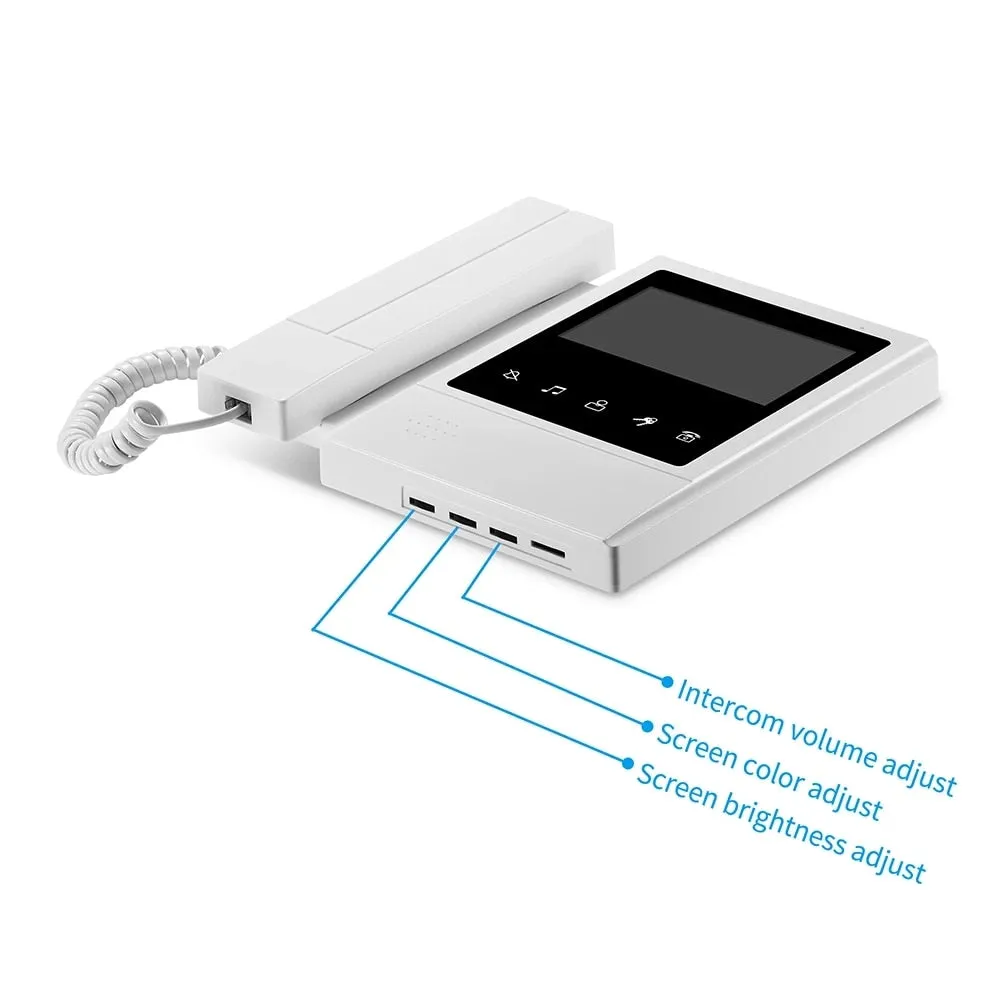

The Volume, brightness, and chroma can be adjusted to meet your needs. Besides, there are music rings for your selection.
-

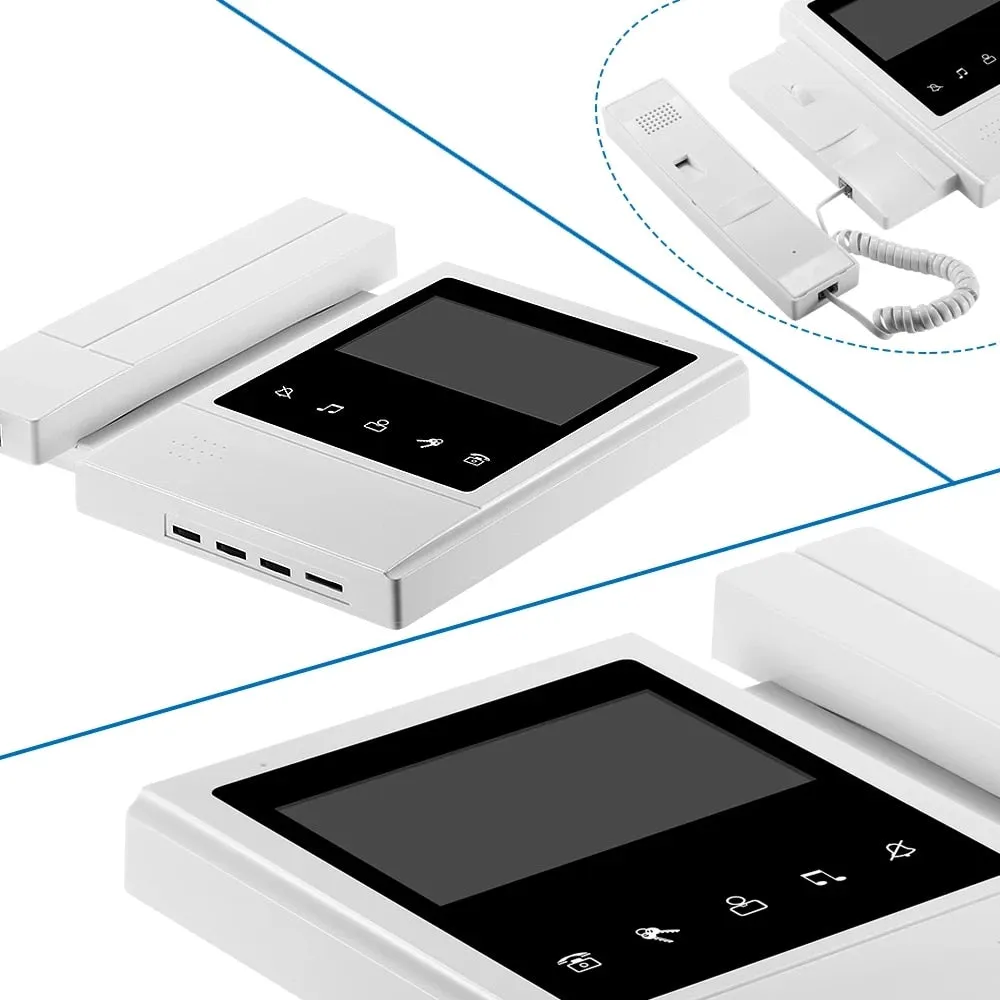

The easy installation also is one of its advantages, which most customers care about. The mounted design of this item makes it very easy to be installed and used. The back-hang design is another advantage, which makes the monitor easier and more convenient to install anywhere you like.
Dual-way intercom and indoor monitoring

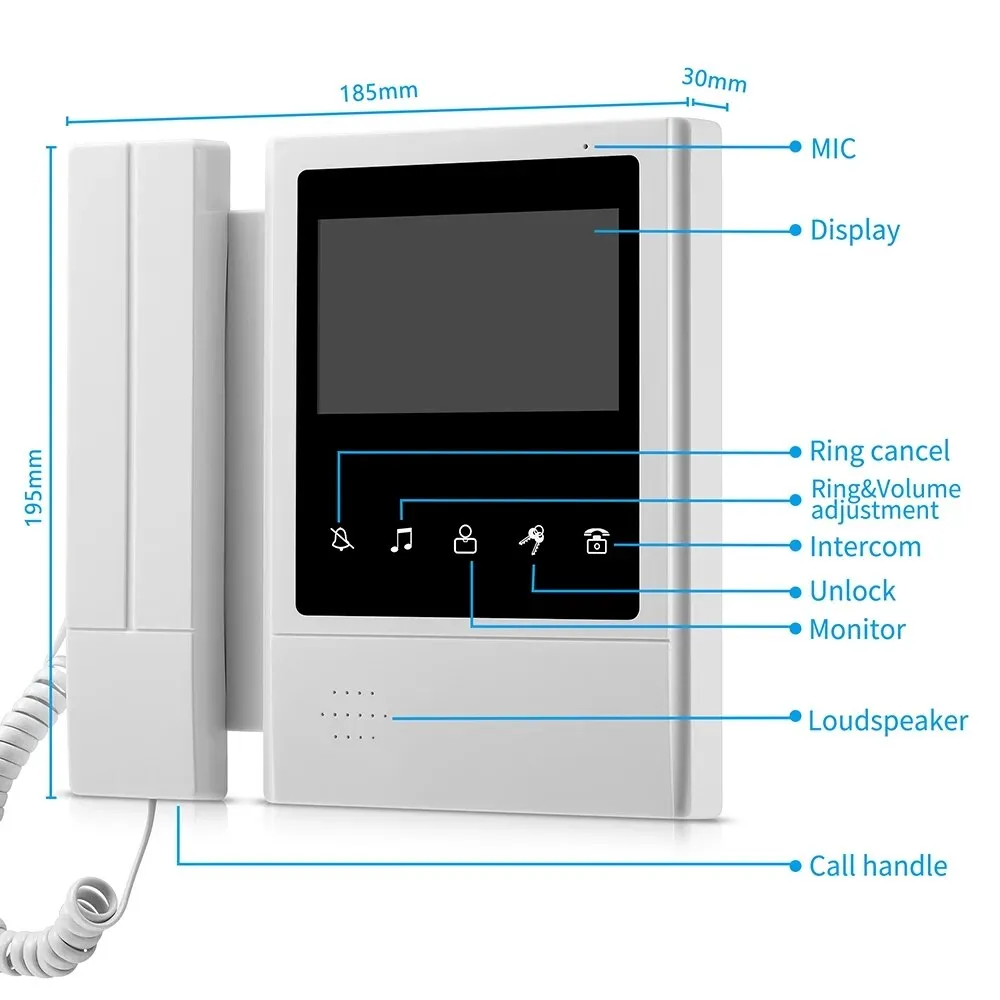

When someone presses the call button on the outdoor unit, it will activate the indoor monitor, the monitor will turn on, ring, and show the video outside. So you can see who is outside, a postman? a neighbor? a salesman? an old friend? or a burglar? Then you can press the response button on the monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion. When the monitor is in standby mode, you can see what's going on outside by pressing the monitoring button.
IR for Night-vision, allows you to see color images at night
Most video door phones in the market have night vision features but are not intelligent. Some use infrared lights, you can only see black/white images at night(Not clear image); some use white light led, the lights will turn on once someone presses the call button even during daytime(not humanized).

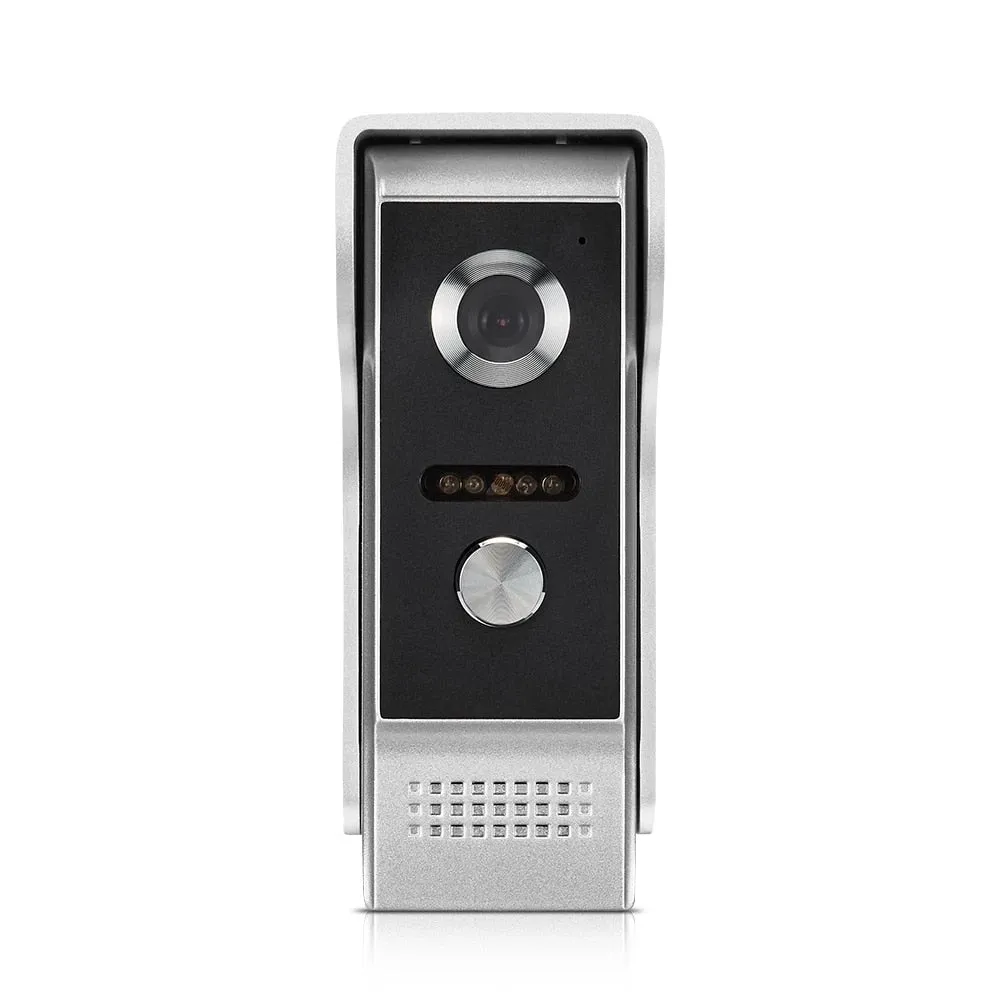

This video door phone adopts a different design. The outdoor unit embeds in an intelligent IR sensor and 6 led lights, the IR sensor can control the LEDs according to illumination intensity. At night or at low light status, the 6 led lights will turn on automatically and allows you can still see color image at night. During the daytime, the 6 led lights will not turn on. It is a brilliant design.
Electrical lock and indoor Unlock, make the house safer
This door phone can work with a 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don't need to go to the door to unlock your guest, you just need to press unlock button on the monitor. It will bring great convenience for you and your family members.
( This electric lock is not included if you need please feel free to contact us. )
Applications
This door phone system can be widely used in Villa, office, private house, and another place that needs an intercom. It is not only an intercom system but also a home security system.
FAQ
Q: Can I use cat4/cat5/cat6 cable to do the connection?
A: Yes, you can use these network cables. But, the total length cannot exceed 30m.
Q: Is the outdoor unit waterproof?
A: The outdoor unit is not waterproof, it is rainproof. You can mount it outside, but we suggest you mount a cover on it for protection.
Q: What is the max distance this system supports?
A: We suggest you use it within 100m.
Q: Can I add more cameras or monitors?
A: You can use max 2 outdoor units and 6 indoor monitors in one system.
Q: Can I connect two locks to this kit?
A: Yes, it can work with two locks. But you need use the 12V power supply module.
