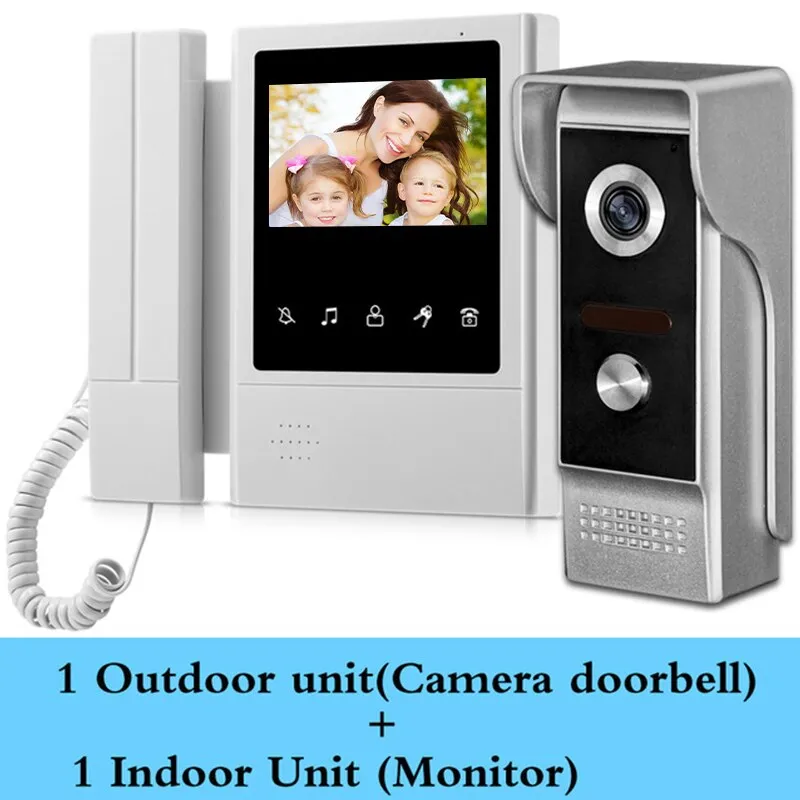

Product Details
- With 4 wire system connections. Using a 4-cores cable to connect the camera and monitor.
The max distance is up to 100 meters. Different distances, use different diameter cables, please check the following form to choose the corresponding cable.( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)
- Multiple ringtones - free switch
The 25 chord ringtones can be switched freely, elegantly, and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear a voice or hearing it too loud anymore.
- Handsfree Dual-way Intercom and Indoor Monitoring
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk outside, press the answer button again to turn it off. If you do not press the button after the conversation is finished or if no one answers the call, the monitor will turn off automatically after the 60s.
- Support Two-way Audio and Ringback function.

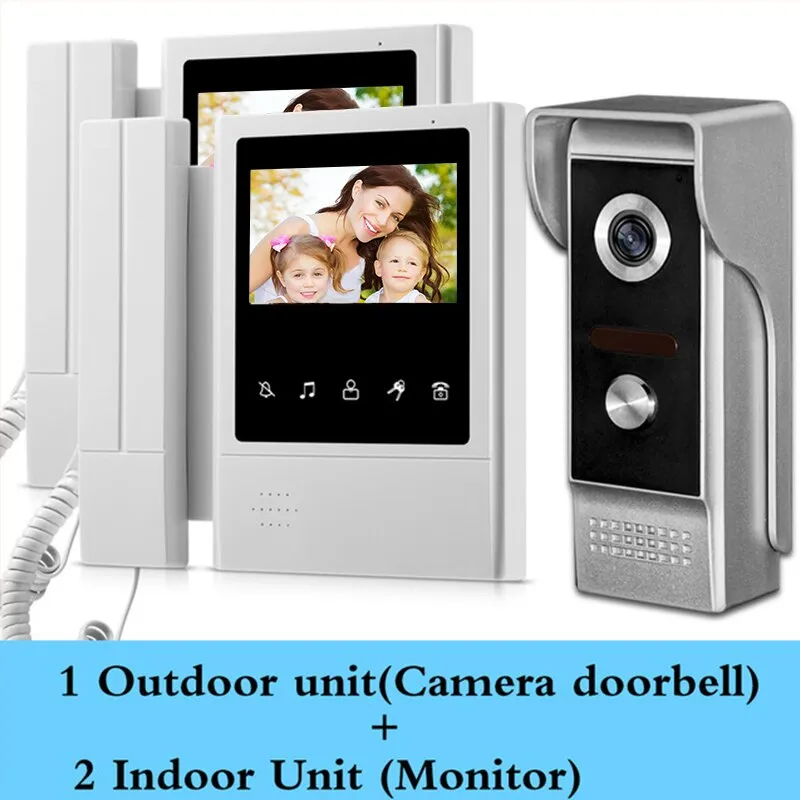

One camera can work with 6 indoor monitors. One monitor can work with 2 cameras. The camera can talk with the monitor. The monitor can talk with another monitor too. (If you want more cameras or monitors, please contact us.)
-
IR Night Vision
The outdoor camera build-in 4 white LED lights. With this function, you can see outside no matter day or night. Keep your home safer.
Induction white light effect IR infrared night vision effect without night vision effect
(colored picture, the nigh
vision effect is the best)
-

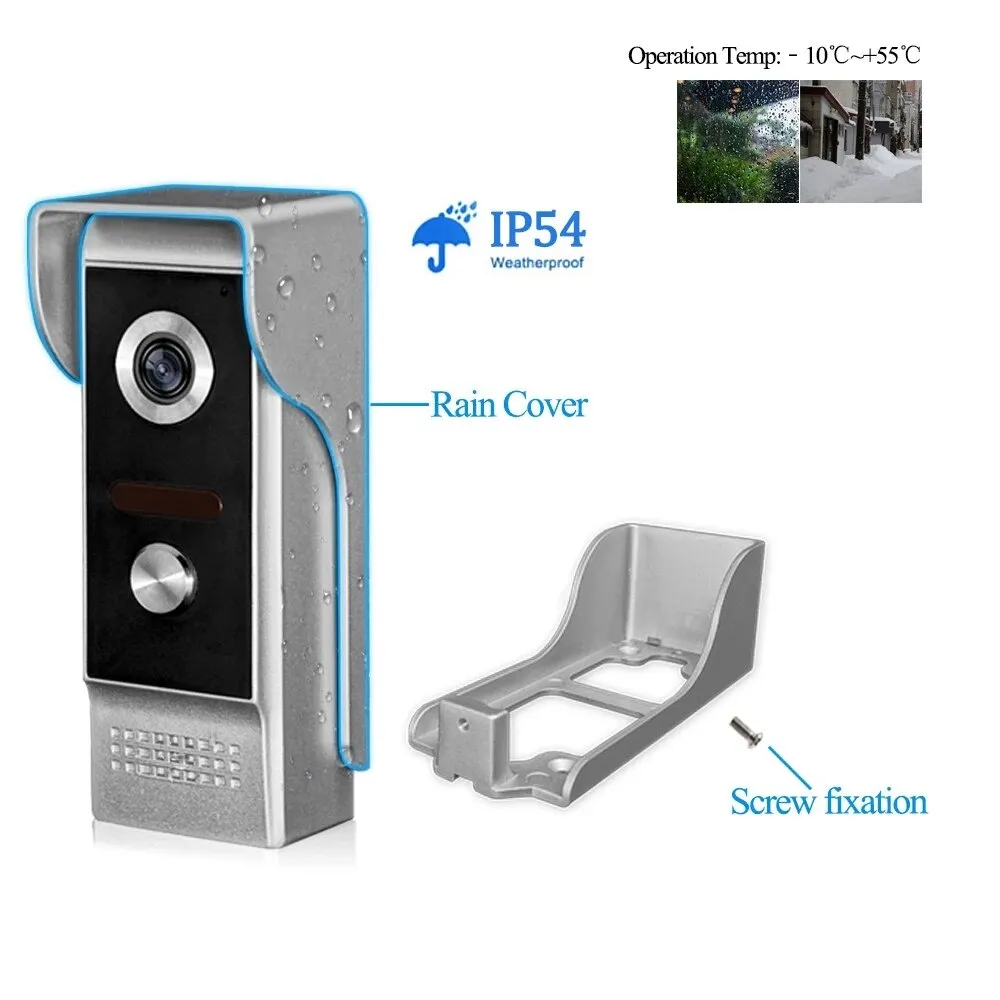

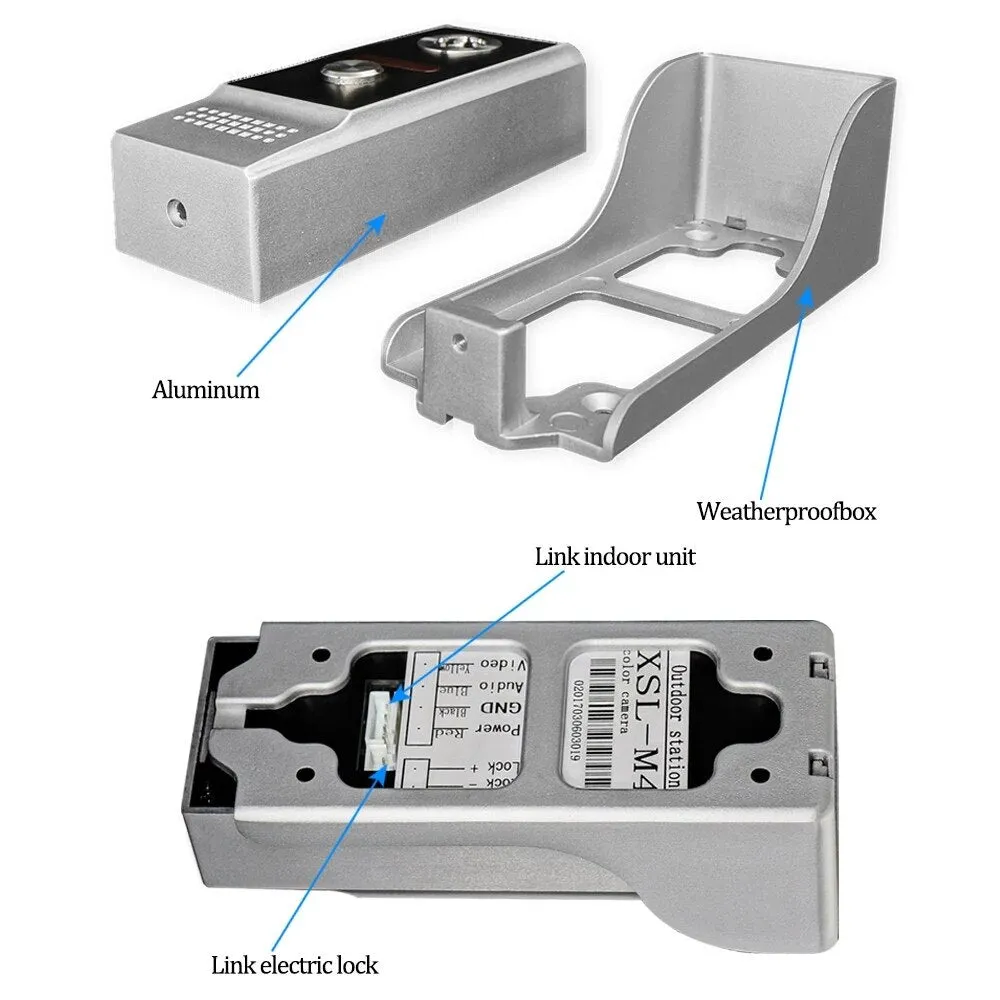

Waterproof and dustproof
The outdoor camera equipped with a weatherproof cover can be used outside even in very bad weather.
-
One key to unlock
This video intercom can connect to the electric lock. You can open the door with the indoor monitor. Very convenient!
(note: The lock is not included in the package, need to buy extra)
Product Analysis
Technical Parameters
|

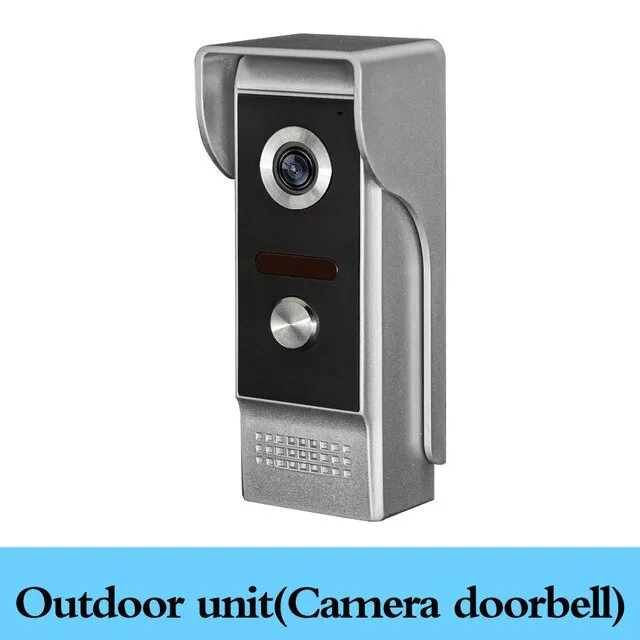

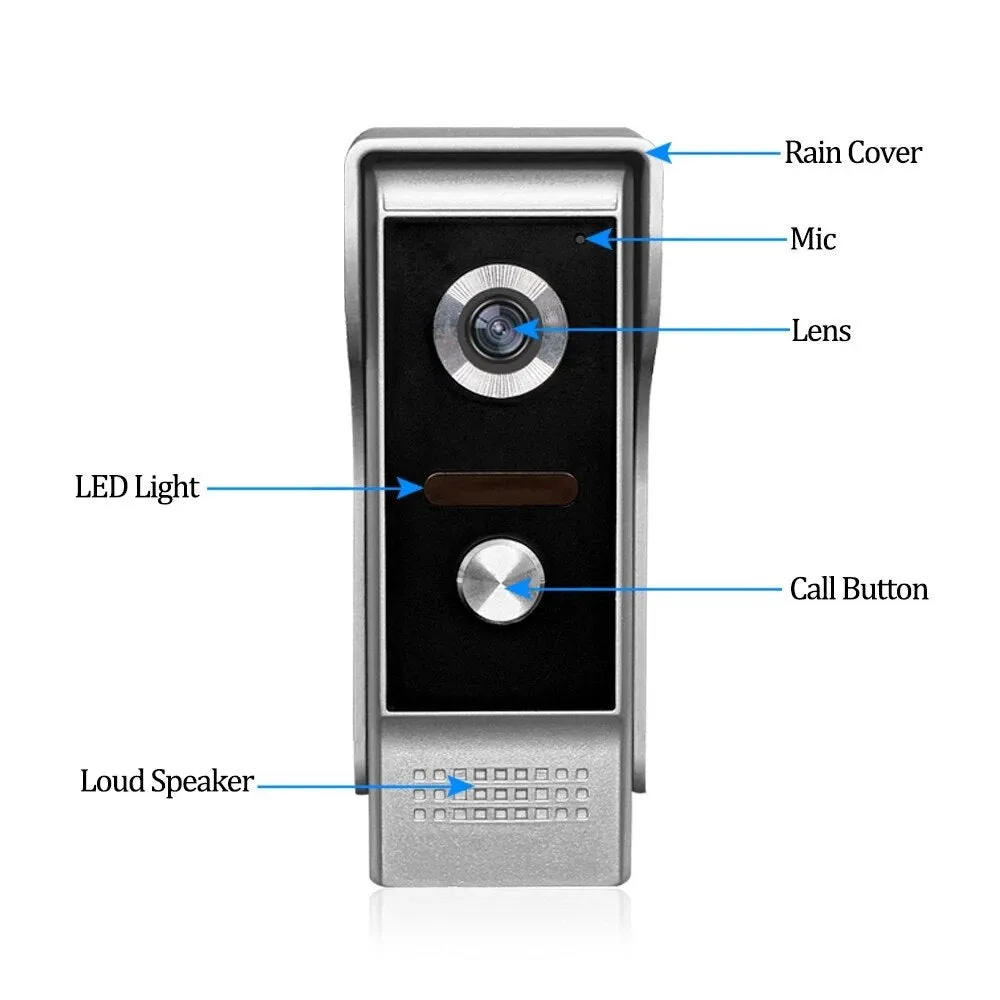

Outdoor Camera |
|
|
Camera Resolution
|
700TVL |
|
Night Vision |
Up to 2 meters |
|
Working Temperature |
-35 °C ~ 55 °C |
|
View angle |
85 to 92° |
|
Waterproof |
Come with a waterproof cover |
|
Dimension |
50mm(L) x 27mm(W) x 125mm(H) |
|
Installation |
Surface-mounted |
|
Material |
ABS Plastic, Aluminum wire drawing |
|
Wire System |
4 Wire system |
|
Model |
XSL-M4 |
|

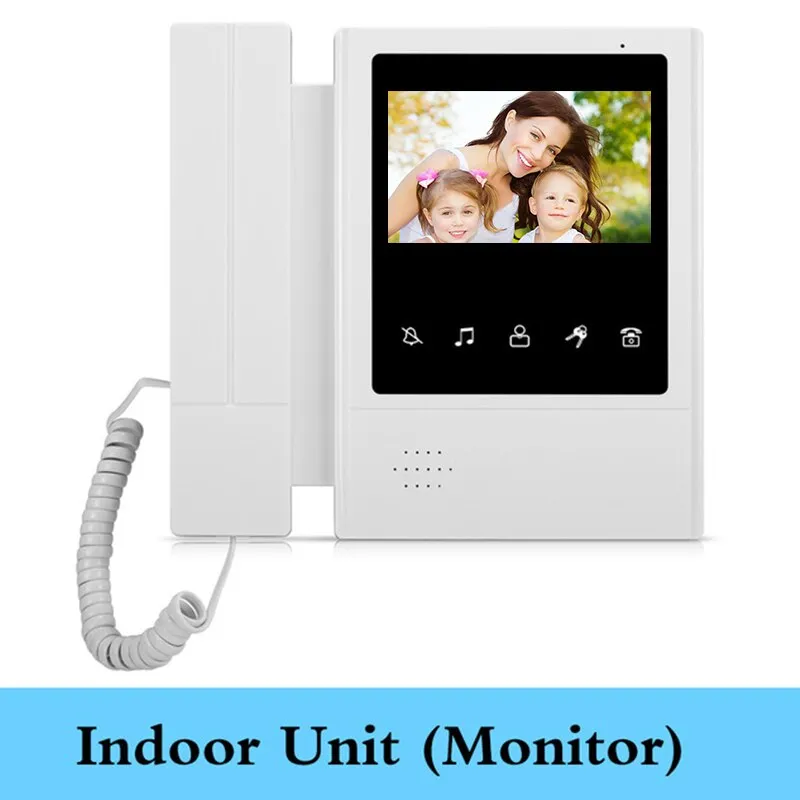

Indoor Monitor |
|
|
Screen |
7" color TFT-LCD |
|
Effective Pixels |
800 x 480 |
|
Wiring |
4-wire pin end |
|
Room to Room Intercom |
Yes |
|
Adapter Input |
AC100 - 240V 50-60HZ |
|
Adapter Output |
DC 15V 1500mA |
|
Case |
ABS Plastic |
|
Working Temperature |
-35 °C ~ 55 °C |
|
Installation |
Wall-mounted |
|
Dimension |
185mm(L) x 195mm(W) x 30mm(H) |
|
Function |
Intercom, monitor, unlock the door |
|
Model |
XSL-V168 |
Wiring diagram
( The NO type lock can be connected to the camera directly. But the magnetic lock and bolt lock need connect to an extra DC12V power supply. Both of the locks, power supply, exit button are not included in this package. If you need it, please contact us.)
Wiring diagram1
Wiring diagram2
Very Important: Please leave us a message about which type of power plug you want, if you do not leave us any message, we will send EU type by default.
