Name: AnjieloSmart 7 inch LCD Video Doorbell Intercom System Motion Detection Record with 32G Memory SD Card Home Access Control System
SKU: 26154

Notice:

Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System, Please Contact Us For Technical Support Before Buying.

We ship Russian intercom to Russian Federation, Ukraine, Belarus, Kazakhstan, Uzbekistan, Lithuania, Kyrgyzstan, if you are in one of these countries but want to get an English intercom, please let us know before shipment.

Others countries we did not mention, will ship English intercom by default, if you want Russian intercom, please let us know before shipment.

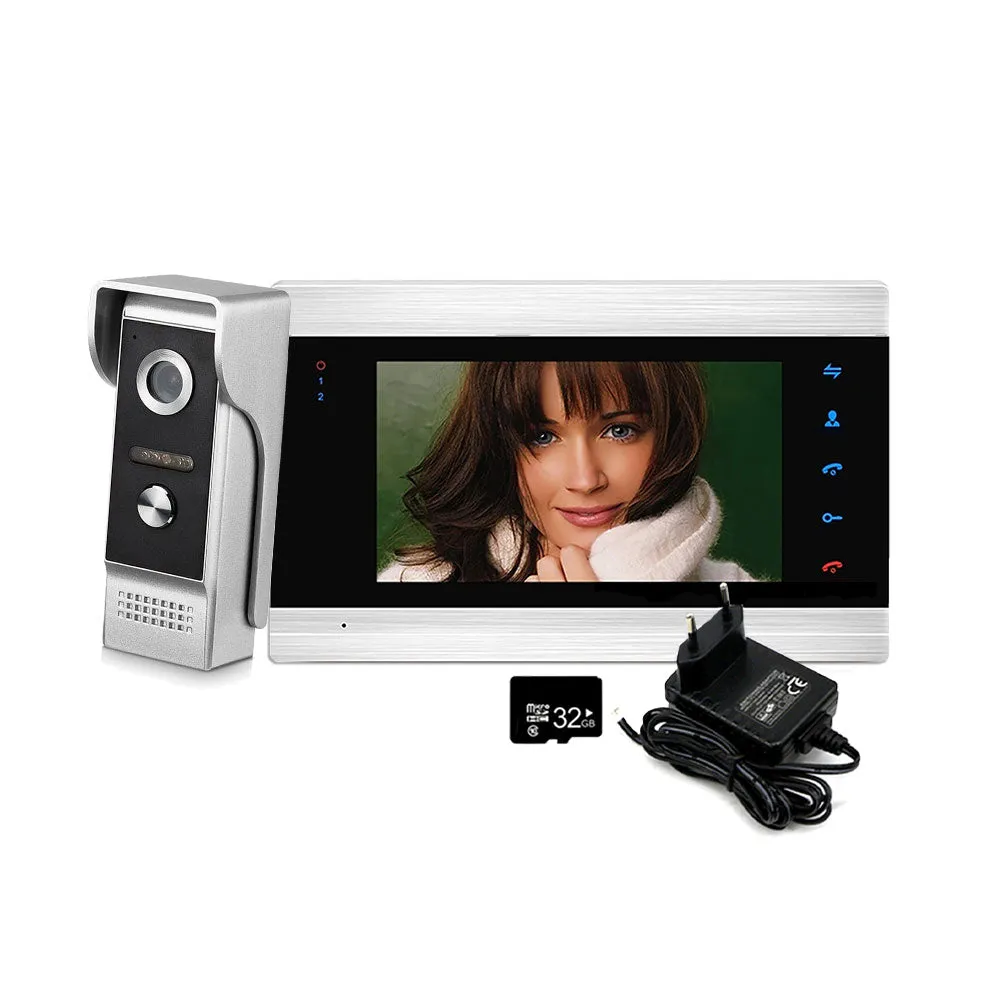

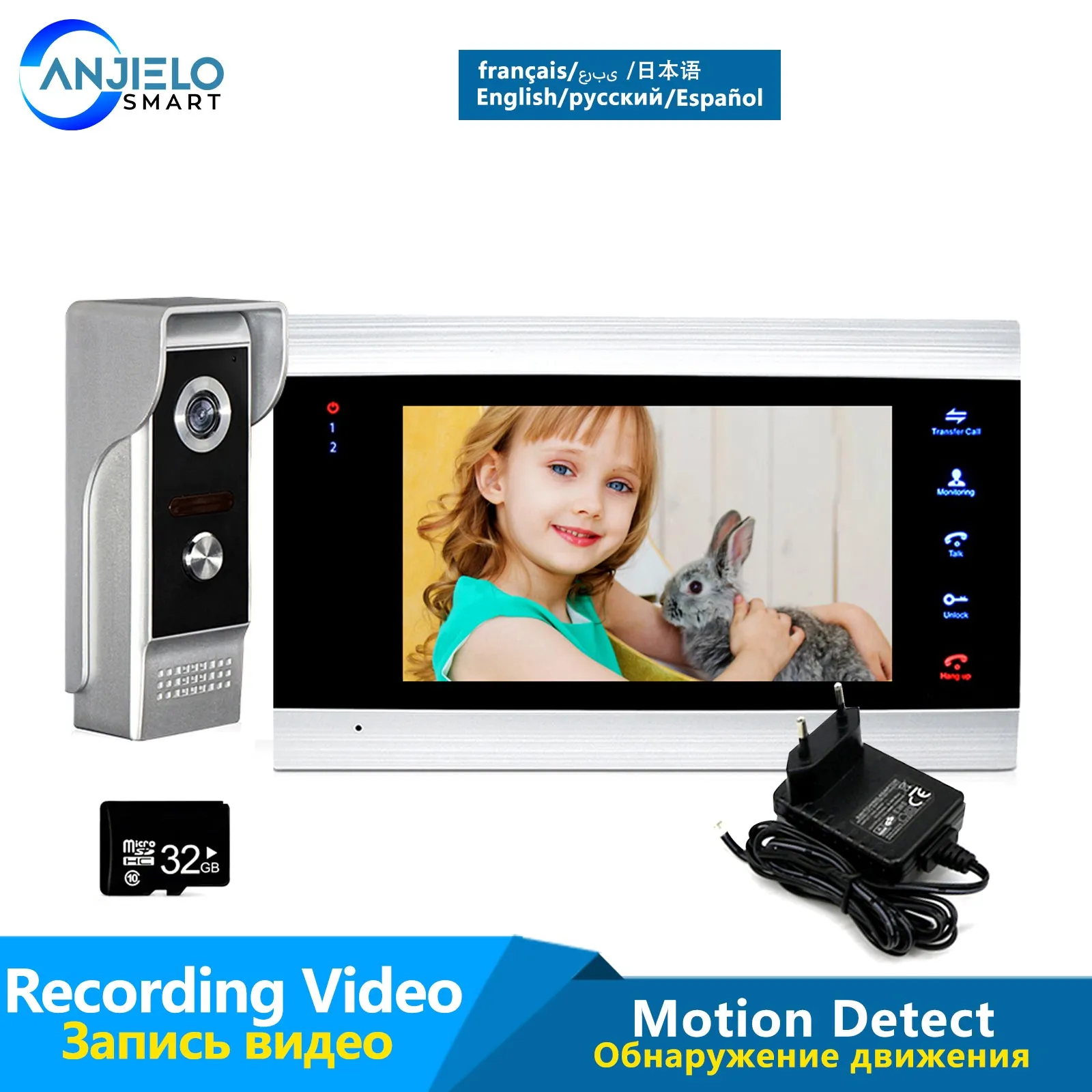

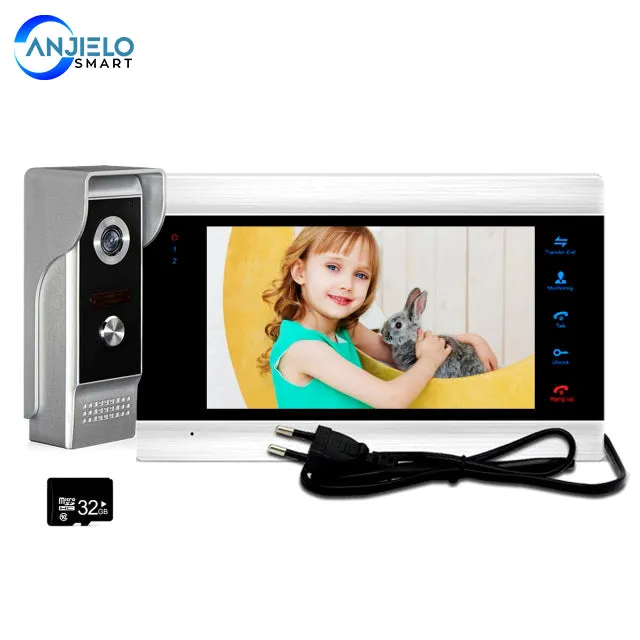

7” Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

Wired Video Intercom Monitor M706 Series, Support Motion Detect Record

Provide English version / Russian Version
If you need a built-in power monitor, welcome to contact me.

1. Motion sensor detects record videos
2. Dual-way Intercom, call transfer among monitors
3. Monitoring outside without pressing the doorbell call button
4. 6 Languages: English / русский / Español / Le français / عربى / Japanese
5. Color, Brightness, Ringtone and Volume Adjustable
6. Support analog camera connected, electronic lock connected
7.Support images/videos playback, support external maximum 32GB memory card
8. Doorbell camera / CCTV Camera preview
9. IR night vision
10. The intercoms will automatically turn off the screen after stopping the operation for 1 minute to save electricity!

Indoor Monitor

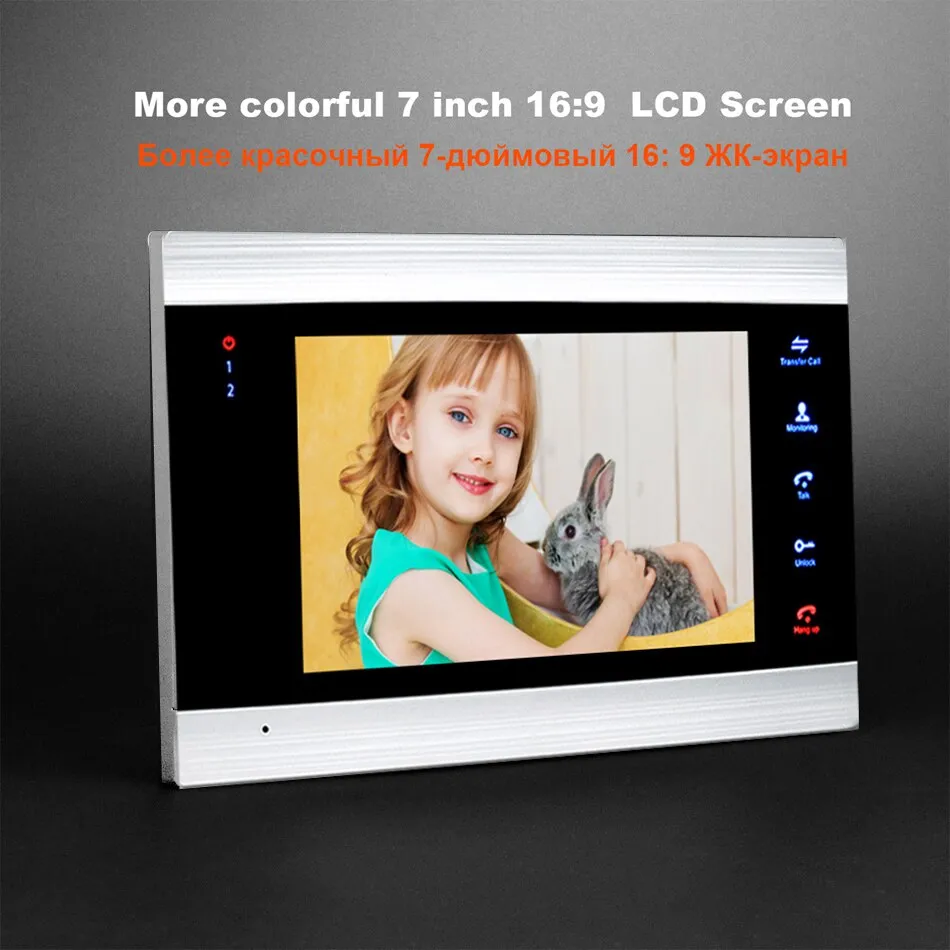

Monitor : 7" wide color HD TFT LCD ,16:9 Display
Resolution : 800X480
Memory: Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card
Intercom mode: Hands-free dual-way communication
Delay calling time: 120s
Keypad: touch button
Power input: External power DC12V
Power Consumption: Standby:3W; Working:5W
Material: Acrylic wire drawing shell
Recordingpicture : jpeg format;video:avi format
Motion Detection Record: Yes
Video Picture Playback
Operation Temp:-10°C 60°C

Installation: Surface Mounted
Multiple System Supported: The system supported 4 indoor monitors 2 doorbell cameras 2 CCTV security cameras 2 PIR

OSD Menu, Excellent Performance

♦7 inch TFT High-Resolution Color Screen
♦Super Slim Design
♦Touch Button
♦Room to Room Intercom
♦Door Answering, Monitoring, And Unlocking♦Adjustable Color, Brightness, and volume
♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card
♦12 Ringtone For Choice

Multi-languages

The System Supports Six Different Languages: English, Russian, French, Arabic, Spanish, Japanese.

Two language panels are available

English and Russian panel for option, please leave messages to tell us about your choice. Russian Version and English Version have the same function.

Two different power supplies for the monitor

Built-in power and external power adapter, please leave messages telling us about your choice.

Choose The Type You Like

Excellent Performance

Clock Mode

The latest software is the monitor standby time.
If you did not operate the monitor for 1 minute and the time will not be displayed on the monitor.
It can protect the life of the screen.

Touch Button, Acrylic Wire Drawing Panel

Indoor Monitor Is Made Of Acrylic Wire Drawing Panel And TFT Display, Very Elegant Design, It Adopts Advanced Touch Technology. With Sensitive Blue And Red Light.

Video or Picture Record, SD Card Supported (Not Included)

When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Apply, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

Motion Detection Recording Videos to Memory Card

support monitoring outside without pressing the call button

Record Function

The monitor support Picture or Video Record when someone is calling. You could check who was visiting.

Motion Detection Record

When the movement is detected, the monitor will record from the Doorbell or Camera. It is determined by which channel is triggered first.
When the motion detection is on, you need to turn off the digital frame.

Built-in Motion Detection will trigger from 2 Cameras and 1 Call panel at the same time and Auto take video, which is more effective for monitoring strangers from every angle. With Monitoring, no need to buy an extra PIR sensor, save a small money, but earn a big amount and safety home, You are worth it!

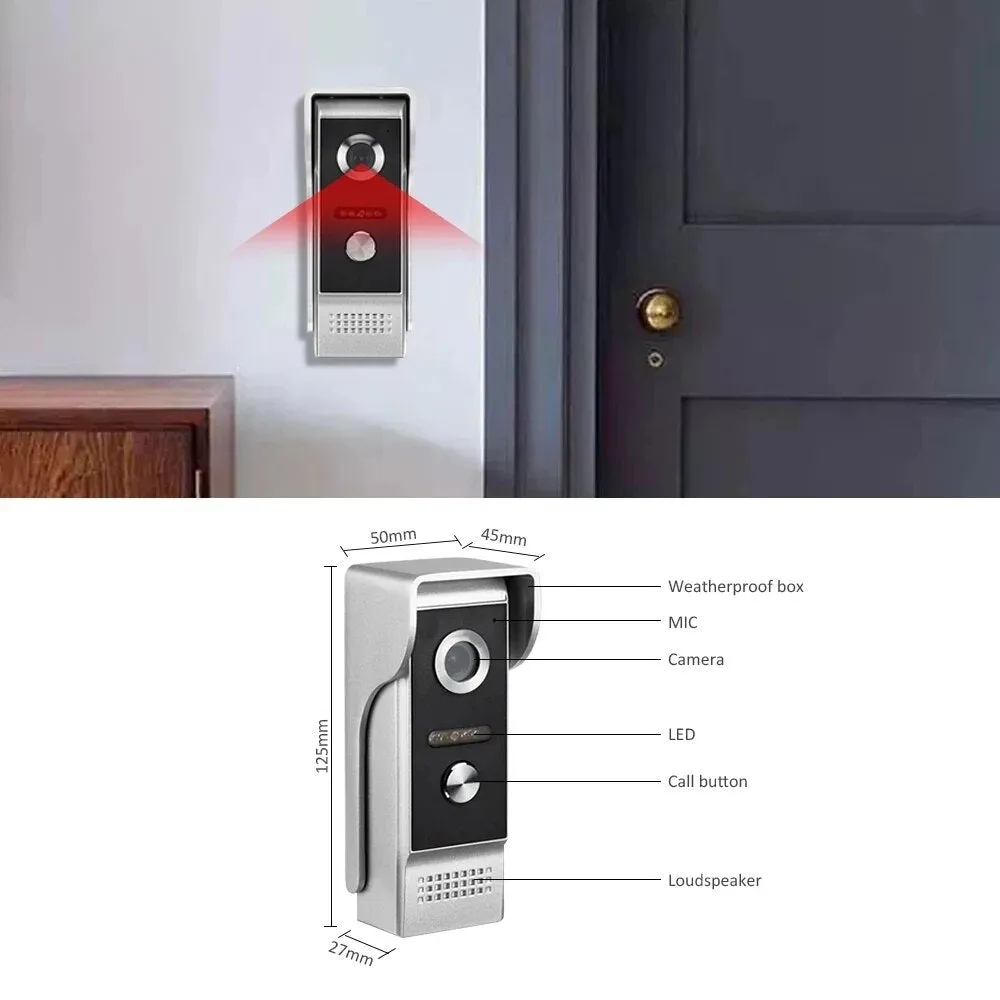

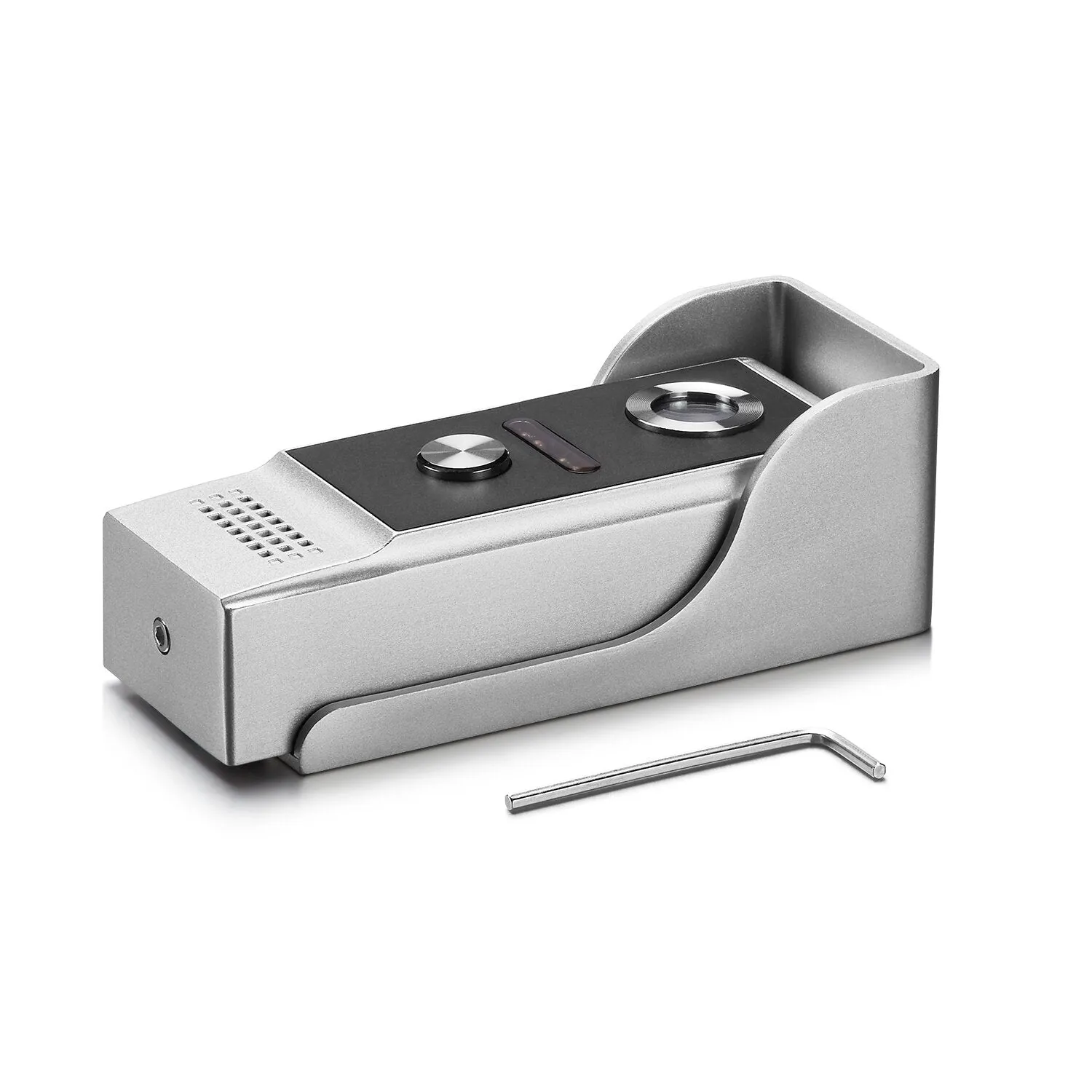

Outdoor Waterproof Doorbell

Camera sensor 1/4" CMOS
Lens Angle 92 degree
Night Vision IR light
Electronic lock support
Power Consumption 200mA Max.
Material aluminum alloy panel
Waterproof IP65
Operation Temp. -40 dec 50 dec
Installation Wall-mounted

IR (infrared) LED for Night Version

The LED on the outdoor doorbell will light on automatically so that you can see clearly visitors even in the darkness of the evening, Make sure your family is safe.

Waterproof and Dust-proof

The Outdoor doorbell is constructed with an aluminum front panel for protection from vandalism, while waterproofing protects from the rain or snow. With a rainproof cover to prevent the water and protect the outdoor camera from damage.

Ultra-clear sound characteristics

The excellent sound transmission system, clear microphone, and speaker effects, away from the noise, make ears more comfortable and make communication easier.

700 TVL High Resolution

700 TVL High Resolution, It's See Sharper And More Details Than 600TVL/420TVL.

IR LED Offset Lighting Can Obtain Better Evening Viewing

It Helps You Identify The Visitors Even In The Dark Night.

IP65 Waterproof, Anti-thunderstorm Design

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.

Dual-way Intercom, Call Transfer Among Monitors

This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera But Also Supports Communication Between Monitor And Monitor.

Adjust Lock Time, Compatible With All Electronic Lock (Not Included)

Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.

Support Electronic Lock, PIR (Not included)

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera, And Electronic Lock. It Can Protect Your Home And Property In All Aspects.

Please Notes:

PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

Wiring diagram

PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).

Please Notes：

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-2
