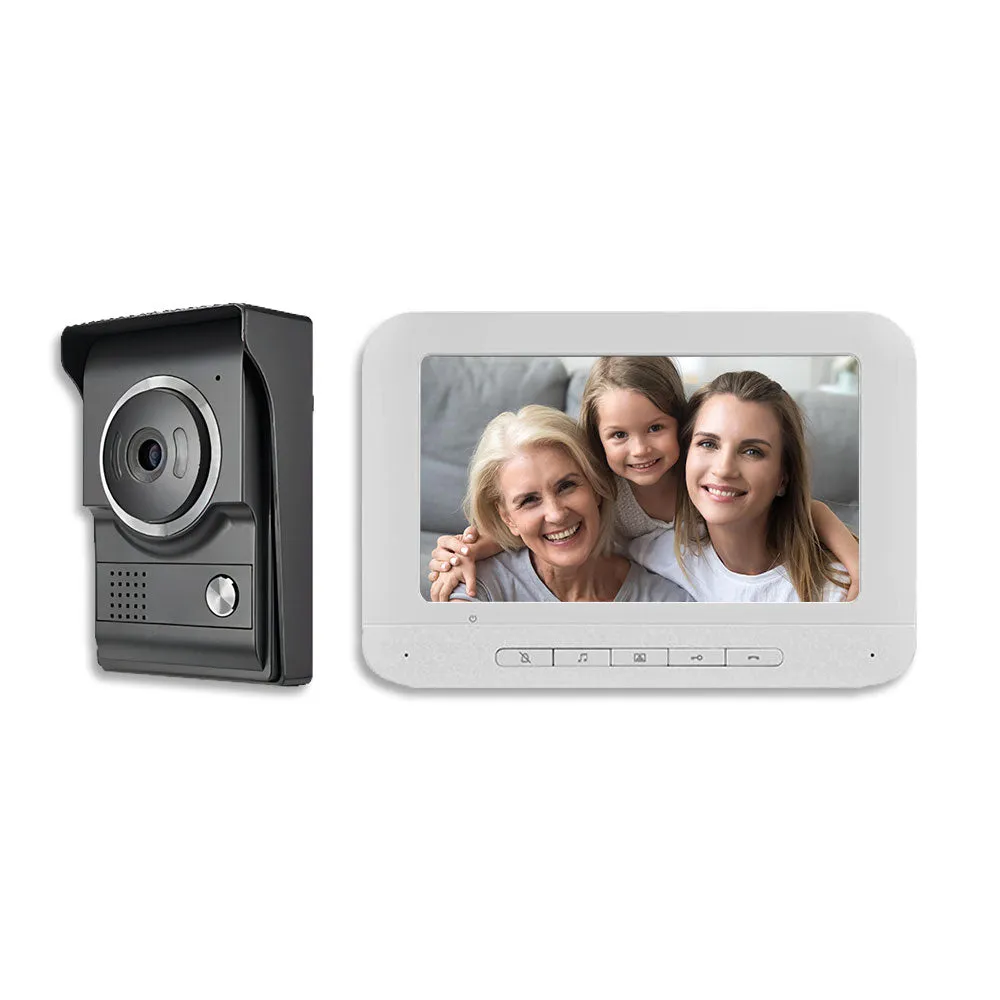

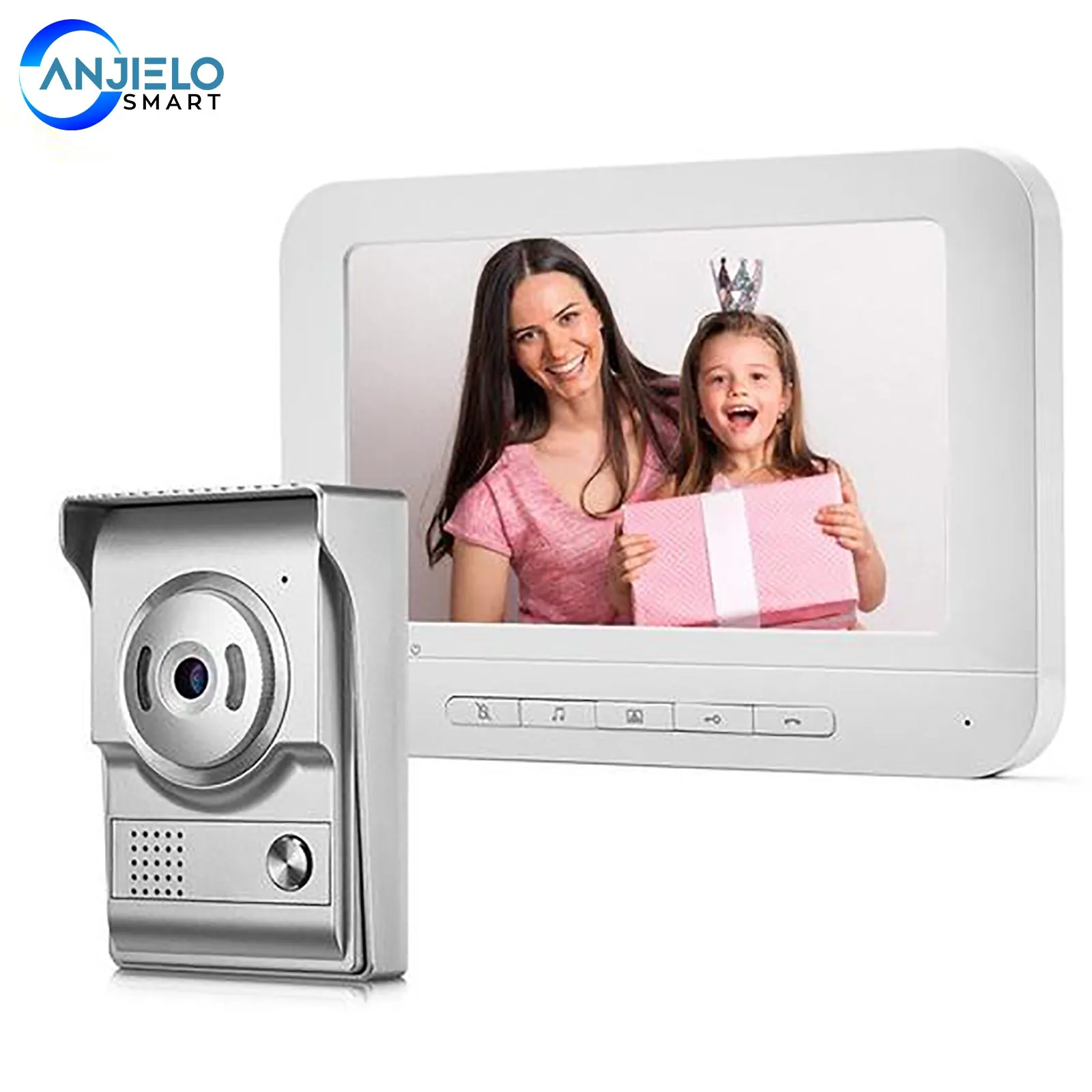

7 Inches Wired Video Intercom Doorbell System
Ensures you can both see and speak with all visitors, easy installation. The video intercom system is composed of two parts, an outdoor unit, and an indoor unit. Imported TFT-LCD display screen： The screen provides clear images, bright and distortionless colors. HD Camera： A high-definition CMOS camera is used to provide good night vision effects. 15V DC is used for the indoor unit to realize the functions such as doorbell call, monitor, intercommunication, and remote unlocking
1. Dual-way Intercom
When anyone presses the outdoor unit, the video door phone intercom will activate the indoor screen, the screen will turn on, ring, and show the video. You can see who is outside, Then you can press the"talk" button on the monitor to talk with the people outside, or unlock the lock.

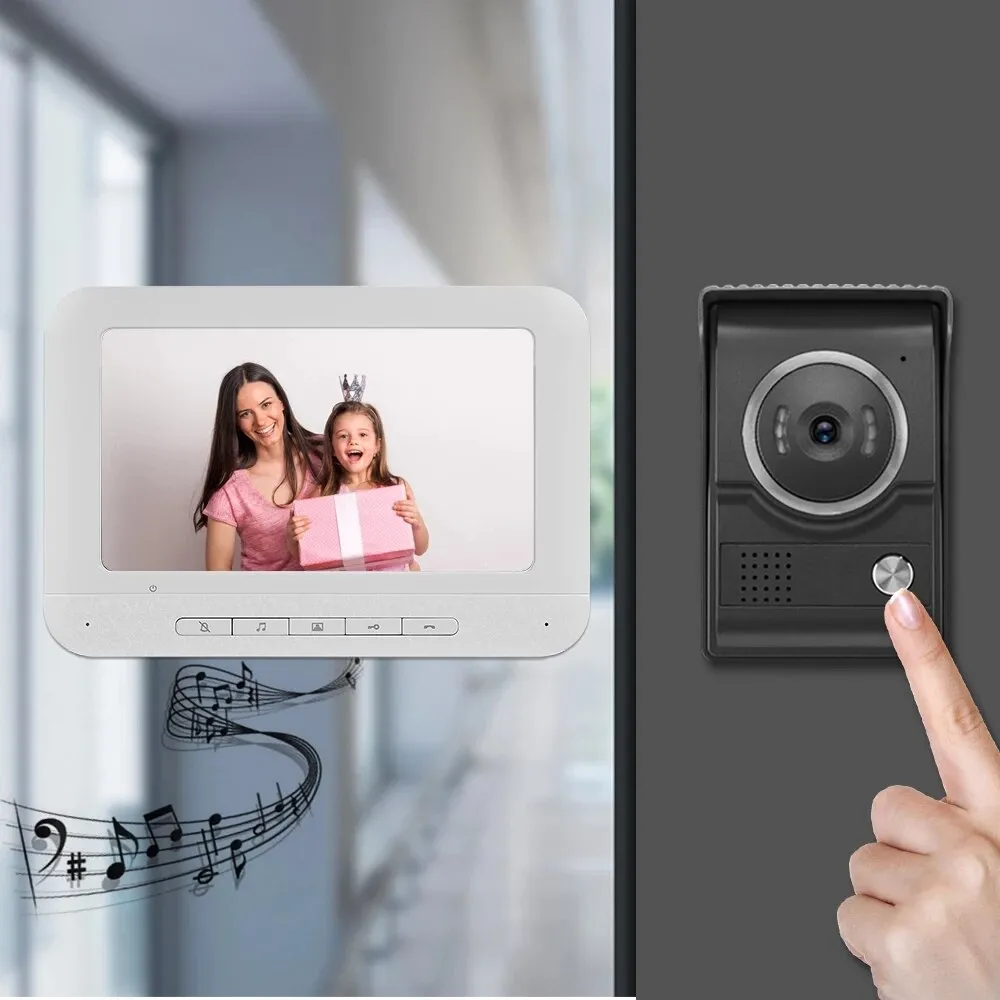

- Multiple ringtones to choose
There are 25 ringtones, you can choose the ringtone you like.
3. Real-time monitoring
Keep monitoring and easy to see the situation outside the door to ensure the safety of your family!
- One-button unlock
Remote unlocking function, no need to go to the door to open the door. (Please note the electrical lock at below photo is not included, if you need it, please contact us)
（Note: When connecting the electric bolt lock, Electric strike lock, and magnetic lock, it must be used with the access control power supply)
- Waterproof and Dust-proof
Equipped with a rain cover, Ingress protection – level 4, for outdoor uses. Applicable even on rainy or snowy days.

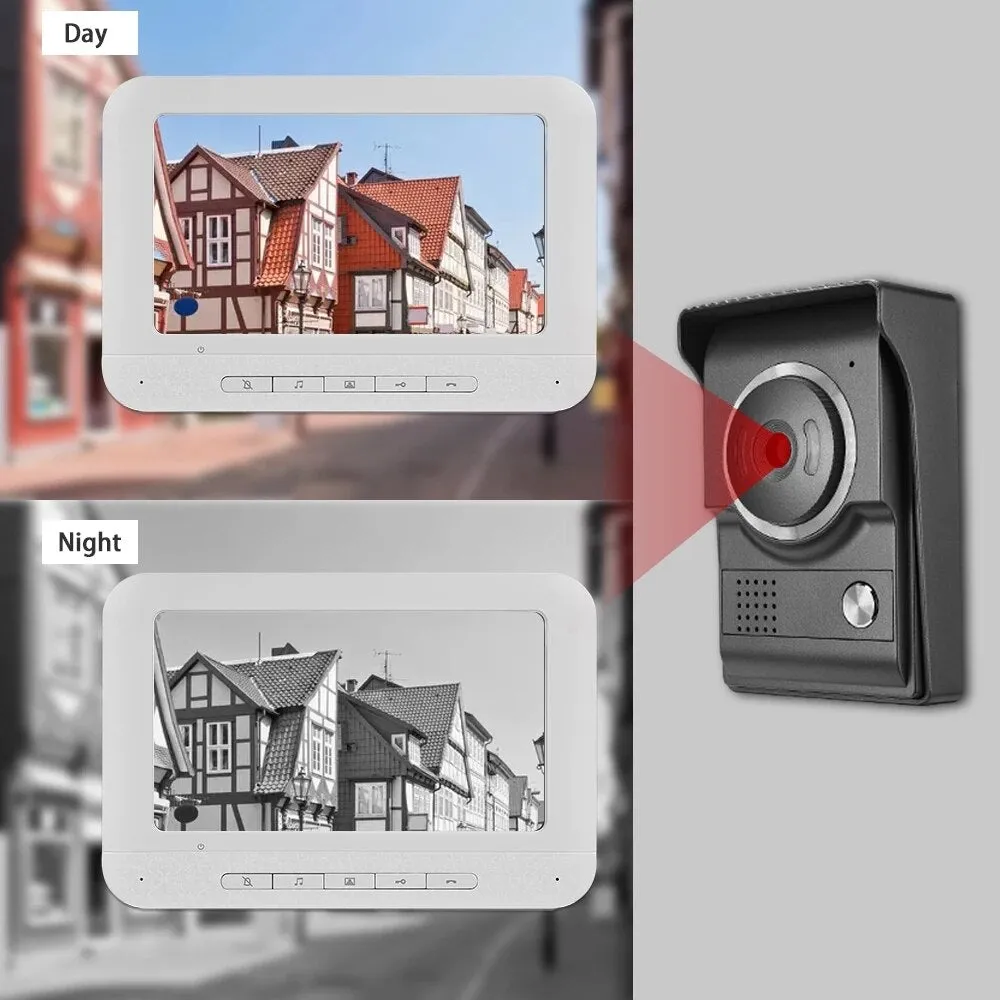

- IR night vision
The IR LEDs of the outdoor unit will turn on automatically in darkness so that indoor people can see the visitors clearly all the time.
- Clear Sound for smoother communication
The audio intercom uses a telephone general chip design, speech sound is clear, smoother communication

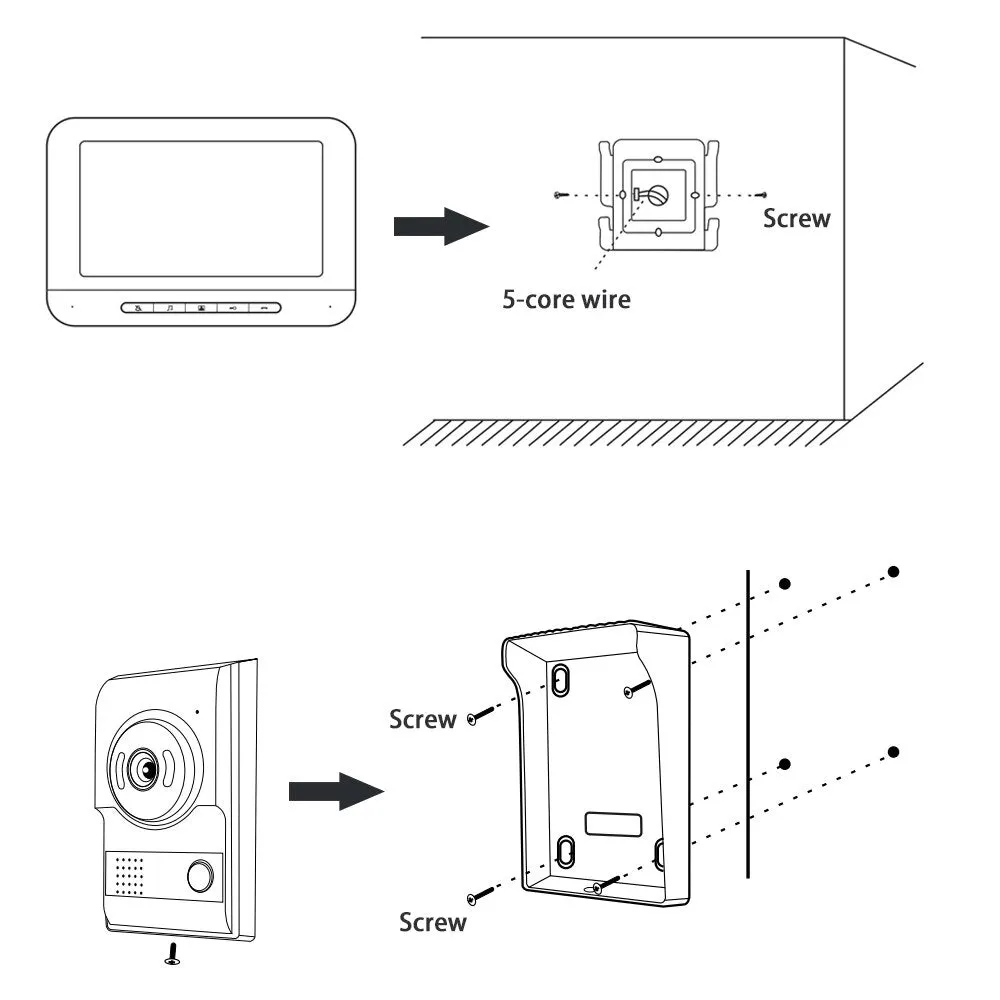

- Easy Installation
These wired video doorbell kits accessories are complete, you just need to buy an extension line. The wired doorbell is stable and the actual use time is long, but Can't connect the phone, computer, or wireless. It is applicable to places such as households, villas, apartments, offices, and hospitals.
Products Spec.

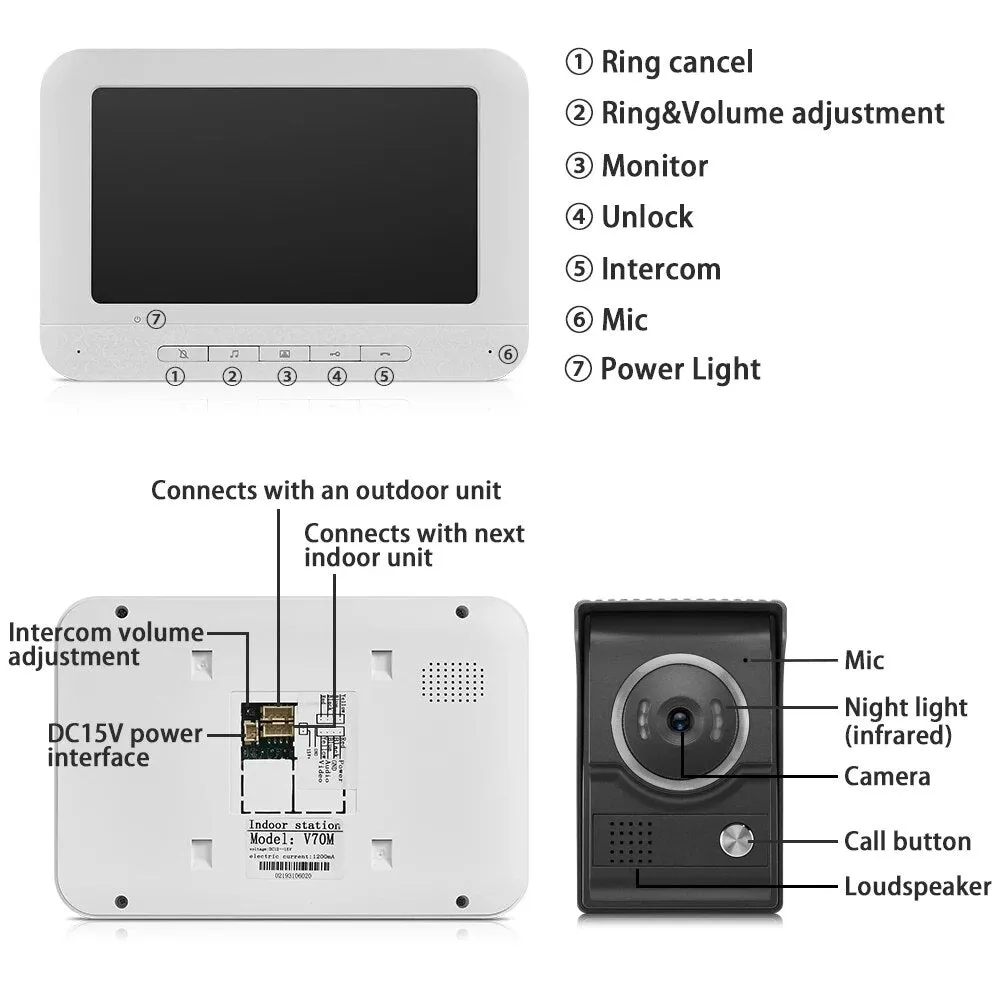

Indoor unit of V70M model
*7" TFT LCD Color screen *25 Ringtones for choice *Hands-free Dual-way communication *Adapter:AC100-240V 50-60HZ *Adapter Output:DC 15V1500mA *Working temperature:-20 degrees~ 60 degrees *Material: ABS Plastic *4-Wire Connection *Camera Size: 19.5*13.2*1.3cm / 7.6*5.2*0.5 In Installation: Wall Mounting *Real-time outdoor monitor & One-button Unlock
Outdoor unit of L model
* CMOS Camera with 700TVL Resolution *4 LED Infrared Night Lights for night vision *Rainproof: Support *Working temperature:-30 degrees~ 60 degrees *Power from indoor monitor *4-Wire Connection *Material: ABS plastic *Camera Size: 12.7*8.5*4cm / 5*3.4*1.6 In *Installation: Wall Mounting
The outdoor unit of the M4 model
* CMOS Camera with 700TVL Resolution *4 LED Infrared Night Lights for night vision *Rainproof: Support *Working temperature:-30 degrees~ 60 degrees *Power from indoor monitor *4-Wire Connection *Material: metal *Camera Size: 12.5*5*2.7cm / 4.9*1.9*1 In *Installation: Wall Mounting

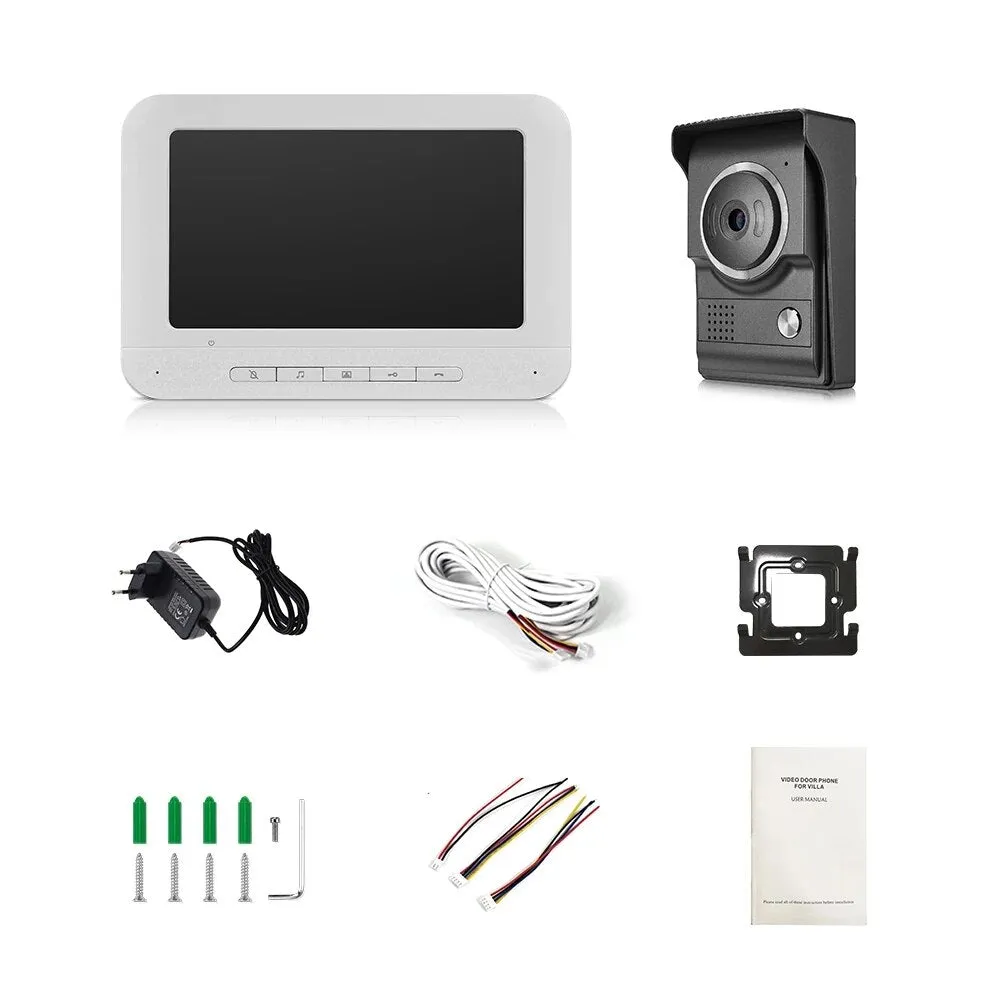

What is included?
Connection cable standards
With 4 wires system connection.Using a 4-cores cable to connect the camera and monitor. The max distance is up to 100 meters. Different distances, use different diameter cables, please check the following form to choose the corresponding cable.
Wiring diagram
（Please note the locks, power supply, and exit button below photo is not included, if you need, please feel free to contact us）
One camera to connect two indoor unit diagram
Note: There is no intercommunication between the indoor unit and the indoor unit
Very Important:
Please leave us a message which type of power plug you want, otherwise, we will send EU type by default
- Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System, Please Contact Us For Technical Support Before
