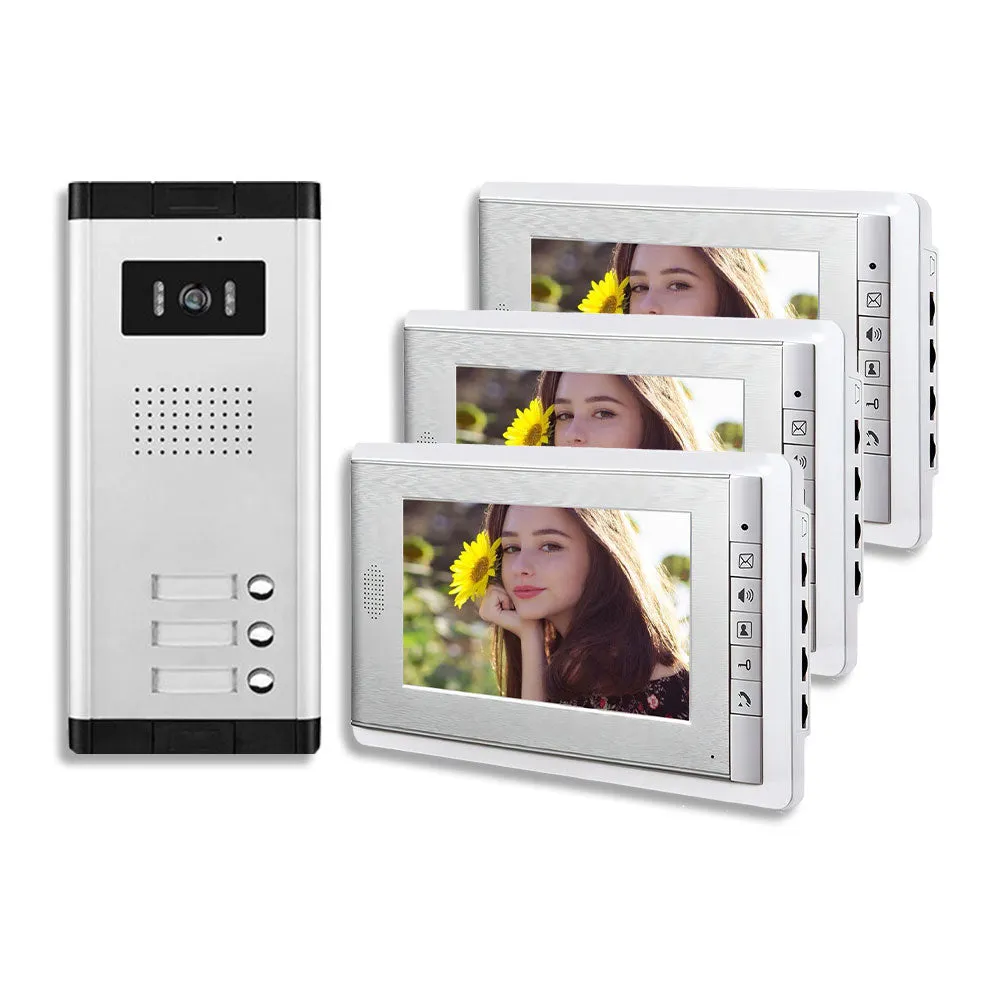

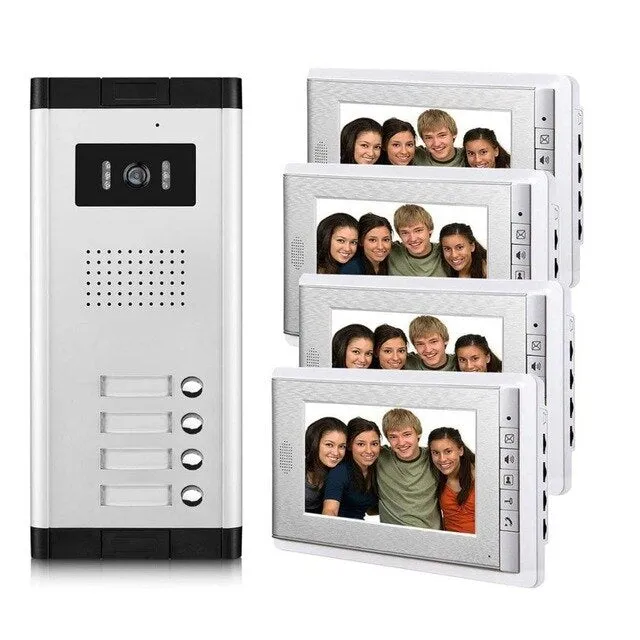

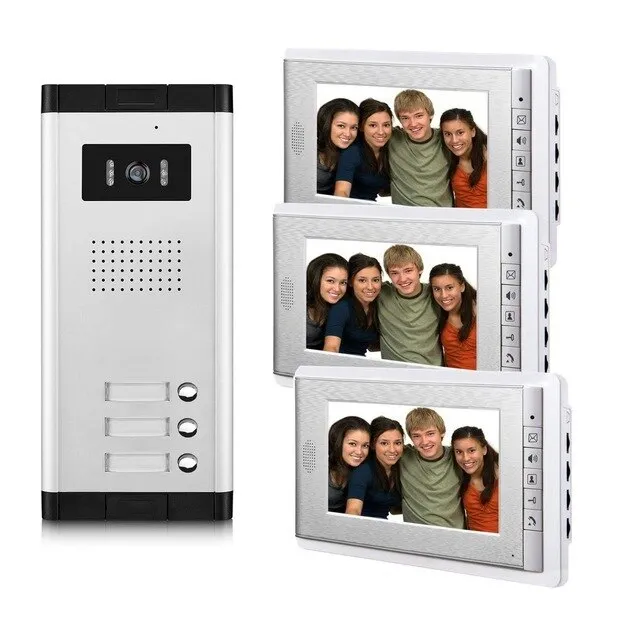

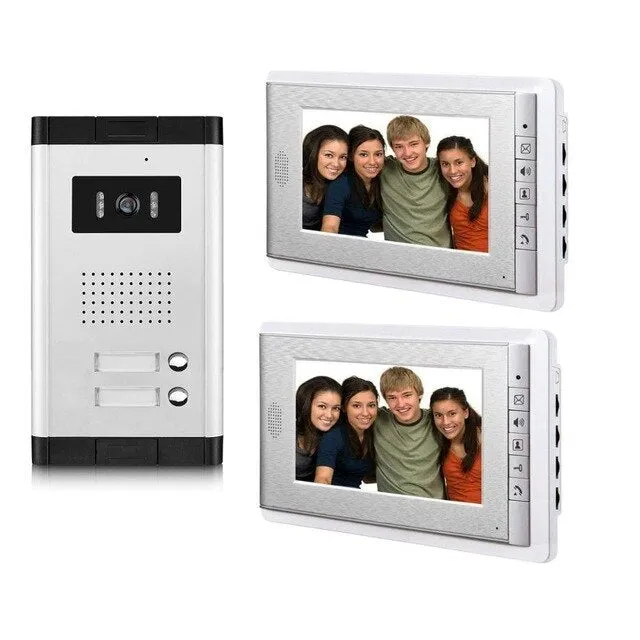

7 inch Video Door Phone Intercom System for 2 / 3 / 4 ApartmentsCamera
*With 4 wire system connections. Using a 4-cores cable to connect the camera and monitor.
The max distance is up to 100 meters. Different distances, use different diameter cables, please check the following form to choose the corresponding cable. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)
*Handsfree Dual-way Intercom and Indoor Monitoring
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk outside, press the answer button again to turn it off. If you do not press the button after the conversation is finished or if no one answers the call, the monitor will turn off automatically after the 60s.
*Multiple ringtones - free switch
The 25 chord ringtones can be switched freely, elegantly, and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear a voice or hearing it too loud anymore.
*IR for Night-vision, allows you to see color images at night
This video door phone adopts a different design. The outdoor unit embeds in an intelligent IR sensor, the IR sensor can control the LEDs according to illumination intensity. At night or at low light status, the lights will turn on automatically and allow you can still see images at night. In the daytime, the lights will not turn on. It is a brilliant design.
*The outdoor camera prevents the water and protects the outdoor camera from damage. Aluminium Alloy Panel dustproof waterproof(IP65)
*One key to unlock, make the house safer
This door phone can work with a 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don't need to go to the door to unlock your guest, you just need to press unlock button on the monitor. It will bring great convenience for you and your family members.
( This electric lock is not included if you need please feel free to contact us. )
In our store you can choose :
2/3/4/6/8/10/12Buttons outdoor camera for your choice!!!
Features
- With micro-processing technology, auto-remote control, excellent performance, and high reliability
- The TFT 7 inch digital color LCD for monitor
- Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling, etc
- Additional monitor available up to 4(optional) and 2 outdoor cameras at most
- TFT color screen with low power consumption, no radiation, and high definition
- Hands-free intercommunication

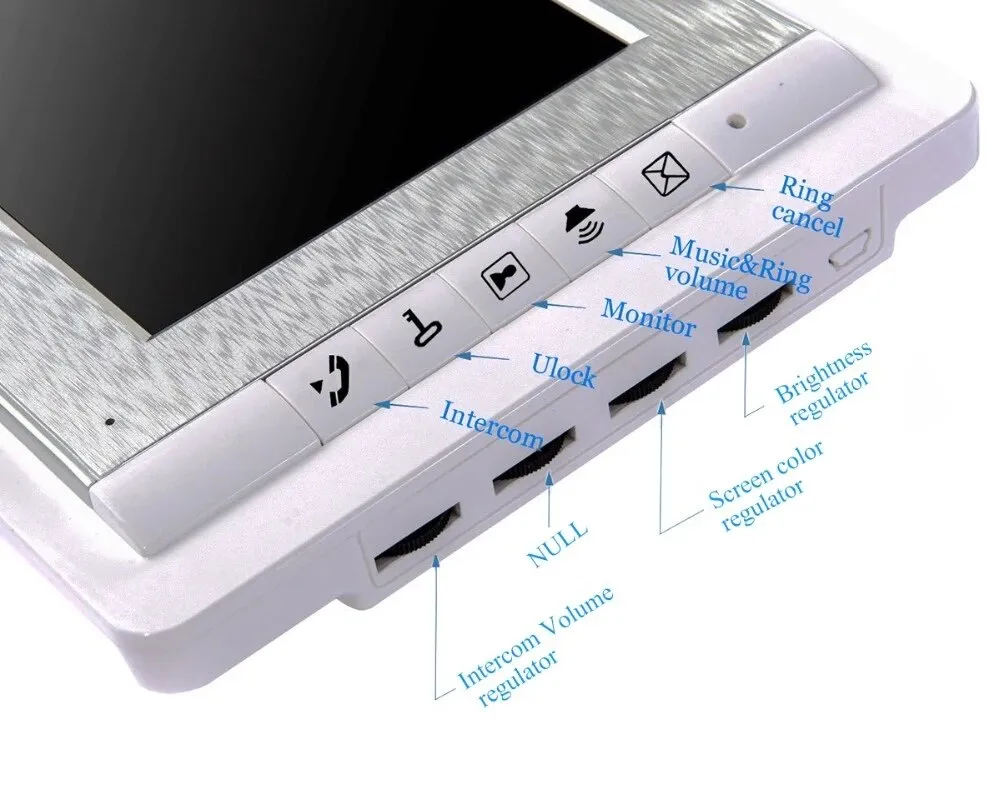

- Brightness, chroma, and volume adjustable
- 25-chord melody rings for option
- Cabling:4-core connection cable
Specifications
- Type: Wired Video Doorphone & LCD Wired Indoor Monitor
- Wiring requirements: 30 meters: RVV4 x 0.5mm;50 meters: RVV4 x 0.75mm;100 meters: RVV4 x 1.0mm
- Monitor: 7-inch TFT-LCD 800 x480
- Imaging Sensor: 1/3 CMOS
- Illumination: 0 Lux
- Working temperature: -15-55 degrees
- Relative humidity: 10 % ~ 90%(RH)
- Dissipation: stand-by <0.5W working <10W
- Talk time delay: 60 seconds
- Monitor time delay: 60 second
- Power Source : Adapter input voltage: AC100-240V 50Hz-60Hz
- Adapter output voltage current: DC15V 1500mA

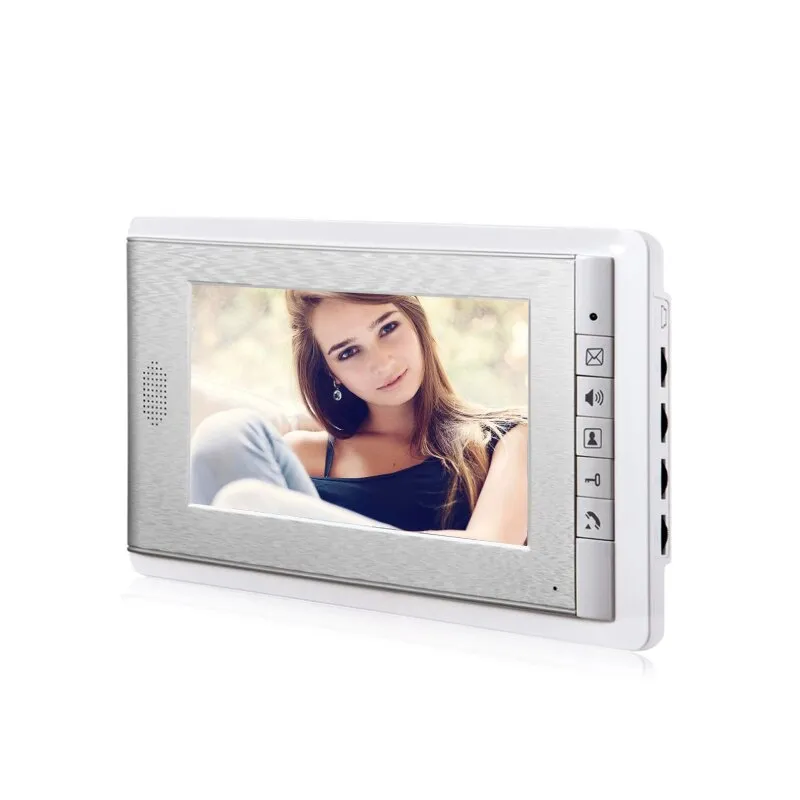

Indoor Monitor
- Display: 7 inch TFT LCD (16:9 display)
- Resolution: 800 x 480
- Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
- Adapter output voltage current: DC15V 1500mA
- Case:Plastic
- Installation:Surface mounting

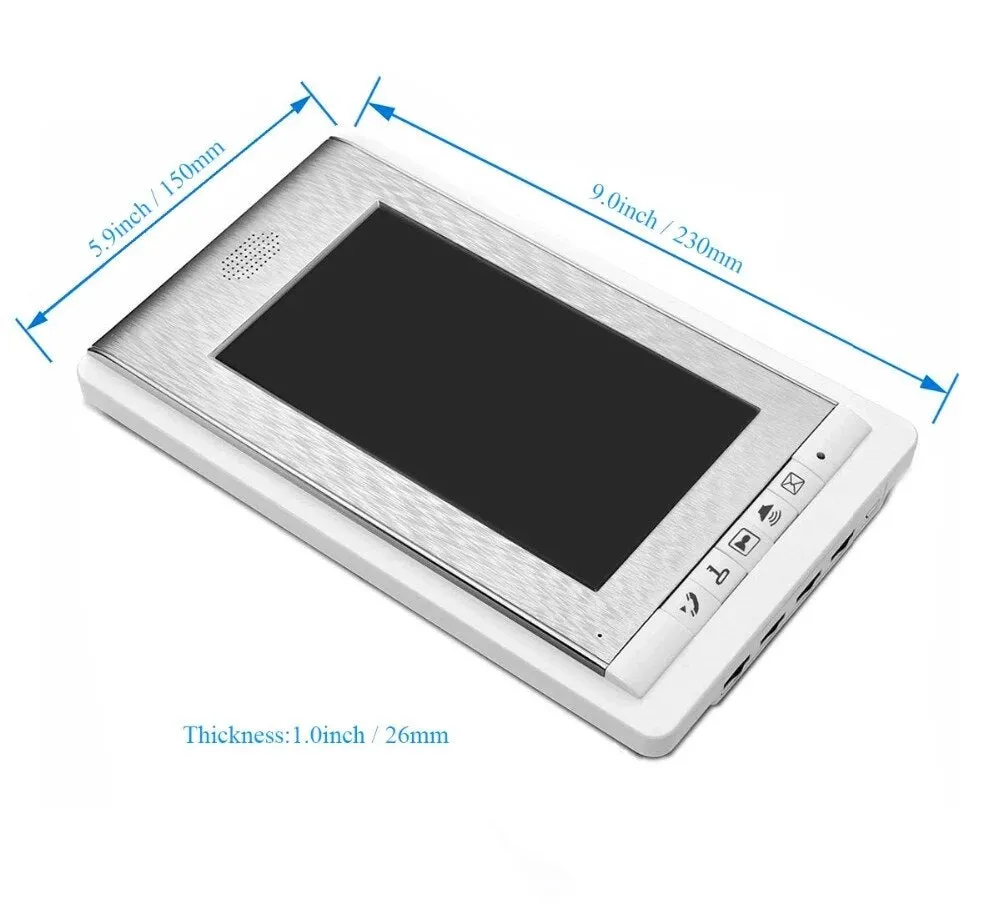

- Dimensions: 230L x 150W x 27H mm
- Weight:0.85kg

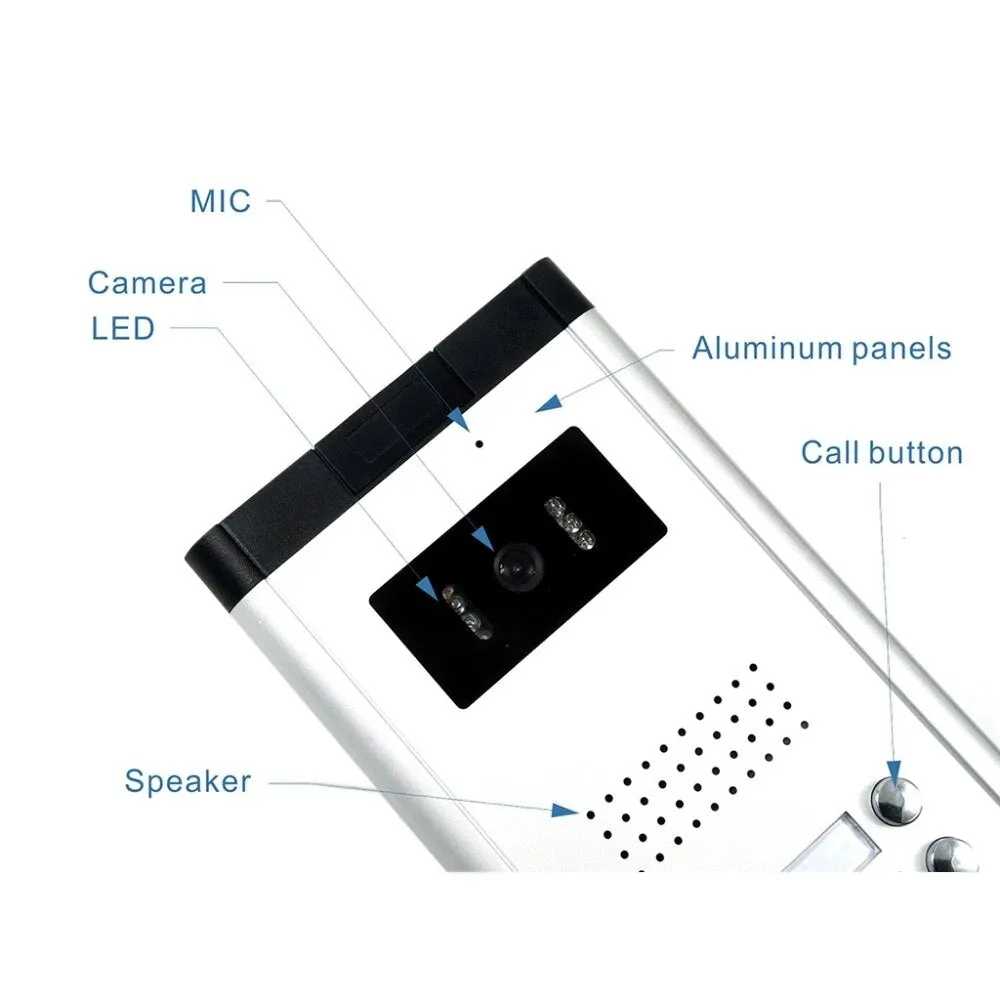

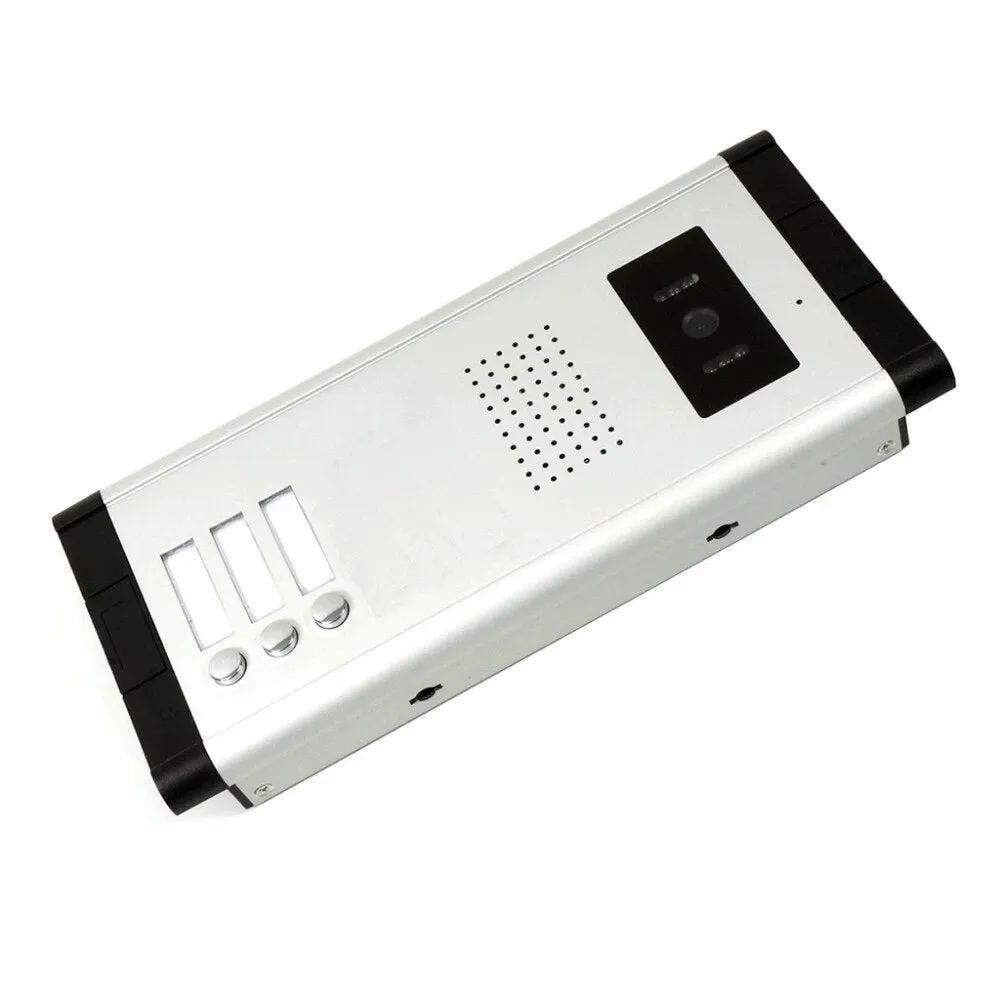

Doorphone
- Camera resolution: 510*492(NTSC), 700 Lines
- Camera: 1/3 Color CMOS Camera
- Illumination: 0 lux/F1.2
- Night vision illumination distance; White lights length 1m
- Power Adapter: From Monitor, DC14.5V
- Viewing angle: (U/D/L/R, degree): 60/35/70/70
- Connection: 4 cored wire (Up to 12 monitors)
- Case: Aluminum panels, weatherproof
- Overall dimensions: (3 to 12 call button )122L x 276W x 45H mm ; (2 call button ) 122L x 218W x 45H mm
Attention:
if you need to buy Access control systems that work with video door phones together, such as ( Entrance guard system/Wireless remote control/Door exit/Access control power supply/ ID Keyfobs and any other video door phone parts) Please send a message to me.
