Cam-Vox 72 Internal Compact 1080P HD DVR – 9 Hours Continuous HD Video Recording and upto 25 Days Standby Battery
Includes 128GB Class 10 SD Card and OTG Adapter – Review footage through any Computer, Tablet or Phone
- 9 Hours Continuous HD Video Recording
- 25 Days Standby Battery
- Motion Activated – Detects motion through Glass

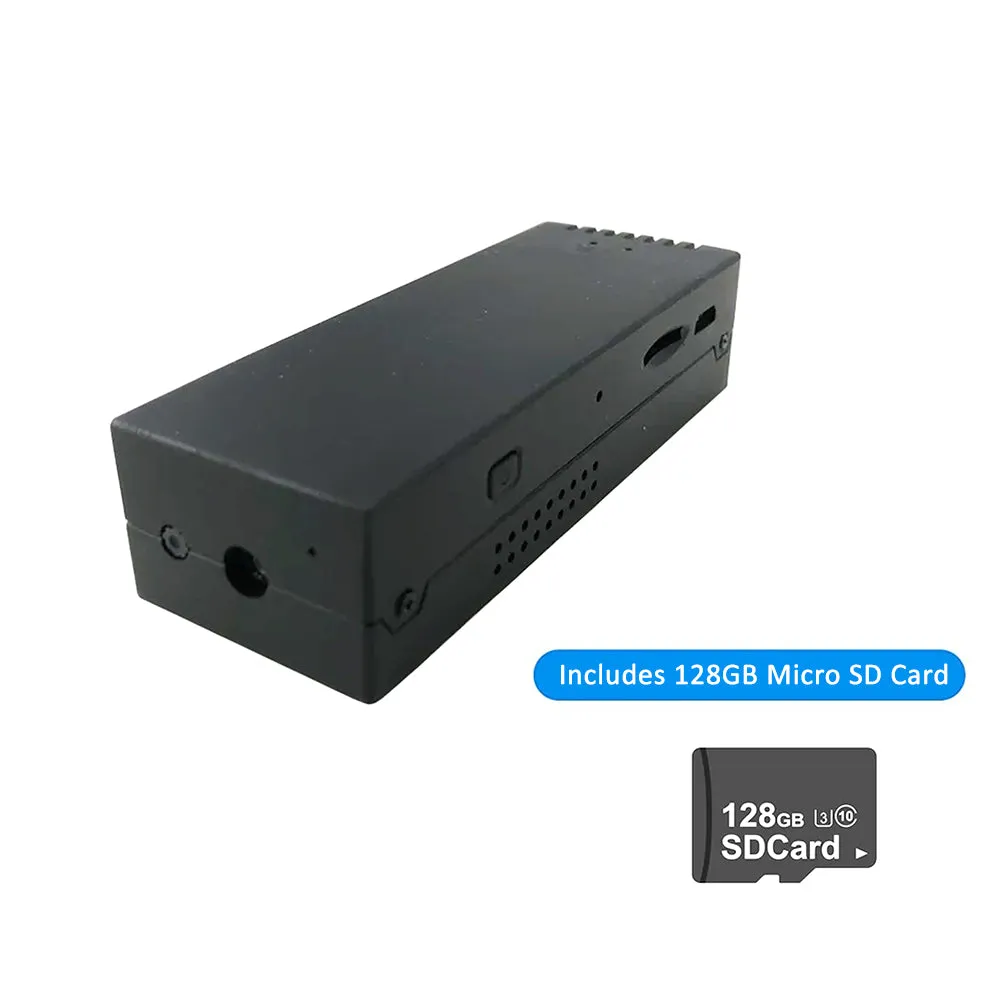

- 128GB Class 10 SD Card Included
- Records with or without Sound
- HD 1080P Compact Portable Digital Video Recorder
- Time & Date Stamping – Optional
- Flip Detection – Automatic Orientation adjustment

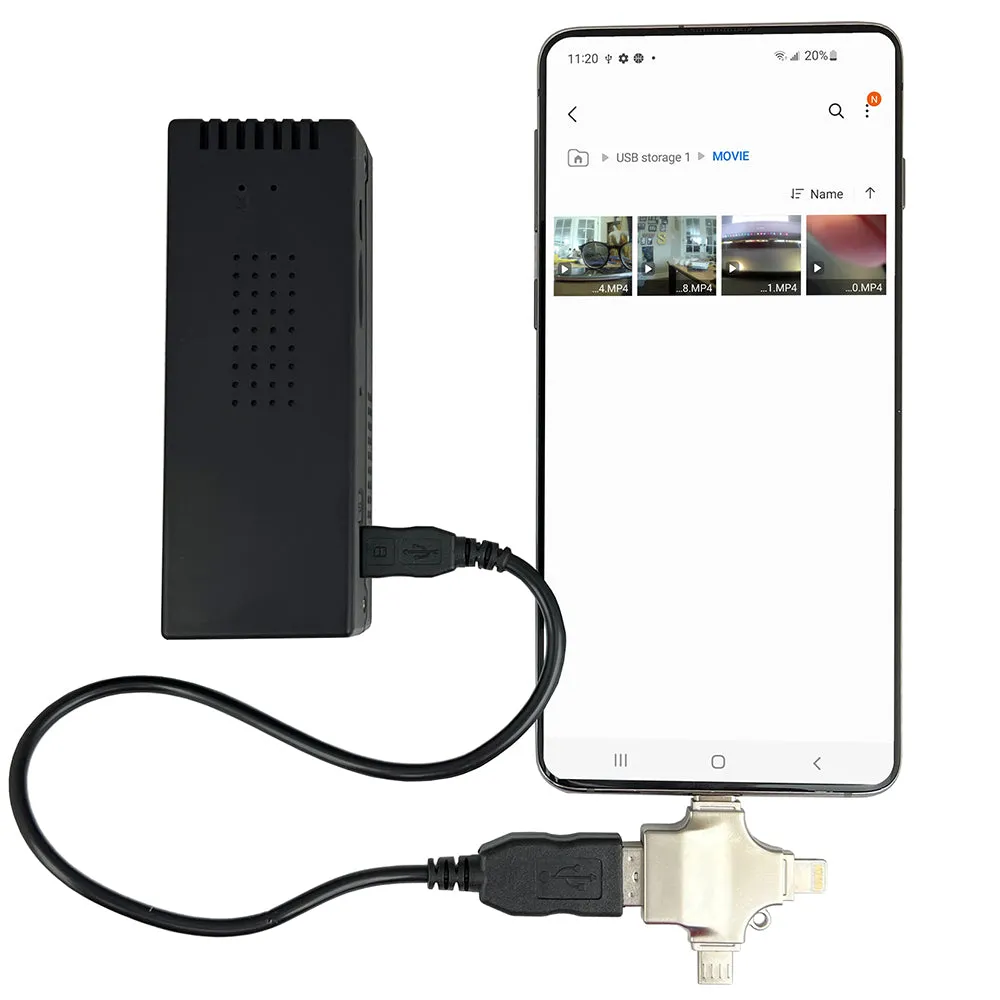

- OTG Support to View Videos on Phones or Tablets
Cam-Vox 72-i (CV72-i) is a compact, portable DVR ideal for Investigators and end users who need a HD Professional Video Recording solution with superb battery performance.

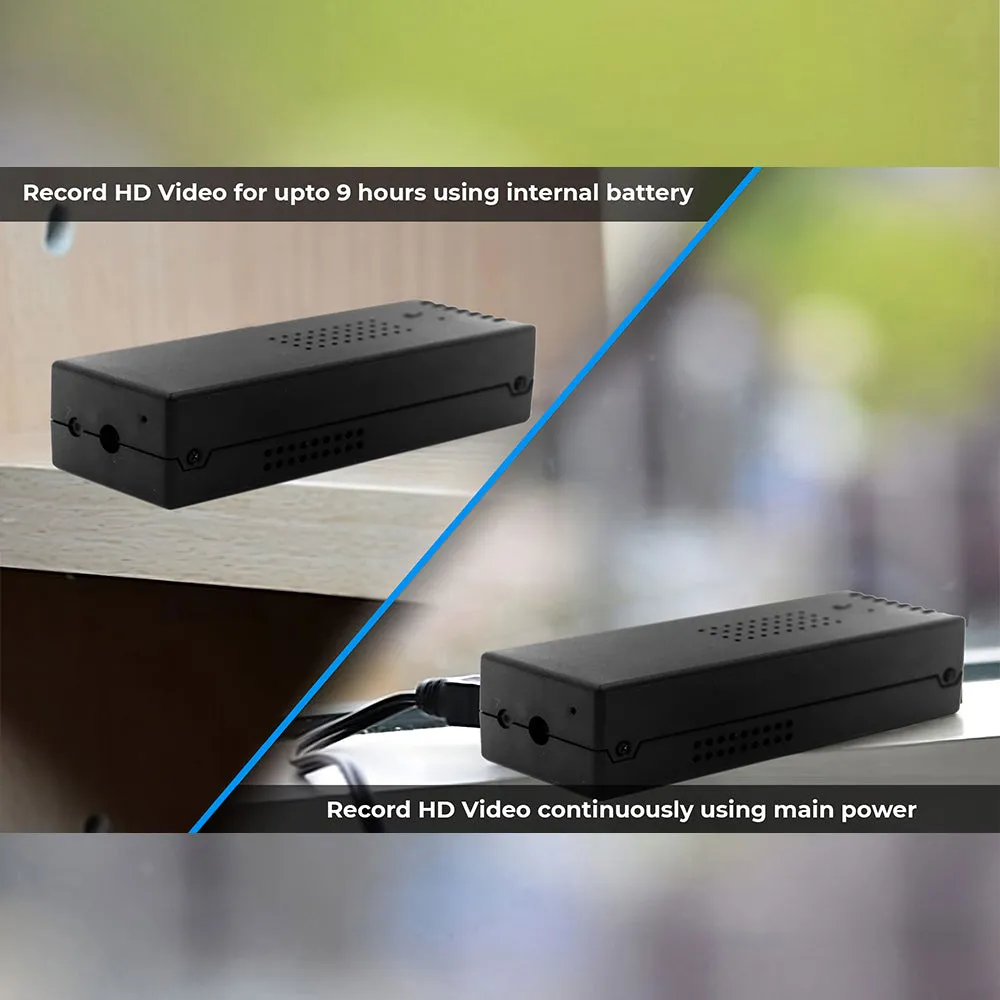

Records up to 9 hours continuously from one full charge or up to 25 Days Motion Trigger in Standby Mode. Industry leading performance with a range of enhanced features.
Users can configure the device using the special apps for Windows and Mac Computers.
Local P2P WiFi Preview – Connect locally to the device to view live footage or review video files. Connect via OTG or using App for iPhone or Android for Local P2P Preview.
Configure Time and Date Stamping and optional Audio capture – Users can select whether to apply a time stamp and adjust the Audio Mic to record sound or turn off sound.
Motion Detection through Glass – All Cam Vox systems can detect motion through glass, including a car windshield.
Low Light Camera – Camera is ideal for use in low light conditions such as a garage or a parking lot.
Cyclic Recording – Overwrites old files to continue recording.

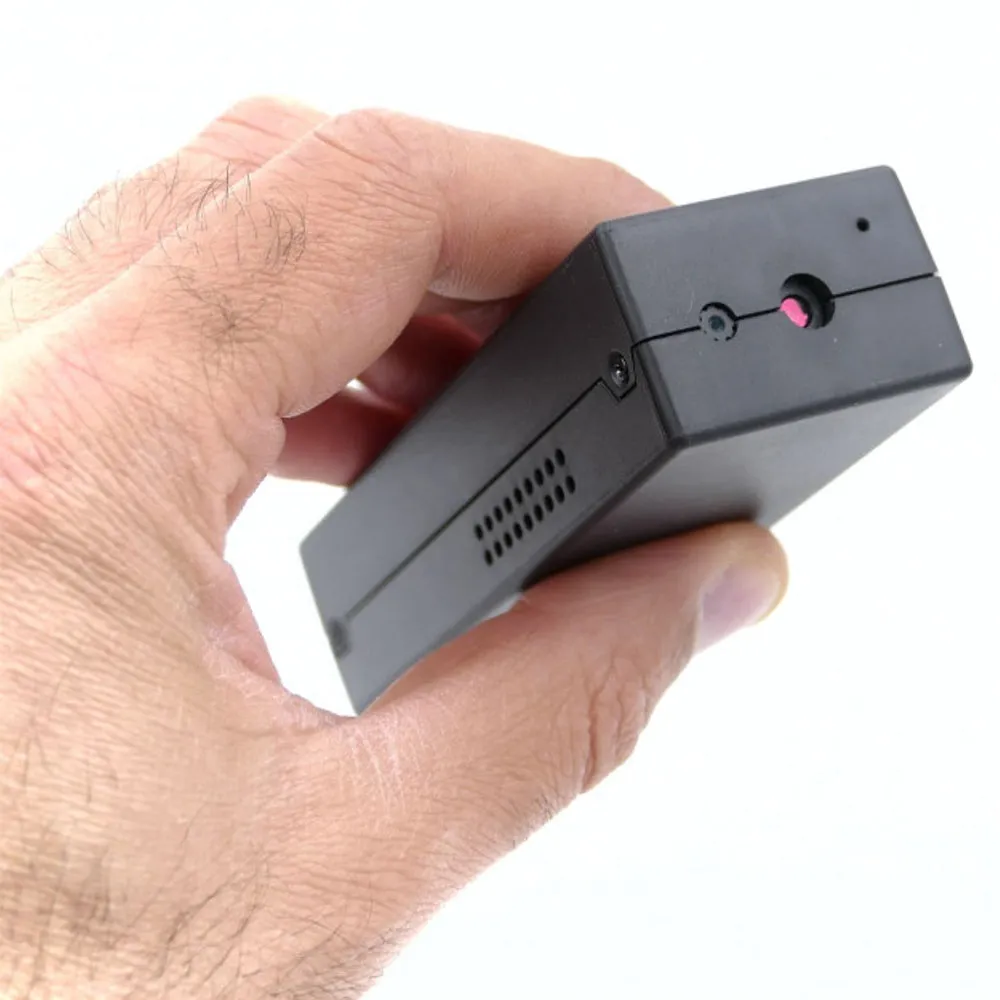

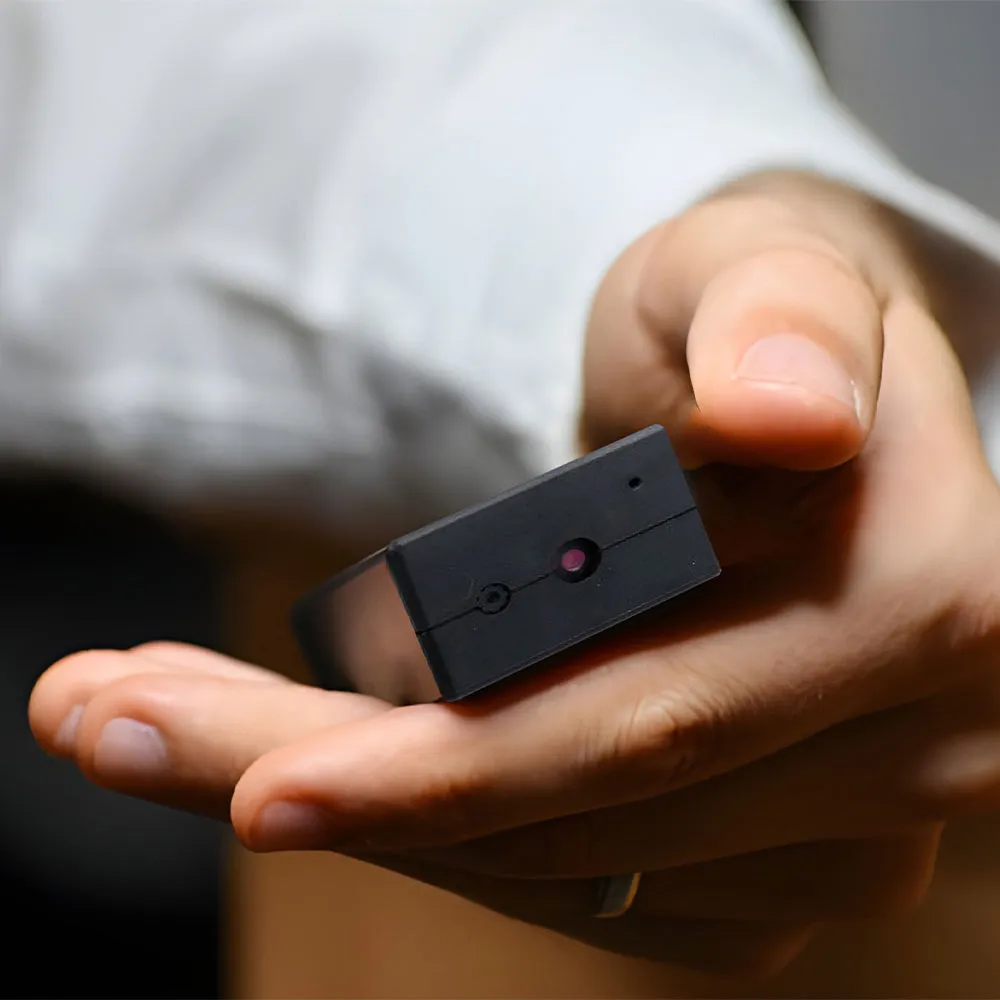

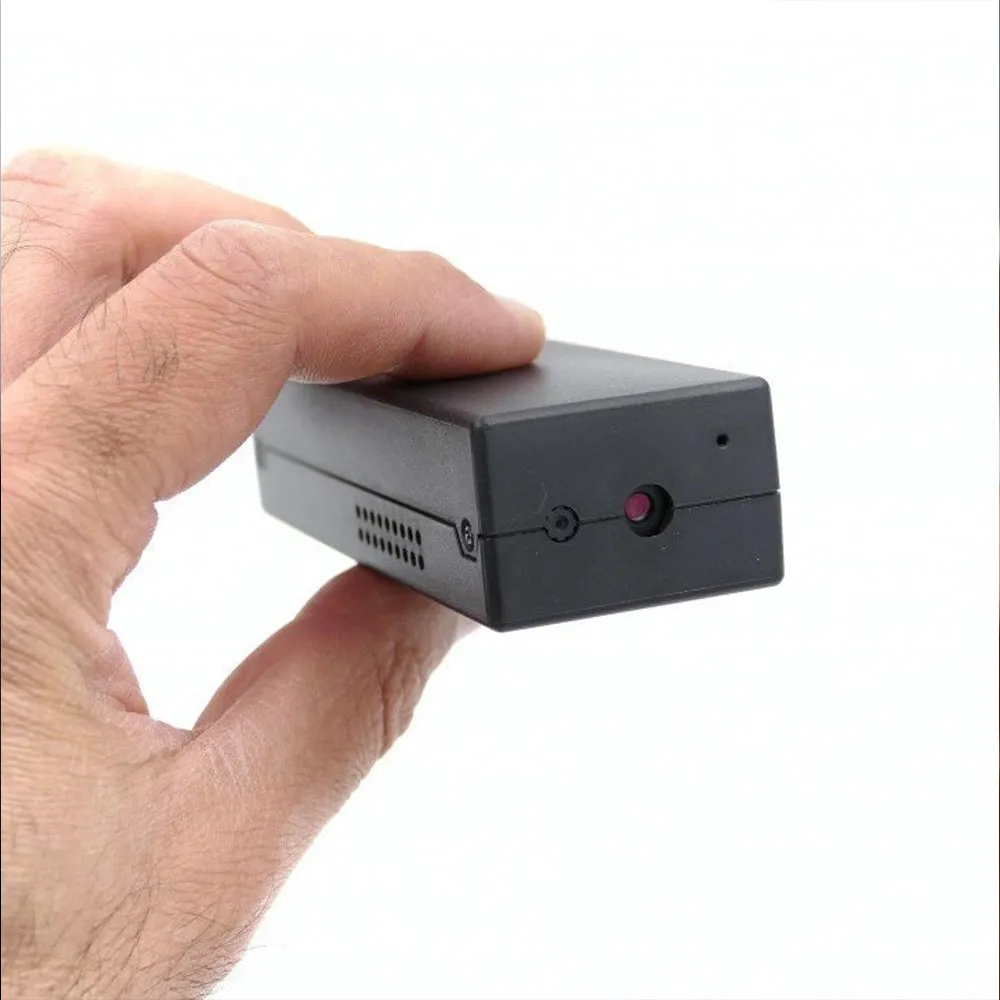

Compact and Lightweight design – Very easy to conceal out of sight, tiny form factor. Measuring just 3.8″ x 1.5″ x 1 inches.
Built in Microphone with superb Audio capture quality.
Perfect for deploying where wired security cameras cannot be used.
Configuration Software
Windows App:
Mac App:
Configure the Following Settings:
- Video Quality
- Frame Rate
- Lighting Condition (indoor/outdoor)
- Camera Orientation
- Timestamp
- Circular Recording
- Microphone (on/0ff)
- LED Indicator (on/off)
- Power Saving (Always On/Max Battery Life)
- File Length in Minutes
Specifications
| Storage temperature | 0 to 45degC (32 to 113degF) |
| Operating temperature | 0 to 45degC (32 to 113degF) |
| Size | 9.7 x 3.7 x 2.5 cm (3.8″ x 1.5″ x 1″) |
| Battery | 2400mAh 3.7V Li-ion battery |
| Adapter | 5V, 1000mA DC adapter (not included in package) |
| Current consumption | 240mA |
| Recording time | max 9 hours (with fully charged battery) |
| Standby time | max 25 days (in motion trigger max battery mode with fully charged battery) |
| Motion detection range | 4 to 7 meters (13 to 23 ft) |
| Sensor sensitivity | 4600mV / Lux – sec |
| Sensor viewing angle | 72deg |
| Microphone | speech grade |
| Memory card supported | max microSD card – 128GB SD Card included |
| Memory usage | 3GB / hour (video quality high) 2GB / hour (video quality medium) 1.5GB / hour (video quality low) |
| Video recording resolution | Full HD 1080p (1920 x 1080) |
| Video compression | mp4 |
| Voice recording | 32kSps, 32bit per sample |
| Voice compression | AAC |
| File format | mp4 |
| USB | Mass storage device |
| OS supported | Windows, Mac OS, iOS, Android |
Cam Vox 72i is produced with professional users at the forefront of the products design and performance.
Ideal for Investigations and very useful for Vehicle based surveillance operations, the low light Camera can perform very well in low light conditions, coupled with the ability to detect motion through glass, makes the DVR very useful for vehicle-based surveillance where light conditions may not be optimal.
The Tiny form factor of this device enables users to discreetly position the device to record without anyone noticing, the powerful battery ensures users can record for 9 hours continuously or upto 25 days in Trigger motion standby Mode.
The Cam-Vox solutions breakthrough technology usage is the reason why the Cam-Vox systems have such strong battery performance, engineers have designed the unit for long term use and achieved performance using the following technical adjustments: Sensor operates through Pixel Change detection which operates on low power to capture image which then runs through a Motion detection algorithm on a low power MCU.
The total current consumption is 3.6mA. With the 2400mAh battery in Cam Vox Systems, producing a Trigger Motion standby for upto 25 days.
Important to note:
Performance of the battery is based on usage, below is an example of the performance stats based on usage:
If Cam-Vox has been in standby mode for 12.5 days using its own internal battery, the continuous recording time on the device without a recharge would only be for max 4.5 hours, as half of the internal battery would have been
consumed during the standby time of 12.5 days prior to recording.
Configuration Information:
Cam Vox systems are supplied with free software which can be used on both Windows or Mac computers to configure the devices settings:
Users can configure a range of settings, detailed below.
- Synchronize: Date and Time
- Video Quality: High, Medium, Low
- Brightness conditions: 50Hz, 60Hz,
- Orientation: Normal, Downward
- Date and Time Stamping: On, Off
- Cyclic Recording: On / Off
- Video Recording Time: 10, 15, 20 minutes
- Microphone: On / Off
- Visible LED recording indicator: On / Off
- Motion Detection Sensitivity: High, Medium, Low, Disabled
- Power Options: Normal Use / Low Power Consumption
