Note:

the electronic lock is NC,it means this lock is open without tension, and locked with power. When press Unlock key, the lock is open. (pls must see this before ordering.)

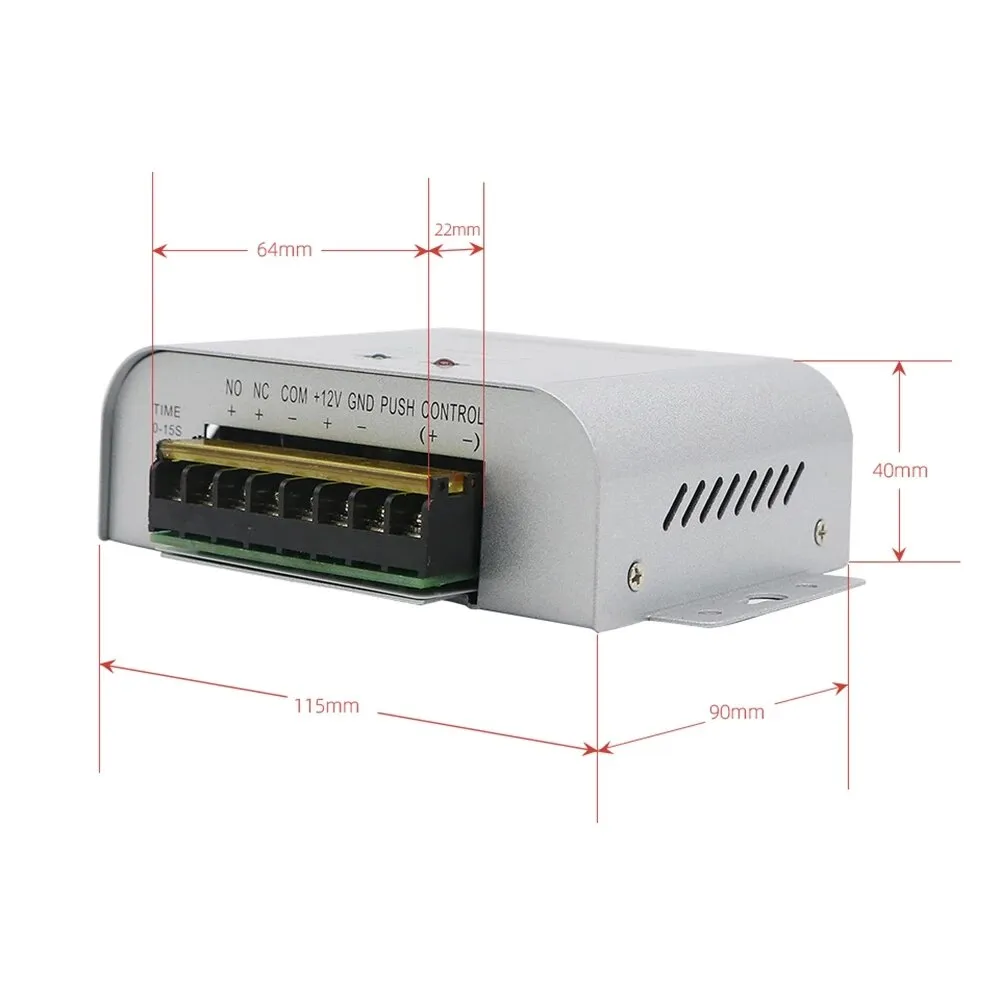

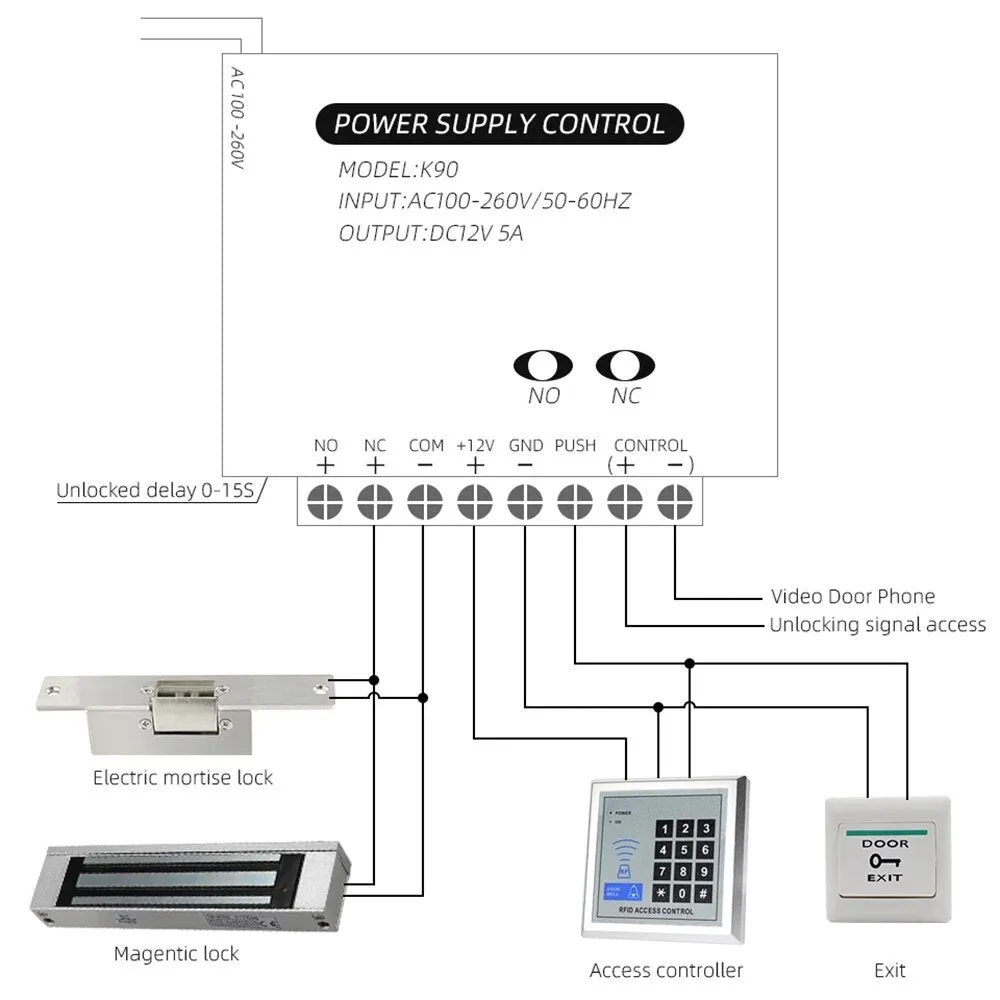

【Power Supply Control】

* input voltage is AC 100-260V,and the frequency is 50-60HZ * high low pressure,1500VAC/1 minutes do not break * adjustable output voltage DC11.5V-13.5V(for wiring distance,to make the lock does not work ,then you can take the high voltage) * output current ripple voltage:5A; upp=50mV * Cotrol is a group of active signal input(DC5-24V) and internal isolation ,and can simultaneously connect multiple access control controllers and building intercom

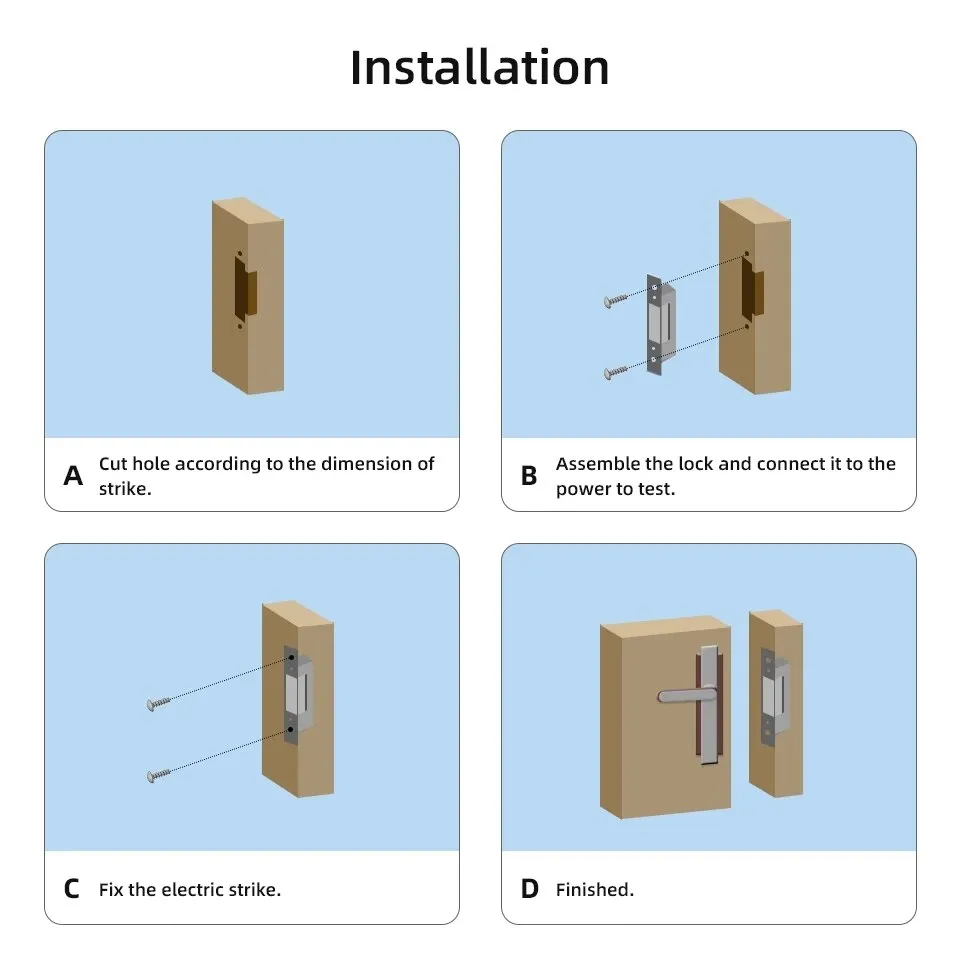

【Easy installation and Product Benefits】

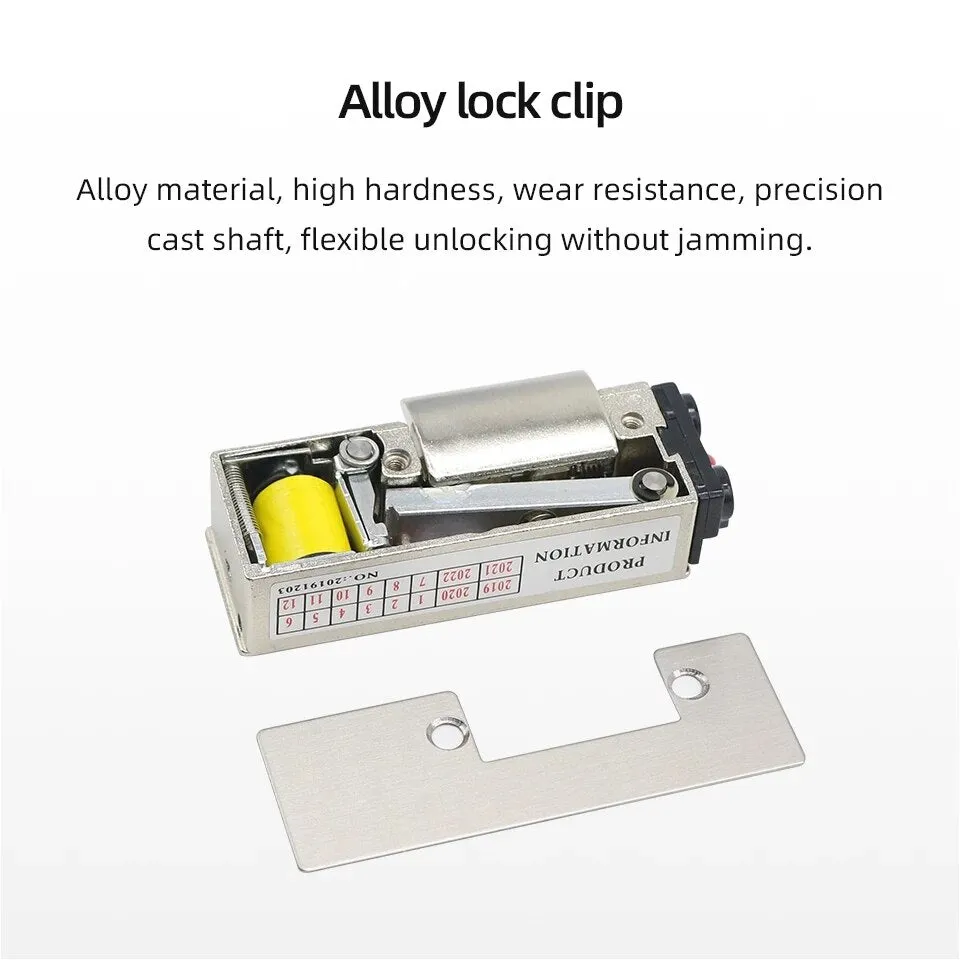

embedded and easy installation,beautiful appearance. The electromagnetic part of the selection of high-quality magnetic materials and built special treatment, long hours does not produce residual magnetism to ensure normal use

【Multiple scope use】

This lock applies to office buildings,wooden doors,stainless steel doors, fire doors,residential Entrance doors,Intelligent electric cabinet,storage cabinet and anode mechanical lock or ball-type supporting the use of locks

【Working with Video Door phone】

The lock supports AnjielaSmart Doorbell intercom system,can protect and manage your home smartly
