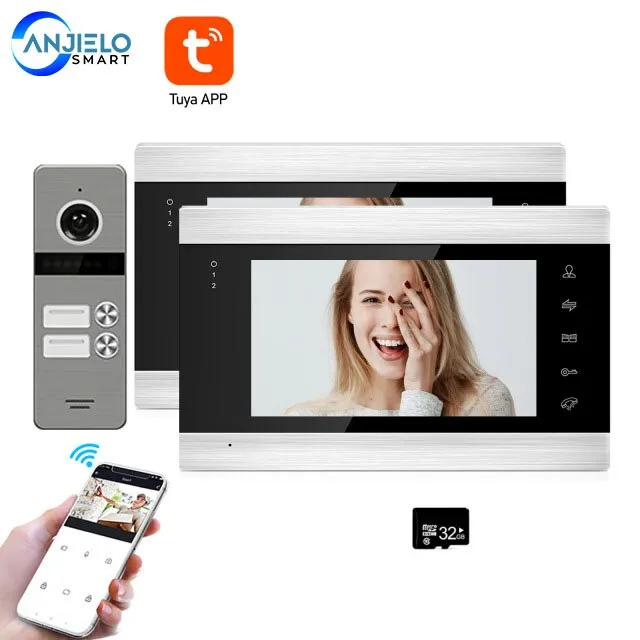

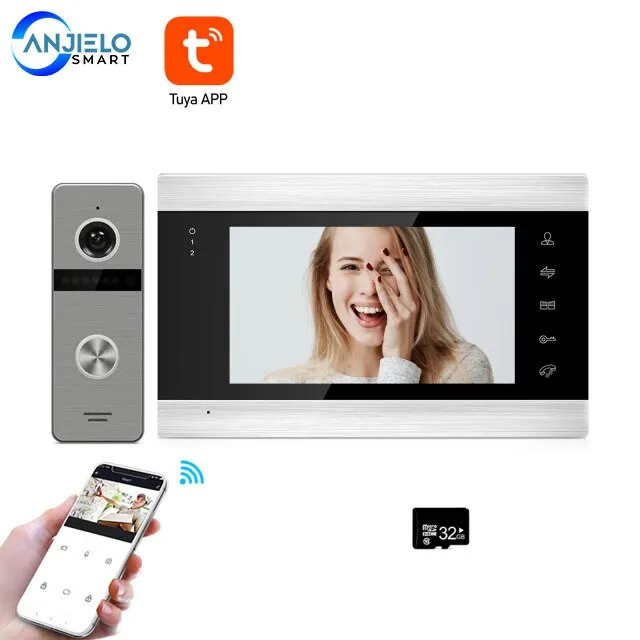

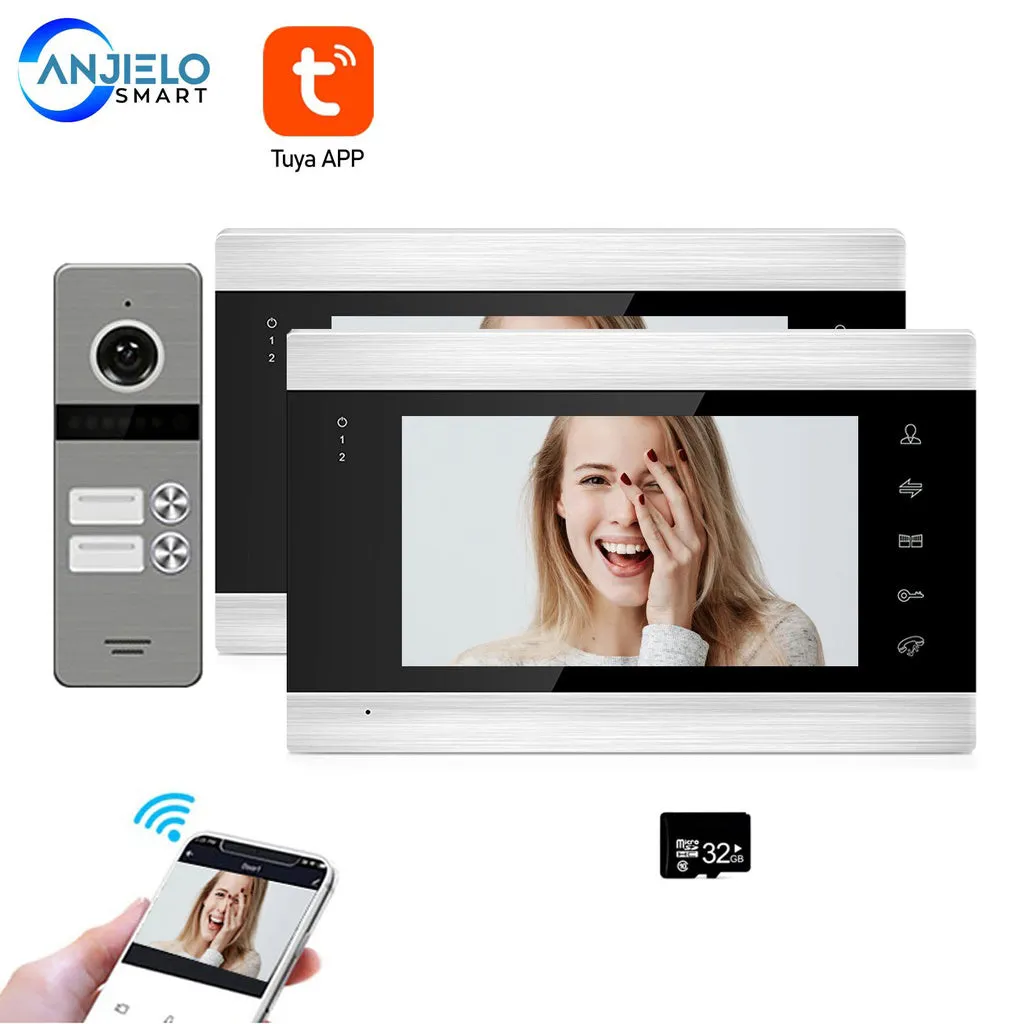

WiFi Smart IP Video Intercom System
This is a video intercom with a wifi function that supports working with mobile phones, when visitors press the doorbell, your phone will receive the APP notification, which means you can use the app to open the door, talk with visitors, watch videos,s and so on, when visitor press the doorbell, your phone will receive the APP notification.
Indoor Monitor:
♦ Resolution:1024(H)*3(RGB)*600(V)
♦ Calling Mode: Two-way Intercom
♦ Unlock: Monitor, smartphone, and tablet unlock
♦ Memory: Micro SD Card (not included,64GB max.)
♦ Network: WIFI/RJ45 port
♦ Power Supply: External power DC12V
♦ Installation Way: Surface Mounting
♦ Motion Detection: YES
♦ System : Support 6 Indoor Monitor 2 Call Panel 2 Camera
♦ Language: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German
♦ 7 inch LCD HD screen, the resolution is 1024*600, this kit comes with 1080P/1.0MP HD outdoor camera. Clearer viewing.
♦ Customize ringtone and wallpaper.
♦ Point to point transfer call to any indoor monitor.
♦ Support play HD movie by indoor monitor.
♦ Maximum support connect with 2 outdoor call panels AHD 2 cameras 6 monitors in one system.
♦ Compatible with most models of CVBS or AHD doorbell, max 960P/1.3MP doorbell, and camera input.
♦ Unlock door function.
♦ Motion detection without the extra device (controlled by software).
♦ Call Panel and monitor volume could be adjusted.
♦ IR LED supply you with clear night vision.
♦ Support Tuya smart / Smart Life APP remote control the door, view, and record.
Excellent Performance
♦7" TFT Display, Plastic Case
♦Touch Button, MP4 Player, voice message supported
♦CVBS/AHD1.3MP input
♦Room to Room Intercom
♦Door Answering, Monitoring, And Unlocking
♦Adjustable Color, Brightness, and volume
♦Support External Max.32GB SD Card.
♦Customize Ringtone and wallpaper
Clock & Date Mode
The latest software is the monitor standby time. If you did not operate the monitor for 1 minute and the time will not be displayed on the monitor. it can protect the life of the screen.

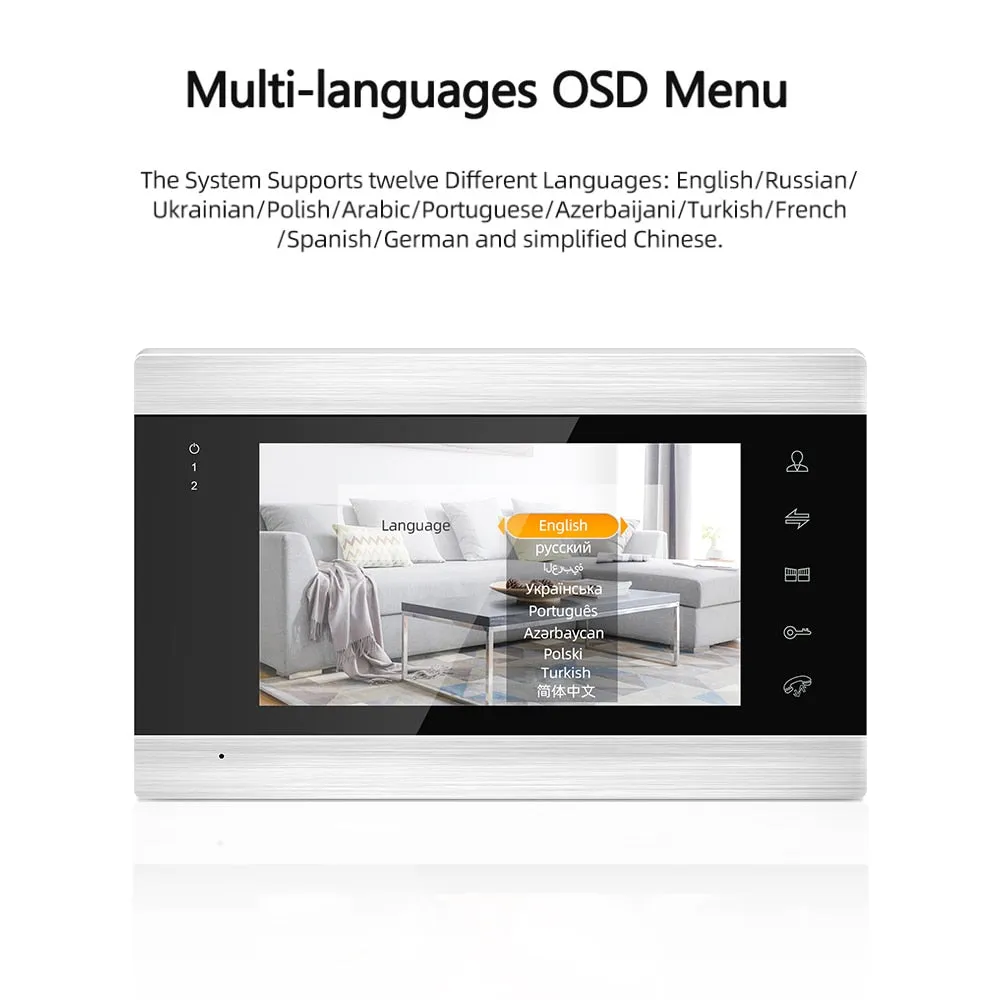

Multi-languages OSD Menu
The System Supports twelve Different Languages: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German, and simplified Chinese.

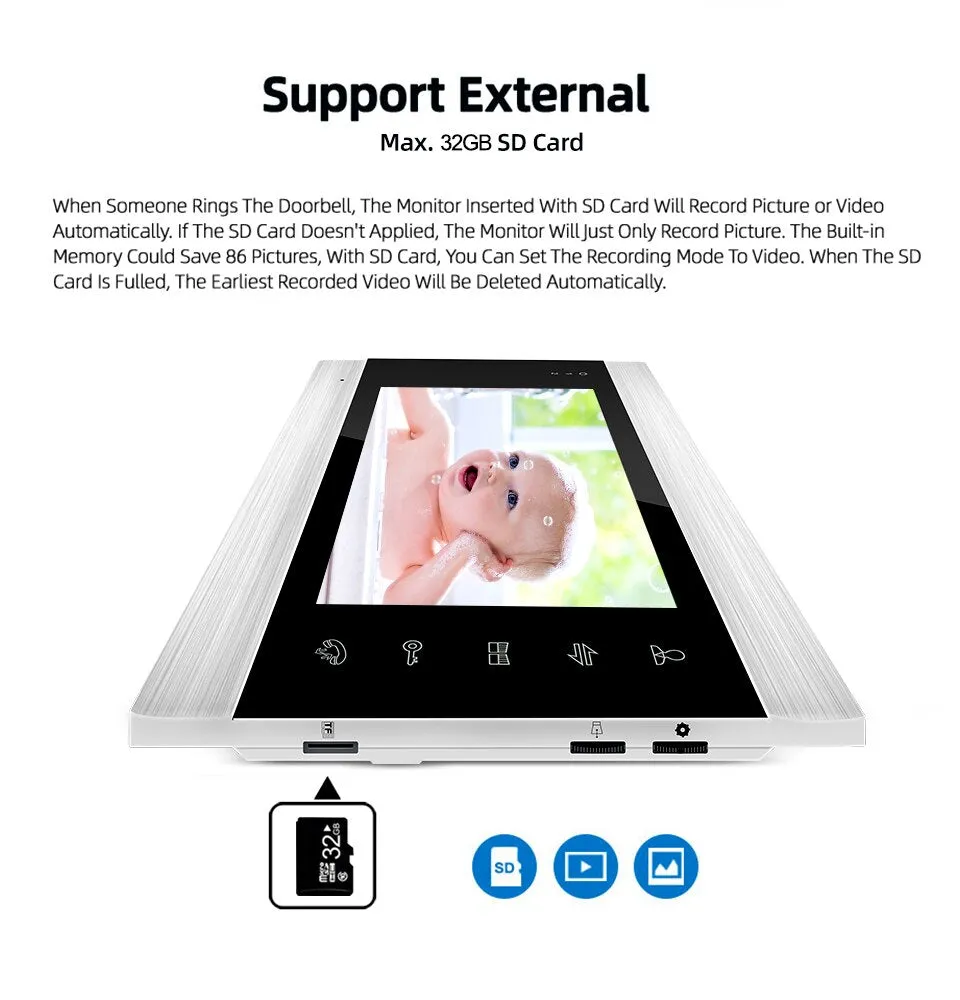

Video or Picture Record, SD Card Supported (Not Included)
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Apply, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

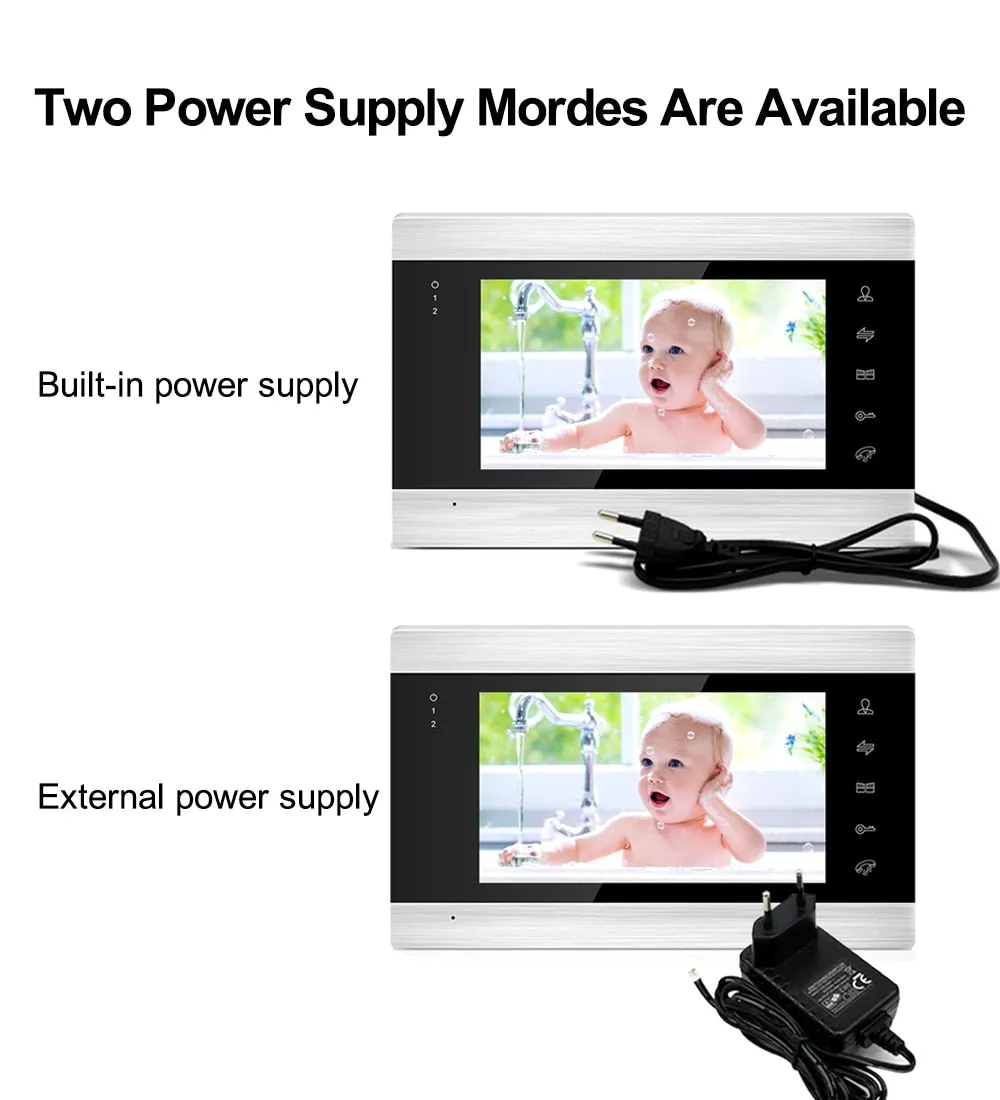

Built-in power supply and external power supply are optional
Outdoor Doorbell:
♦Camera Sensor:1080P
♦View Angle:110º
♦Power Supply: Supplied from indoor monitor
♦Material: Aluminum alloy panel
♦Waterproof: IP65 Weatherproof
♦Istallation: Surface mount
1080P/1.0MP High-Resolution Camera With IR Leds, View More Clearly.
1080P High-Resolution HD CMOS, See Sharper And More Details Than CVBS 960P or 1200TVL cameras. With IR LEDs, you can see a clear picture even at night without lights.
Wide Angle 110 Degree
IR LED Offset Lighting Can Obtain Better Evening Viewing
It Helps You Identify The Visitors Even In The Dark Night.

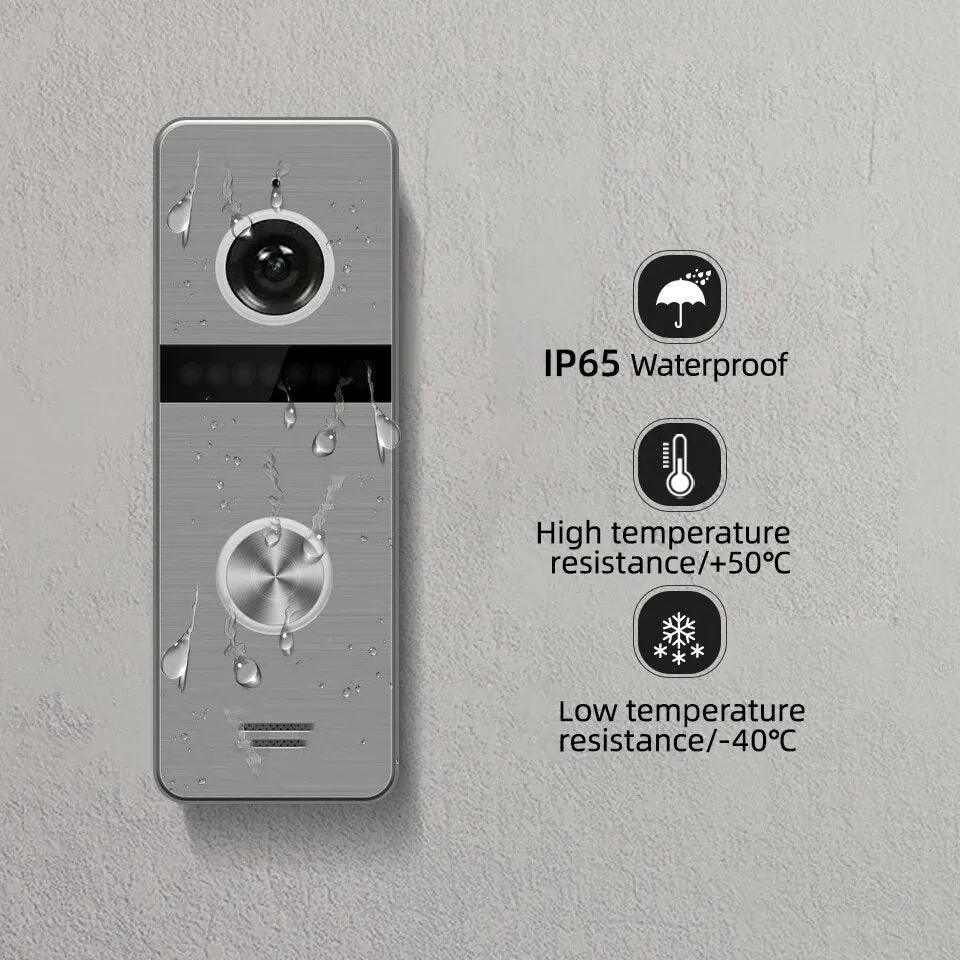

IP65 Waterproof, Anti-thunderstorm Design
The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.
Fashionable Appearance
♦1080P HD Camera
♦3pcs 940 Nanometer IR LEDs For Night Vision
♦Adjustable Intercom Volume
♦Dual-way Intercom
♦IR Sensor, Turn On/off IR LEDs Automatically
♦Easy To Install And DIY Installation
♦Rust-proof Aluminium Alloy Anti Vandal Panel
♦IP65 Weatherproof
App Notification Push:
With the latest technology, when visitors press the doorbell, your phone will receive the APP notification, you can see, hear and speak to anyone at your door, even remote unlock via your smartphone everywhere, No matter where you are, you can remotely access the camera to see live streaming and stay connected.
Never Miss a Visitor
This IP video door phone system lets you answer your door by smartphone from anywhere.
Handsfree Dual-way Intercom
Communication between the indoor monitor and the outdoor camera is supported. Let you know easily what the visitor is talking about. When somebody calls outdoor, your monitor and smartphone will ring at the same time.
Dual-way Intercom, Call Transfer Among Monitors
This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera But Also Supports Communication Between Monitor And Monitor.
Packing List
A-Type
1x Indoor Monitor
1x Doorbell
1x Power Adapter
5x 200mm 4 Pin Connector
2x Guarantee Card
2x English User Manual
1x Outdoor Call Panel
1x 200mm 2 Pin Connector
2x Screw Bag
2x Qualified Certificate
1x 32G Memory card
B-Type
2x Indoor Monitor
1x Doorbell
2x Power Adapter
5x 200mm 4 Pin Connector
2x Guarantee Card
2x English User Manual
1x Outdoor Call Panel
1x 200mm 2 Pin Connector
2x Screw Bag
2x Qualified Certificate
1x 32G Memory card
Tips:
There are 4 types of power adapters, We will send the applicable power adapter according to your country, if you have a special order, please contact us as free.

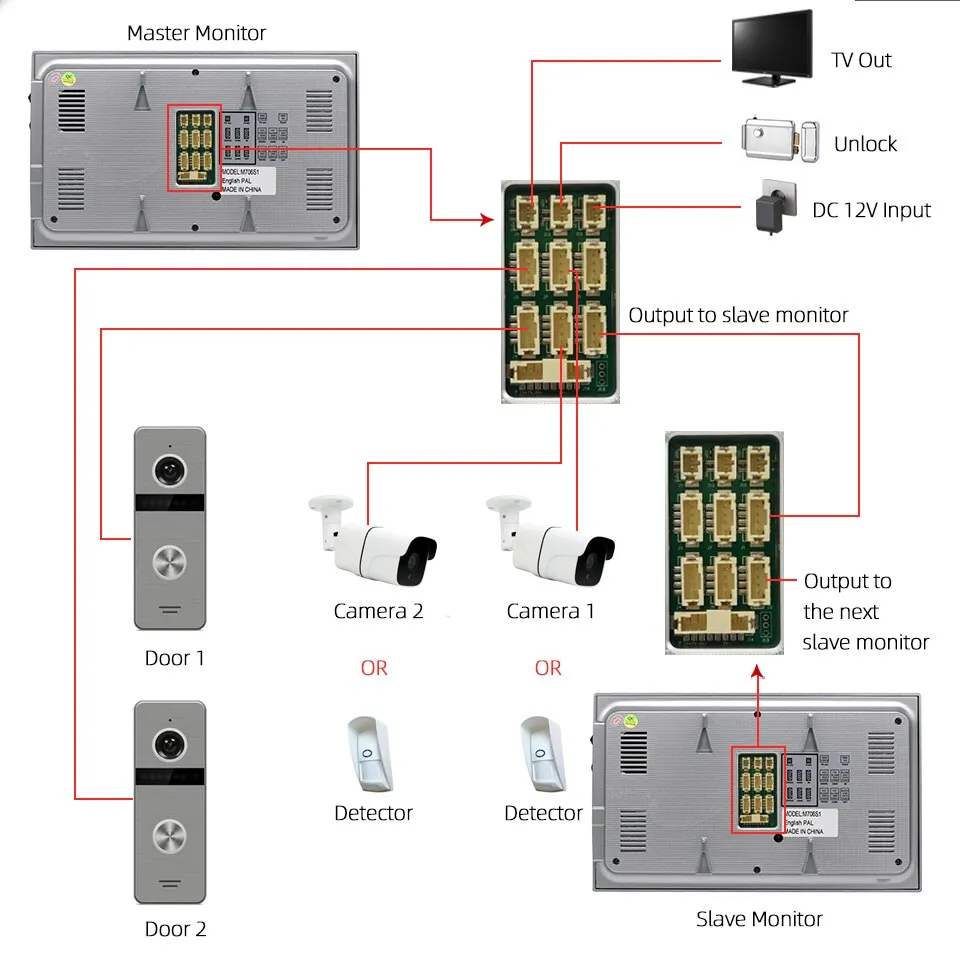

System Connection Wiring Diagram
Maximum support connects with 2 outdoor call panels analog 2 cameras(or PIR detectors) 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).
